XP POWER VFL05 series AC-DC power adapter

Product Overview

Product Name: VFL05 Series Wall Mounted AC-DC Power Adapter

Core positioning: To provide a universal, efficient, and adaptable external power supply for low-power electronic devices, balancing global grid compatibility and multi scenario interface requirements

Core advantages:

Global compatibility: 90-264VAC wide input covering 110V/220V power grid, four types of plugs suitable for different regions

Flexible interface: Supports four output interfaces: USB A, Mini USB B, Micro USB B, and DC Jack, suitable for different devices

High energy efficiency and low power consumption: compliant with Level VI energy efficiency standards, no-load power consumption ≤ 75mW, energy-saving and environmentally friendly

Physical specifications:

Weight: 80g (0.28lb)

Output cable length: 1500mm (59.0 inches)

Cable specification: VW-1 80 ° C 300V, 24 AWG

Size: Due to slight differences in plug types, the typical size is 55.1 × 35.49 × 24.1mm (taking US plug as an example)

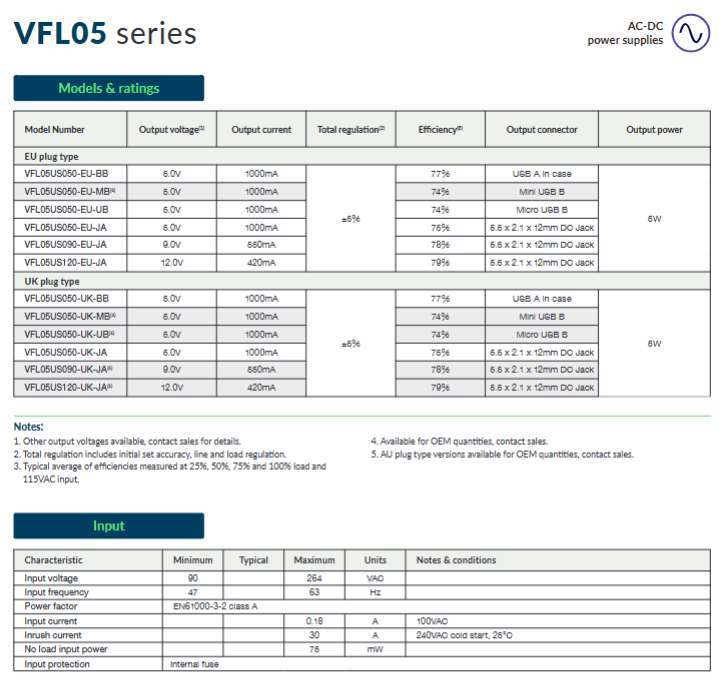

Model and Output Specification Table

Plug type, model, output voltage, output current, output interface, overall regulation efficiency

US VFL05US050-US-BB 5.0V 1000mA USB A in case ±5% 77%

US VFL05US050-US-MB 5.0V 1000mA Mini USB B ±5% 74%

US VFL05US050-US-UB 5.0V 1000mA Micro USB B ±5% 74%

US VFL05US050-US-JA 5.0V 1000mA 5.5×2.1×12mm DC Jack ±5% 75%

US VFL05US090-US-JA 9.0V 550mA 5.5×2.1×12mm DC Jack ±5% 78%

US VFL05US120-US-JA 12.0V 420mA 5.5×2.1×12mm DC Jack ±5% 79%

EU VFL05US050-EU-BB 5.0V 1000mA USB A in case ±5% 77%

EU VFL05US050-EU-MB 5.0V 1000mA Mini USB B ±5% 74%

EU VFL05US050-EU-UB 5.0V 1000mA Micro USB B ±5% 74%

EU VFL05US050-EU-JA 5.0V 1000mA 5.5×2.1×12mm DC Jack ±5% 75%

EU VFL05US090-EU-JA 9.0V 550mA 5.5×2.1×12mm DC Jack ±5% 78%

EU VFL05US120-EU-JA 12.0V 420mA 5.5×2.1×12mm DC Jack ±5% 79%

UK VFL05US050-UK-BB 5.0V 1000mA USB A in case ±5% 77%

UK VFL05US050-UK-MB 5.0V 1000mA Mini USB B ±5% 74%

UK VFL05US050-UK-UB 5.0V 1000mA Micro USB B ±5% 74%

UK VFL05US050-UK-JA 5.0V 1000mA 5.5×2.1×12mm DC Jack ±5% 75%

UK VFL05US090-UK-JA 9.0V 550mA 5.5×2.1×12mm DC Jack ±5% 78%

UK VFL05US120-UK-JA 12.0V 420mA 5.5×2.1×12mm DC Jack ±5% 79%

AU VFL05US050-AU-BB 5.0V 1000mA USB A in case ±5% 77%

AU VFL05US050-AU-MB 5.0V 1000mA Mini USB B ±5% 74%

AU VFL05US050-AU-UB 5.0V 1000mA Micro USB B ±5% 74%

AU VFL05US050-AU-JA 5.0V 1000mA 5.5×2.1×12mm DC Jack ±5% 75%

Note: The 9V and 12V models of EU/UK/AU plugs are only available for OEM bulk supply and require confirmation from sales.

Electrical parameter details

(1) Input parameters

Characteristic Minimum Value Typical Value Maximum Value Unit Remarks

Input voltage 90-264 VAC-

Input frequency 47-63 Hz-

Power factor – compliant with EN61000-3-2 Class A

Input current -0.18 A 100VAC input

Surge current -30 A 240VAC cold start, 25 ° C

No load input power -75 mW-

Input protection – built-in fuse

(2) Output parameters

Characteristic Minimum Value Typical Value Maximum Value Unit Remarks

Output voltage range 5-12 VDC differentiated by model

Minimum load – No minimum load requirement

Startup delay -4 seconds-

Start up time -50 ms-

Hold time 8– ms full load, 100VAC input

Total regulation -5% including initial setting accuracy, line regulation, and load regulation

Transient response -4% deviation 5V model 25% load step, other models 50% load step, restored to ± 1% within 500 µ s

Ripple and noise -200 mV pk pk 20MHz bandwidth, parallel 10 µ F electrolytic capacitor+0.1 µ F ceramic capacitor

Temperature coefficient -0.05-%/° C-

Short circuit protection – continuous hiccup mode, automatic recovery

(3) General and reliability parameters

Characteristic Minimum Value Typical Value Maximum Value Unit Remarks

Efficiency 74-79% by model, with an average load of 25%/50%/75%/100% under 115VAC input

Energy Efficiency Standard – Level VI (Level VII ready)

Input output isolation 3000– VAC-

Switching frequency 50-70 kHz, variable frequency

Mean Time Between Failures (MTBF) 100- khrs MIL-HDBK-217F standard, 25 ° C

Environment and Compliance

(1) Environmental adaptability

Minimum environmental conditions, typical values, maximum values, unit notes

Full load at working temperature 0-60 ° C and 50 ° C, reduced to 50% load at 60 ° C

Storage temperature -40-85 ° C-

Cooling method – natural convection —

Working humidity -95% RH non condensing

Impact – Drop to concrete from a height of 1 meter, 1 time on each of the 6 surfaces

Vibration -10-300Hz, 2g, 30 minutes per axis (15 minutes/scan)

(2) Compliance and Certification

Certification Type Standards/Directive Key Requirements

UL/cUL62368-1, EN61000-3-2, IEC62368-1 safety certification approved as Limited Power Source (LPS)

Regional certifications CCC (China), AU/NZ 62368.1 (Australia and New Zealand), CE, UKCA comply with corresponding regional regulations

EMC emissions EN55032, FCC Part 15 Subpart B Conducted/Radiated Level B, Harmonic Class A

EMC immunity EN61000-4 series, EN55035 ESD ± 4kV contact/± 8kV air, radiation immunity 3V/m
