XP POWER VFR05 series 5W wall mounted AC-DC power adapter

Product Overview

Product Name: VFR05 Series Wall Mounted AC-DC Power Adapter

Core positioning: To provide globally applicable and multi interface adaptable high-efficiency external power supplies for low-power electronic devices, solving the problem of plug adaptation for cross-border use

Core advantages:

Global universal: comes standard with replaceable US/UK/EU/AU plugs, no need for additional adapters, suitable for different regional power grids

Flexible interface: covering four mainstream interfaces: USB A, Mini USB B, Micro USB B, and DC Jack (5.5 × 2.1 × 12mm)

High energy efficiency and low power consumption: Complies with Level VI energy efficiency standards, supports Level VII upgrades, and has a no-load power consumption of ≤ 75mW

Physical specifications:

Body size: 37.0 × 55.1 × 42.9mm (1.45 “× 2.16” × 1.69 “)

Weight: 80g (0.28lb) (body only)

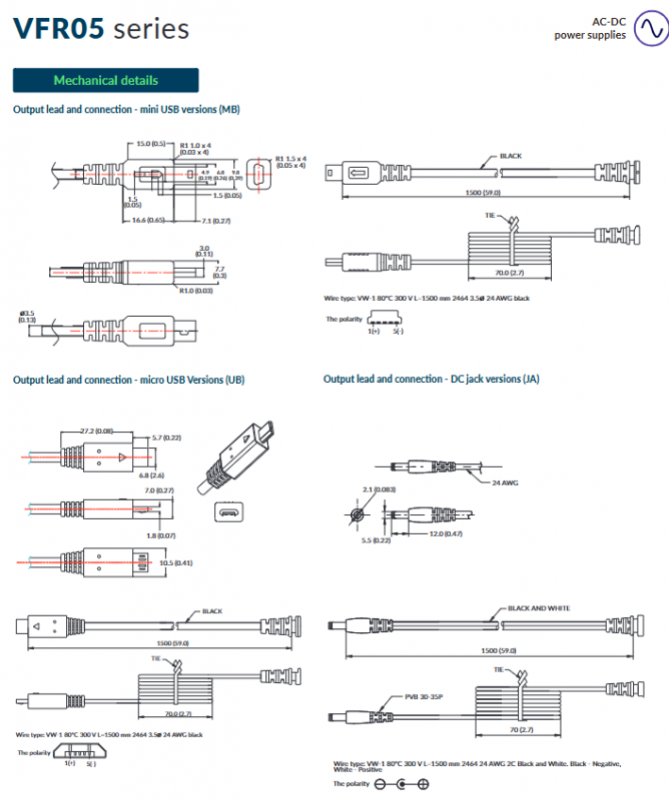

Output cable: Length 1500mm (59.0 inches), specifications VW-1 80 ° C 300V, 24 AWG

Model and Output Specification Table

Model Output Voltage Output Current Total Adjustment Efficiency Output Interface Output Power Remarks

VFR05US050-BB 5.0V 1000mA ±5% 77% USB A in case 5W –

VFR05US050-MB 5.0V 1000mA ± 5% 74% Mini USB B 5W only available for OEM bulk supply

VFR05US050-UB 5.0V 1000mA ±5% 74% Micro USB B 5W –

VFR05US050-JA 5.0V 1000mA ±5% 75% 5.5×2.1×12mm DC Jack 5W –

VFR05US090-JA 9.0V 550mA ±5% 78% 5.5×2.1×12mm DC Jack 5W –

VFR05US120-JA 12.0V 420mA ±5% 79% 5.5×2.1×12mm DC Jack 5W –

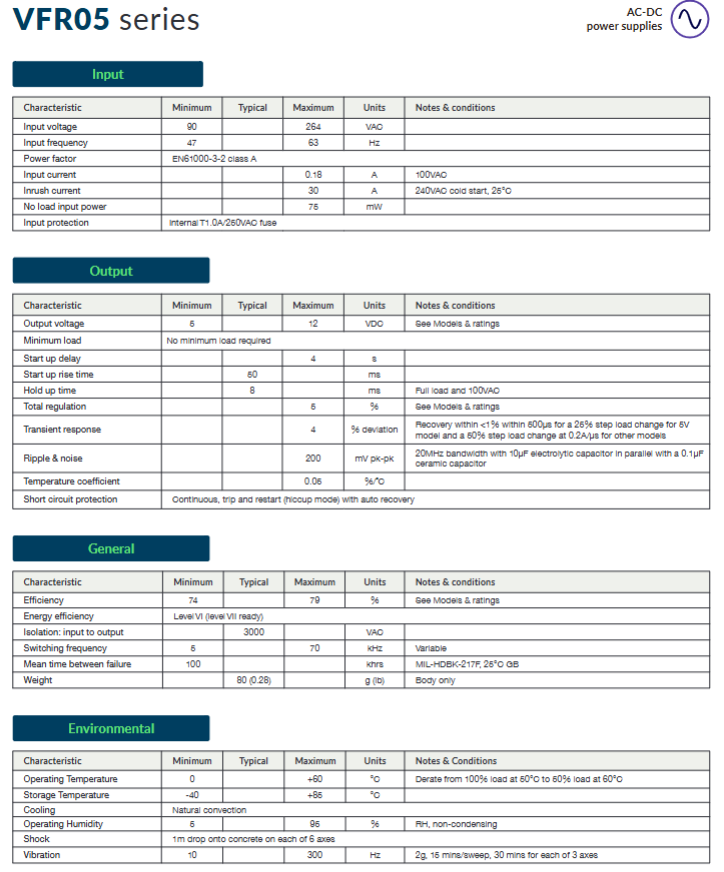

Electrical parameter details

(1) Input parameters

Characteristic Minimum Value Typical Value Maximum Value Unit Remarks

Input voltage 90-264 VAC covering the global 110V/220V power grid

Input frequency 47-63 Hz compatible with different regional power grid frequencies

Power factor – compliant with EN61000-3-2 Class A

Input current -0.18 A under 100VAC input conditions

Surge current -30 A 240VAC cold start, 25 ° C environment

No load input power -75 mW high energy efficiency design, low standby power consumption

Input protection – built-in T1.0A/250VAC fuse

(2) Output parameters

Characteristic Minimum Value Typical Value Maximum Value Unit Remarks

Output voltage range of 5-12 VDC differentiated by model to meet different equipment requirements

Minimum load – No minimum load requirement, suitable for low-power devices

Startup delay -4 seconds-

Start up time -50-ms-

Hold time -8ms full load, 100VAC input

Total regulation -5% including initial setting accuracy, line regulation, and load regulation

Transient response -4% deviation 5V model 25% load step, other models 50% load step, restored to ± 1% within 500 µ s

Ripple and noise -200 mV pk pk 20MHz bandwidth, requiring parallel measurement of 10 µ F electrolytic capacitor and 0.1 µ F ceramic capacitor

Temperature coefficient -0.05%/° C, high stability of output voltage

Short circuit protection – continuous hiccup mode, automatically restored after troubleshooting

(3) General and reliability parameters

Characteristic Minimum Value Typical Value Maximum Value Unit Remarks

Efficiency 74-79% under 115VAC input, average load efficiency of 25%/50%/75%/100%

Energy Efficiency Standard – Level VI – Supports Level VII Upgrade, Energy saving and Environmental Protection

Input output isolation -3000VAC ensures safe use

Switching frequency 50-70 kHz variable frequency design

Mean Time Between Failures (MTBF) 100- khrs MIL-HDBK-217F standard, 25 ° C environment

Environment and Compliance

(1) Environmental adaptability

Minimum environmental conditions, typical values, maximum values, unit notes

Full load at working temperature 0-60 ° C and 50 ° C, reduced to 50% load at 60 ° C

Storage temperature -40-85 ° C, suitable for extreme storage environments

Cooling method – natural convection – no additional cooling equipment required

Working humidity 5-95% RH non condensing, suitable for humid environments

Impact – Drop to concrete from a height of 1 meter, 1 time on each of the 6 surfaces

Vibration 10-300 Hz 2g acceleration, 30 minutes per axis (15 minutes/scan)

(2) Compliance and Certification

Key Explanation of Certification Type Standards

UL/cUL62368-1, EN61000-3-2, IEC62368-1 safety certification approved as Limited Power Source (LPS)

Regional certifications CCC (China), AU/NZ 62368.1 (Australia and New Zealand), CE (European Union), UKCA (United Kingdom) cover major global markets

EMC emissions EN55032, FCC Part 15 Subpart B conduction/radiation all reach Level B, harmonic class A

EMC immunity EN61000-4 series, EN55035 ESD ± 4kV contact/± 8kV air, radiation immunity 3V/m
