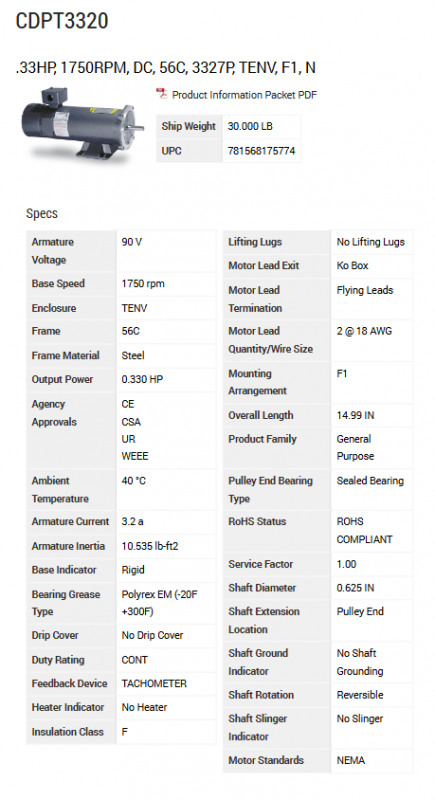

Baldor Reliability CDPT3320 DC Motor

1、 Product basic information
Specific parameters of category key information
Core identification model CDPT3320
Product series General Purpose
Product Code 33-2657Z102
Physical Attribute Framework Model 56C
Frame material: Steel
Protection type TENV (fully enclosed without ventilation)
Protection level IP44
Total length 14.99IN
Transport weight 30.000 LB
UPC code 781568175774
2、 Core technical parameters
(1) Electrical parameters
Armature voltage: 90V (rated)
Armature current: 3.2A (rated)
Insulation level: F level
Working system: Continuous operation (CONT)
Service coefficient: 1.00
Armature resistance: 2.164 Ω
Armature moment of inertia: 10.535 lb ft ²
Lead configuration: 2 wires @ 18 AWG (flying wire outlet, junction box outlet)
Feedback device: Tachometer
(2) Mechanical parameters
Base speed: 1750RPM
Shaft diameter: 0.625IN
Axis extension position: Pulley End
Axis rotation direction: Reversible
Bearing configuration: DE/ODE are both 6203 sealed bearings (Sealed Bearing)
Lubricating grease type: P olyrex EM (applicable temperature range -20F~+300F)
Installation method: F1 (rigid base, Rigid）
Carbon brush specification: BP5011T01 (2 pieces/set)
3、 Performance characteristics
(1) Load speed torque correspondence relationship (typical value, 90V armature voltage)
Load point armature current (A) Speed (RPM) Torque (N · m)
1 0.21~0.28 1783~1854 0
2 0.80~1.08 1709~1801 0.188~0.25
3 1.35~1.78 1682~1751 0.375~0.50
4 1.85~2.43 1650~1718 0.562~0.74
5 2.39~3.22 1611~1676 0.75~1.00
6 2.95~3.90 1565~1630 0.937~1.23
7 3.50~4.59 1534~1615 1.125~1.48
(2) Operating environment requirements
Ambient temperature: 40 ° C (maximum ambient temperature)
No Drip Cover, No Lifting Lugs, No Shaft Grounding, No Slinger
4、 Certification and Compliance
Institutional certifications: CE, CSA, UL, WEEE
Environmental compliance: RoHS Compliant
Execution standard: NEMA (National Electrical Manufacturers Association)
5、 Accessories and related documents
(1) List of Key Accessories
Accessory number, accessory name, quantity
BP5011T01SP carbon brush (33P, 90V) 1 set (including 2)
BP5012A04SP DC motor brush spring 1 piece
33RK5004SP rocker arm 1 piece
MN416A01 installation and maintenance label (without wires) 1 piece
LB1624 comprehensive warning label (ISO/ANSI diagram) 1 piece
(2) Available Documents
Dimension Sheet
Connection Diagram
2D/3D CAD files
Product Information Packet
