SCHNEIDER TeSys D Green series AC/DC universal contactor

Schneider TeSys D Green series AC/DC universal contactors cover current levels of 9-150A, are compatible with 0.06-250kW motors and AC-1/AC-3 loads, and have advantages such as low energy consumption (BBE coil DC 24V only 0.5W), direct PLC control, anti vibration and anti contact vibration. They are compatible with various auxiliary contacts, delay modules and other accessories, support 35mm DIN rail installation, and have passed environmental certifications such as RoHS/REACH and UL/CSA/IEC international standards. They can be used with GV2/GV3 circuit breakers and thermal overload relays to form motor starters, which are widely used in industrial equipment control scenarios.

Product Overview

(1) Core positioning and basic parameters

Category key information details explanation

Product positioning: AC/DC universal contactor replaces traditional TeSys D, compatible with AC/DC control power supply, suitable for OEM and industrial control

Current level: 3-pole: 9-150A; 4-pole: 60-80A, suitable for motors up to 0.06-250kW at AC-3 400V

Control voltage AC 24-415V, DC 24-500V Coil code: BNE/EHE/KUE/BBE (low energy consumption)

Installation method: 35mm DIN rail, screw fixed single width 45mm, multiple parallel busbars can be configured

The protection level of the IP20 terminal block should be equipped with a protective cover (LAD96570) up to IP20

(2) Core advantages

Low energy consumption design: BBE coil DC 24V suction power consumption of 11W, maintenance power consumption of 0.5W, reducing long-term operating costs

PLC direct drive: ≤ 80A contactor can be driven through 24V/500mA static output without intermediate relay

Stable operation: Continuous monitoring of coil current, fixed opening and closing time (closing 50 ± 5ms, opening 25 ± 5ms), anti vibration and anti contact vibration

Environmental compliance: RoHS, REACH certification, Green Premium label, publicly available carbon footprint and recyclable data

Multi standard compatibility: compliant with international standards such as IEC/EN 60947-4-1, UL 508, CSA C22.2 No.14, etc

Product series and selection

(1) Main product model

Product type, model range, rated current, adaptive power (400V AC-3), weight (kg)

3-pole conventional contactor LC1D09-D80A 9-80A 4-37kW 0.368-1.002

3-pole reversible contactor LC2D09-D80A 9-80A 4-37kW 0.783-2.174

4-pole conventional contactor LC1DT60A-DT80A 60-80A 37-45kW 1.230-1.290

4-pole reversible contactor LC2DT60A-DT80A 60-80A 37-45kW 2.460-2.580

(2) Selection of motor starter combination

Starter type, component adaptation, power range, circuit breaker model, contactor model

Built in overload protection circuit breaker+contactor 0.06-110kW GV2ME02-GV3P65 LC1D09-LC1D65A

Separate protection circuit breaker+thermal overload relay+contactor 0.06-250kW GV2LE03-NSX630 LC1D09-LC1F500

Detailed explanation of the attachment system

(1) Auxiliary contact module

Type, Model, Series, Contact Configuration, Applicable Scenarios

Instantaneous contact LADN series 1NO/1NC, 2NO/2NC and other conventional status indicators

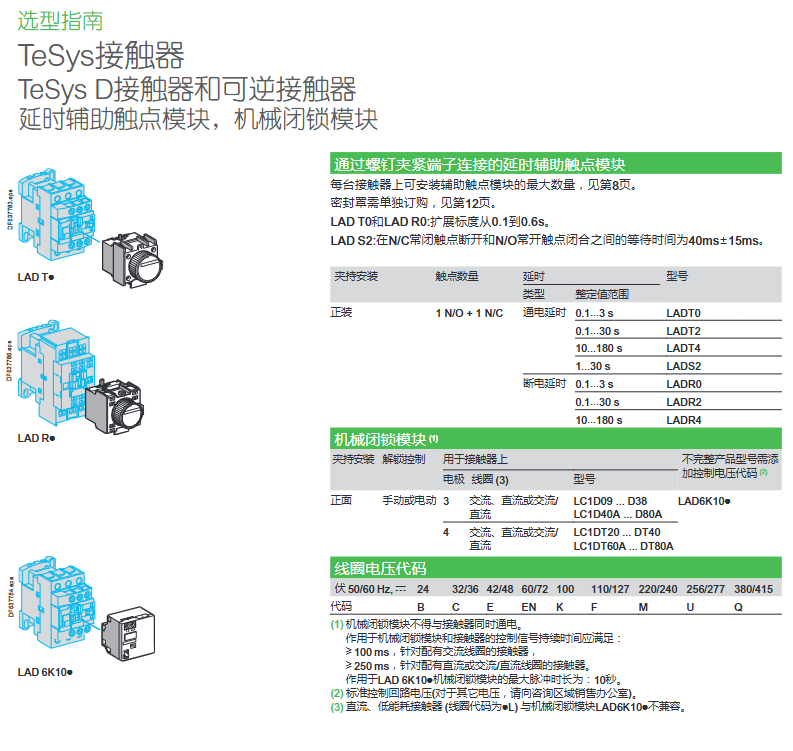

Delay contact LADT/R series power on delay (0.1-180s), power-off delay timing control

Dustproof and moisture-proof LA1DX/DY series 2NO/0NC, 1NO/1NC harsh industrial environment

Side mounted contact LAD8N series 1NO/1NC, 2NO/0NC in space limited scenarios

(2) Functional modules and accessories

Mechanical locking module: LAD6K10p, compatible with 3/4 pole contactors, supports manual/electric unlocking

Electronic timer: LA4DTPU, delay 0.1-500s, requires LAD4BB3 wiring adapter

Static relay interface: LA4DWB, with manual override switch, compatible with 24V power supply

Connection accessories: EverLink ®  BTR terminal (hexagon nut), cable connector (LA9D3260), busbar assembly (GV2G245/GV3G364)

Protective identification: IP20 protective cover (LAD96570), identification motherboard (LAD21/22/24)

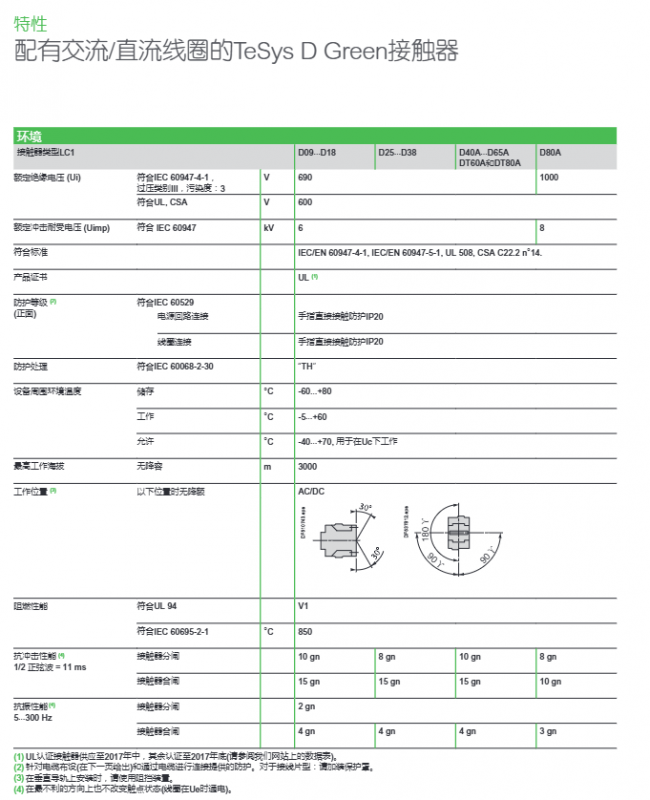

Technical characteristics and environmental adaptability

(1) Key technical parameters

Characteristic numerical range

Rated insulation voltage (Ui) 690V (IEC), 600V (UL/CSA)

Rated impulse withstand voltage (Uimp) 6-8 kV

Short time withstand current (1s) 210-900A

Operating frequency 3600 times/hour

Working temperature -5~+60 ℃ (conventional), -40~+70 ℃ (wide temperature range)

Storage temperature -60~+80 ℃

Maximum altitude of 3000m (without capacity reduction)

(2) PLC compatibility

PLC series output type output current compatible contactor coil code

M221/M241/M251 DC 24V static output 0.5A LC1D09-D80A, LC1DT60A-DT80A BL, BBE

M340/M580 DC 24V static output 0.1A LC1D09-D38 BL

AVANTYS AC 230V bidirectional thyristor 2A full series 230V AC coils

Application scenarios and compliance information

(1) Applicable scenarios

Industrial motor control: pumps, fans, machine tools, plastic machines, textile machines, etc

Load type: AC-3 motor (start/run), AC-1 non inductive load

Control mode: direct start, reversible operation, star delta start

(2) Compliance and Certification

Environmental certification: RoHS, REACH (no SVHC substances of high concern) Green Premium

International certifications: UL 508, CSA C22.2 No.14, IEC/EN 60947-4-1

Classification society certification: ABS, BV, CCS, etc. (some models)
