MVH series surface mount vertical chip capacitors

Product Overview

Product Name: MVH Series Surface Mount Vertical Chip Capacitors

Core positioning: Designed specifically for high-temperature environments, suitable for automobiles and other electronic devices that require high temperature and stability

Key features:

Support reflow soldering process, surface mount installation

The maximum working temperature is 125 ℃, with a working temperature range of * * -40 ℃~125 ℃**

Solvent resistance characteristics: Supported by 10-50V models, not supported by 63-450V models (please refer to the cleaning guide)

There are two types of pin configurations: VC type (2 SMD terminals) and VD type (4 SMD terminals, including 2 dummy terminals)

Core electrical specifications

Specific parameters of specification items

Capacitor range 3.3 μ F~4700 μ F

Voltage range 10VDC~450VDC (surge voltage is higher, such as 10V corresponds to 13V, 25V corresponds to 32V, etc.)

Capacity tolerance ± 20% (M-level), test conditions: 20 ℃, 120Hz

Leakage current 10-100V model: 0.03CV or 4 μ A (whichever is larger), test conditions: 20 ℃, rated voltage, continuous for 2 minutes

Rated lifespan of 1000-5000 hours (125 ℃, depending on shell size and voltage level)

Capacitance change (after life test) ≤± 30% initial value

Physical Structure and Dimensions

1. Classification of shell dimensions (a total of 11 shell codes)

Shell code outer diameter OD (± 0.5mm) length L (± 0.3~0.5mm) key dimensions (A/B/C, ± 0.2mm) terminal related dimensions (W/P, etc.)

F60 6.3 5.7 6.6/6.6/7.2 W=0.5-0.8，P=1.9

F80 6.3 7.7 6.6/6.6/7.2 W=0.5-0.8，P=1.9

H63 8 6.3 8.3/8.3/9.0 W=0.5-0.8，P=2.3

H10 8 10.0 8.3/8.3/9.0 W=0.7-1.1，P=3.1

J10 10 10.0 10.3/10.3/11.0 W=0.7-1.1，P=4.5

K14 12.5 13.5 13.0/13.0/13.7 W=1.0-1.3，P=4.2

K16 12.5 16.0 13.0/13.0/13.7 W=1.0-1.3，P=4.2

L17 16 16.5 17.0/17.0/18.0 W=1.0-1.3，P=6.5

L22 16 21.5 17.0/17.0/18.0 W=1.0-1.3，P=6.5

M17 18 16.5 19.0/19.0/20.0 W=1.0-1.3，P=6.5

M22 18 21.5 19.0/19.0/20.0 W=1.0-1.3，P=6.5

2. Identification and PCB design

Identification method: divided into two styles A and B, both labeled with capacity and rated voltage (style B is applicable to all 12.5mm outer diameter VC products)

PCB pads: Provide dedicated pad sizes for VC type (6.3-12.5mm outer diameter) and VD type (16/18mm outer diameter), specifying maximum clearance and other requirements

Part Number Rules (Essential for Ordering)

Number format: MVH 10 VC 221 M H10 TP. The meanings of each section are as follows:

MVH: Series Name (Basic Capacitor Design Identification)

10: Rated DC voltage (in VDC, such as 10=10VDC)

VC: Pin configuration (VC=2 SMD terminals; VD=4 SMD terminals, including 2 dummy ones)

221: Capacity value (unit: μ F)

Three digit number: The number of significant digits in the first two digits and zero in the third digit (e.g. 221=220 μ F, 222=2200 μ F)

Containing R: R as the decimal point (e.g. R22=0.22 μ F, 2R2=2.2 μ F)

M: Capacity tolerance (M=± 20%)

H10: Shell code (corresponding to the above shell size table)

TP: Packaging method (TP=standard tape, suitable for F60-K16; TR=plastic tray, suitable for L17-M22, K14-K16 optional)

Product Selection Table

Divided into two categories based on voltage level, key parameters include model, size ESR、 Ripple current:

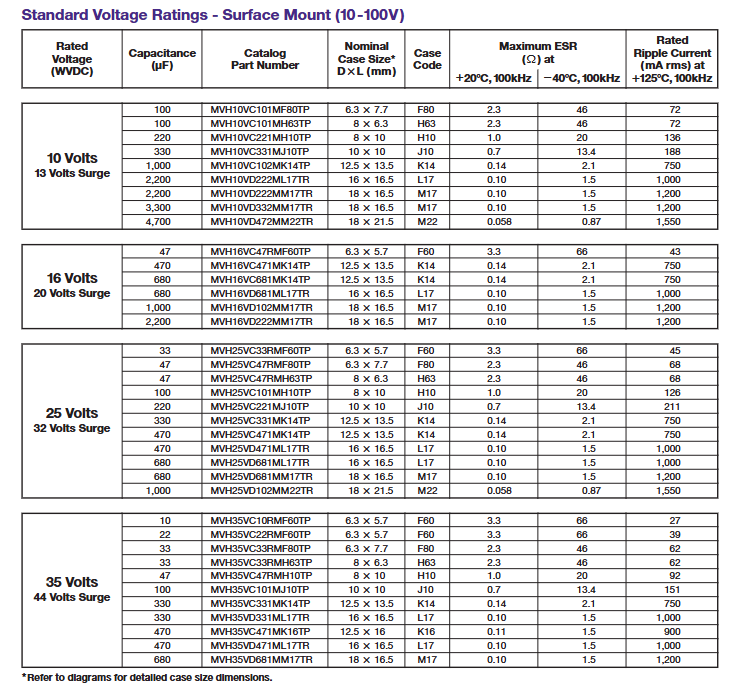

1. Low voltage level (10-100V)

Rated Voltage (VDC) Capacitor (μ F) Product Model Size (OD × L, mm) Shell Code Maximum ESR (20 ℃/100kHz) Rated Ripple Current (125 ℃/100kHz, mA rms)

10 100 MVH10VC101MF80TP 6.3×7.7 F80 2.3Ω 72

10 220 MVH10VC221MH10TP 8×10 H10 1.0Ω 136

25 470 MVH25VC471MK14TP 12.5×13.5 K14 0.14Ω 750

50 330 MVH50VC331MK16TP 12.5×16 K16 0.18Ω 700

100 100 MVH100VD101ML17TR 16×16.5 L17 0.24Ω 650

2. High voltage level (160-450V)

Rated Voltage (VDC) Capacitor (μ F) Product Model Size (OD × L, mm) Shell Code Maximum ESR (20 ℃/120Hz) Rated Ripple Current (125 ℃/120Hz, mA rms)

160 10 MVH160VC10RMK14TP 12.5×13.5 K14 33.16Ω 100

200 22 MVH200VD22RML17TR 16×16.5 L17 15.07Ω 180

250 33 MVH250VD33RMM22TR 18×21.5 M22 10.05Ω 260

400 10 MVH400VD10RML22TR 16×21.5 L22 39.79Ω 140

450 10 MVH450VD10RMM22TR 18×21.5 M22 39.79Ω 145
