HIMA HIMatrix F3 DIO 20/8 02 Series Safety Related Remote I/O Modules
Product Model Classification and Key Differences
Model, working temperature, special characteristics, adaptability, tool weight
F3 DIO 20/8 02 0~+60 ℃ Basic ELOP II Factory 1kg
F3 DIO 20/8 021 (-20 ℃) -20~+60 ℃ protective coating ELOP II Factory 1.2kg
F3 DIO 20/8 023-25~+70 ℃ Salt Spray Resistant (IEC 60068-2-11) ELOP II Factory 1.2kg
F3 DIO 20/8 024-25~+70 ℃ (T1 level) anti vibration and anti impact (EN 50125-3/EN 50155) ELOP II Factory 1kg
F3 DIO 20/8 02 SILworX 0~+60 ℃ Basic SILworX 1kg
F3 DIO 20/8 021 SILworX (-20 ℃) -20~+60 ℃ protective coating SILworX 1.2kg
F3 DIO 20/8 023 SILworX -25~+70 ℃ Salt Spray Resistant SILworX 1.2kg
F3 DIO 20/8 024 SILworX -25~+70 ℃ (T1 level) anti vibration and anti impact SILworX 1kg
Core hardware configuration and performance parameters
1. I/O interface specifications
Interface type, quantity, key parameters, wiring instructions
Digital input 20 channels, high level 15~30VDC, low level ≤ 5VDC, maximum current 1.5mA, divided into 5 groups for power supply (4 channels per group), LS+for sensor power supply (20V/100mA, short circuit protection)
Digital output 8 channels 1~3~5~7: 0.5A (≤ 60 ℃); 4/8 channels: 2A (≤ 50 ℃)/1A (50~60 ℃) divided into 2 groups for grounding, with a maximum total output current of 7A. After overload automatic shutdown, it will cycle and restart
2. Communication and electrical parameters
Category specification details
Communication interface 2 x RJ-45 10BASE-T/100BASE-Tx, supporting automatic negotiation and automatic crossover
Communication protocols safeEthernet (safety related), SNTP (time synchronization) UDP ports: 8000 (programming tool), 8001 (ELOP II configuration), 8004 (SILworX configuration), 6010 (safeEthernet), 123 (SNTP)
Power supply parameters: 24VDC voltage range -15%~+20%, ripple ≤ 15%, maximum input current of 8A (full load), no-load about 0.4A
Protection configuration external fuse 10A delay fuse (T-shaped)
3. Physical and environmental parameters
Project specifications
Dimensions (without plug) Width 207mm x Height 114mm x Depth 66mm
Protection level IP20
Storage temperature -40~+85 ℃
Altitude<2000m
Pollution Level II (IEC/EN 61131-2)

Core safety functions and fault handling
1. Security features
Security Level Certification: SIL 3(IEC 61508/61511/62061)、Cat.4/PL e(EN ISO 13849-1)、SIL 4(EN 50126/50128/50129), Support Zone 2 hazardous area installation (ATEX certification).
Line control: Can be configured with short circuit/open circuit detection (SC/OC), linked with DI channel through DO channel pulse signal, adapted to Cat. 4 emergency stop input.
Fault safety shutdown:
Input fault: When a fault is detected, the input signal is processed as a low level according to the principle of “power-off trip”, and the FAULT LED is activated.
Output fault: When a single channel fails, the channel switches to a power-off safe state; When the device malfunctions, all outputs are turned off and the FAULT LED is activated.

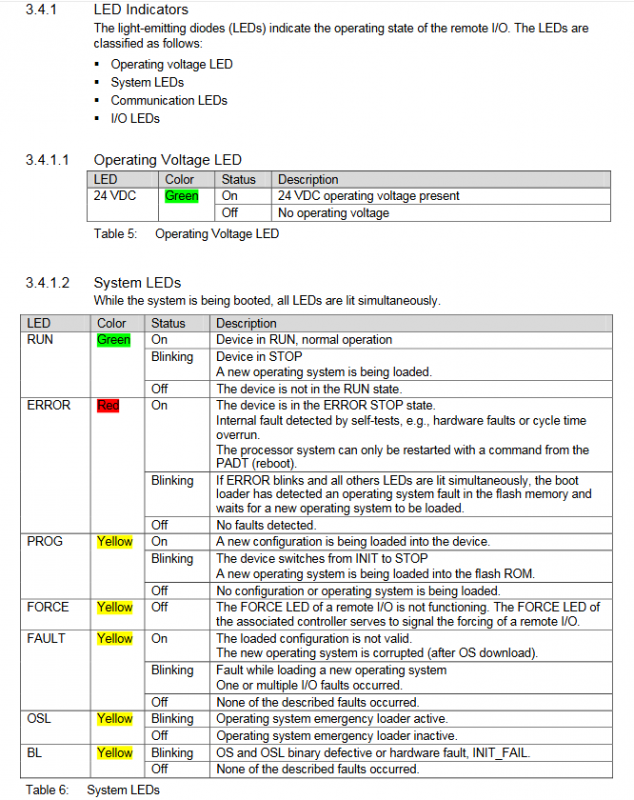

2. LED indicator light function
LED type name status meaning
Power supply LED 24VDC (green) on/off 24VDC power supply normal/no power supply
System LED RUN (green) on/flashing/off Normal operation/shutdown/non operating status
System LED ERROR (red) on/flashing/off Error shutdown/OS malfunction/no malfunction
System LED FAULT (yellow) on/flashing/off configuration invalid/OS download fault/I/O fault/no fault
Communication LED green (RJ-45) on/flashing/off Full duplex/Conflict/Half duplex no conflict
Communication LED yellow (RJ-45) on/flashing/off, connection valid/interface active/no connection
I/O LED DI 1-20 (yellow) on/off Input activated (powered on)/Input inactive (powered off)
I/O LED DO 1-8 (yellow) on/off, output activated (powered on)/output inactive (powered off)
Installation and configuration process
1. Installation requirements
Mechanical installation: 35mm DIN rail installation, separate signal cables from power cables to avoid interference.
Special installation requirements for Zone 2: It needs to be installed in an IP54 protection level enclosure (EN 60529), and the enclosure should be labeled with “power-off operation only”; The shell needs to effectively dissipate heat (module power consumption of 9-25W); The power supply needs to be PELV/SELV safe low voltage.
Wiring specifications:
Input wiring: 5 sets of independent LS+power supply (corresponding to DI 1~4/5~8/9~12/13~16/17~20), each set corresponds to L – grounding.
Output wiring: 2 sets of independent L – grounded (corresponding to DO 1~4/5~8), load connection requires 2-pole wiring, and it is recommended to parallel protect diodes for inductive loads.
2. Configuration process
Programming tool configuration entrance core operations
SILworX hardware editor 1. Module recognition (CPU/DI 20/DO 8); 2. Assign global variables; 3. Configure parameters such as input pulse channel and delay time
ELOP II Factory Signal Editor 1. Define system signals; 2. Allocate I/O channel signals; 3. Configure the number of pulse outputs, pulse slots, etc
3. Reset operation
Only models without protective coating are equipped with a reset button (circular hole 5cm on the left side of the housing), which needs to be operated with insulated pins.
Reset process: Press and hold the reset button → restart the module → hold for 20 seconds → release. After resetting, the IP address (default 192.168.0.99) and system ID will be restored to default, and only the administrator account will be activated (empty password).

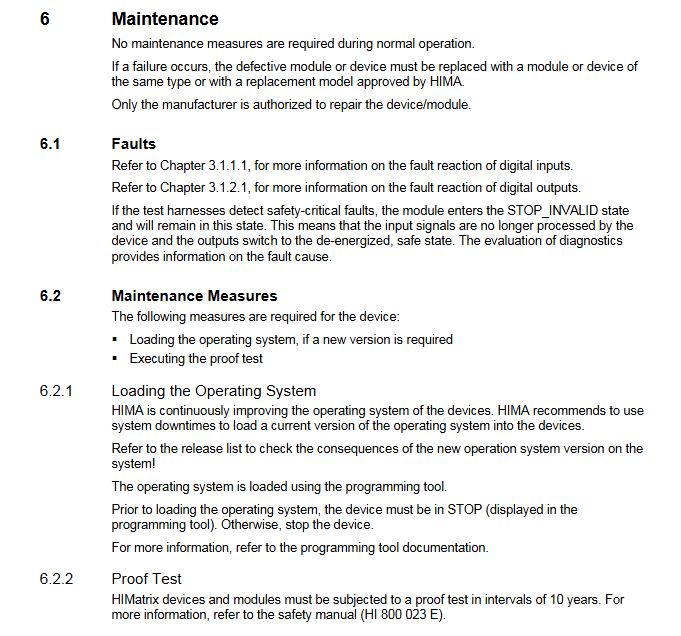

Maintenance and disposal
Maintenance requirements: Normal operation does not require routine maintenance. In case of malfunction, the same model or HIMA approved replacement module must be replaced; Verification testing must be performed every 10 years (refer to safety manual HI 800 023 E); The operating system can be upgraded through programming tools (with the module in STOP state).
Transportation and storage: Use original packaging for transportation and storage to avoid static electricity and mechanical damage.
Disposal process: power outage → removal of power/signal/Ethernet cables → ecological recycling (disposal agreement can be signed with HIMA).
