HIRSCHMANN PowerMICE series industrial Ethernet switches

Core Features and Classification of Products

1. Core product composition

Module type Core model/series Key parameter Function positioning

Basic module MS4128 with 4 10/100 Mbit/s slots and 1 gigabit slot, weighing 2.0kg switch core unit, integrating switching, management, and redundancy functions

Media module MM2 series 10/100 Mbit/s, supports RJ45/fiber interface 100Mbps basic interface expansion (twisted pair/multimode/single-mode fiber)

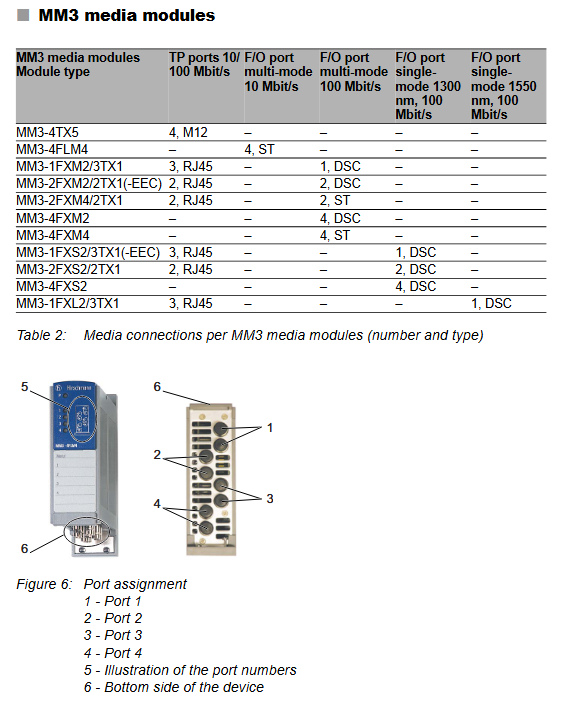

Media module MM3 series 10/100 Mbit/s, supports M12/fiber interface industrial grade 100Mbps interface expansion (anti vibration M12 interface)

Media module MM4 series 10/100/1000 Mbit/s, RJ45+SFP slot Gigabit interface expansion (twisted pair and fiber optic mutually exclusive)

Media module MM22-T1T1T1T1 4-port RJ45 PoE, compliant with IEEE 802.3af PoE power supply extension (for remote power supply to IP terminals)

Expansion module MB-2T adds 2 10/100 Mbit/s slots to expand the interface capacity of the basic module

2. Core industrial grade characteristics

Hazardous Area Adaptation: ATEX certified (II 3G Ex nA IIC T4 Gc), suitable for Zone 2, IIC explosive hazardous environments, USB/V.24 interface only allows temporary connection in non hazardous areas.

Modularity and Scalability: Supports hot swappable media modules, and the basic module can add 2 100Mbps slots through the MB-2T expansion module, which can connect up to 24 100Mbps network segments and 4 Gigabit network segments.

Redundancy guarantee:

Power supply redundancy: dual 4-pin terminal block input (P1/P2), supporting 18-32V DC wide voltage, seamless switching in case of power failure;

Network redundancy: Supports HIPER Ring network protocol, configured with a 6-pin DIP switch redundancy manager (RM) for fast fault recovery.

Wide temperature and environmental adaptability:

Temperature range: Standard (S) 0~60 ℃, Extended (EEC) -40~70 ℃ (including Confocal Coating);

Protection level: IP20, pollution level 2, supports altitude up to 2000m.

PoE power supply: MM22-T1T1T1T1 module supports IEEE 802.3af standard, 4 PoE ports, powered by spare wire pairs (pins 4/5, 7/8), compatible with Class 0/3 terminals.

Hardware configuration details

1. Core parameters of basic modules

Software version, power consumption, working temperature, order number example, key differences

MS4128-L2P 16.0 W 0~60 ℃ 943 009-102 Second Floor Professional Edition

MS4128-L3E 16.0 W 0~60 ℃ 943 009-202 Three layer Enhanced Edition

MS4128-L3P 16.0 W 0~60 ℃ 943 009-302 Three layer Professional Edition

MS4128-L2P ATEX 16.0 W 0~60 ℃ 943 009-101 ATEX certified version

MS4128-L2P EEC 16.0 W -40~60 ℃ 943 009-103 Wide Temperature Expansion Edition

2. Key interfaces and power supply

Interface type:

Data interface: RJ45 (10/100/1000 Mbit/s), M12 (industrial grade), SFP slot (fiber optic expansion), AUI port (IEEE 802.3);

Management interface: USB (configuration/upgrade), V.24 (CLI local management, RJ11 interface);

Power interface: 4-pin terminal block, supports redundant power supply, requires Z-shaped gasket and M2.5 screw fixation.

Power supply parameters:

Rated voltage: 18-32V DC (SELV/PELV safe low voltage);

North American standard: Class 2 power supply, maximum 5A;

Insulation voltage: 800V DC (between power supply and casing).

Core functions and management methods

1. Core functions

Network redundancy: Supports HIPER Ring network (fast fault recovery) and Rapid Spanning Tree (fast spanning tree) to ensure network continuity;

Electromagnetic compatibility: Complies with EN 55022 Class A, EN 61000-6-2 standards, anti-static discharge (± 8kV air discharge), fast transient (± 4kV);

Security features: Supports port isolation, VLAN (IEEE 802.1Q), and SNMPv3 encryption management. The default administrator password needs to be changed upon first login (admin/private).

2. Management and configuration methods

Key Explanation of Applicable Scenarios for Configuration Method and Operation Path

Automatic configuration of DHCP/BOOTP for large-scale deployment, automatic acquisition of IP addresses and configuration

Local Configuration Adapter (ACA) for single machine quick configuration, importing/exporting configurations through USB interface

Manually configure 6-pin DIP switch redundancy function to quickly enable RM, ring network ports, and other functions

Remote management Web GUI/Telnet/SSH remote maintenance supports browser access and CLI command line operations

Centralized management of Industrial HiVision software for unified configuration, monitoring, and fault diagnosis of multiple device clusters

Installation and maintenance specifications

1. Key installation steps

Installation preparation: Check the packaging contents (equipment, terminal blocks, Z-type gaskets, screws, etc.) CD-ROM、 Label), confirm that there is no transportation damage;

Physical installation:

Method: 35mm DIN rail installation (compliant with DIN EN 60175), with a reserved heat dissipation space of ≥ 10cm above and below;

Grounding: grounded through DIN rails or separate grounding screws, with a grounding wire specification not smaller than the power supply wire;

Cable connection:

Twisted pair cable: Cat5e and above, with a maximum length of 100m, maintaining sufficient distance from power cables (recommended to be routed in separate slots);

Fiber optic: Multimode/single-mode fiber optic cables need to be matched with SFP transceivers to avoid end face contamination;

PoE power supply: The MM22 module requires Hirschmann RPS 60/48V EEC power supply, with cable length ≤ 3m and wire diameter compatible with 1.5A;

Startup process: After connecting the power supply, the device automatically self checks (about 60 seconds), and the LED indicator light displays the device status (power, redundancy, port status).

2. Maintenance and disassembly

Daily maintenance:

Component replacement: Media module and SFP transceiver support hot swapping;

Software upgrade: Download the latest firmware via USB or network to avoid power outages and interruptions;

Fault diagnosis: locate the fault through LED indicator lights and management software (such as RM indicator light flashing indicating ring network configuration error);

Disassembly steps:

Disconnect all cables (data+power) and remove the grounding;

Press the bottom lock of the device and remove it from the DIN rail;

When dismantling the SFP transceiver, first open the lock buckle and remove the protective cap on the back cover.

Key technical specifications

Category parameter details

Environmental parameter temperature: 0-60 ℃ (standard)/-40~70 ℃ (EEC); Humidity: 10-95% RH (no condensation); Altitude: ≤ 2000m

Mechanical parameter size (MS4128): 317 × 134 × 140mm (W × D × H); Protection level: IP20; Laser safety: Class 1

Electromagnetic compatibility radiation emission: EN 55022 Class A; Immunity: EN 61000-4-2 (± 8kV air discharge) EN 61000-4-3（10V/m）

Maximum switching voltage of signal contacts: 60V DC/30V AC; Maximum switching current: 1A (≤ 60 ℃)

Network range twisted pair cable: ≤ 100m (Cat5e); Multimode fiber (SX): ≤ 550m; Single mode fiber (LX): ≤ 20km
