DELL EMC NETWORKING X-SERIES

​Product Overview

core positioning

Brand and Series: Dell EMC Networking X-Series, focusing on the small and medium-sized enterprise market, balancing enterprise level network control and usability

Core value: Integrating intelligent management functions with consumer level operational experience, supporting cloud services and local network application optimization, providing flexible deployment options (desktop/wall mounted/rack mounted)

Target scenario: office network, VoIP telephone power supply, wireless AP connection, high-speed server interconnection, network convergence

Product family composition

|Model | Core Positioning | Port Configuration | Key Features|

|X1008/P | Compact entry-level | 8 10/100/1000Base-T ports | X1008P supports 8 PoE ports (total power 123W), which can be powered by PoE|

|X1018/P | Small and medium-sized office network core | 16 10/100/1000Base-T+2 SFP ports | X1018P supports 16 PoE ports (total power 246W), half rack width|

|X1026/P | Medium sized network aggregation | 24 10/100/1000Base-T+2 SFP ports | X1026P supports 24 PoE/PoE+ports (total power 369W)|

|X1052/P | Large office/small data center | 48 10/100/1000Base-T+4 SFP/SFP+ports | X1052P supports 24 PoE/PoE+ports (total power 369W), 1RU rack width|

|X4012 | High speed server interconnection/aggregation | 12 SFP/SFP+ports | Pure 10GbE model, switching capacity 240Gbps|

Core hardware parameters

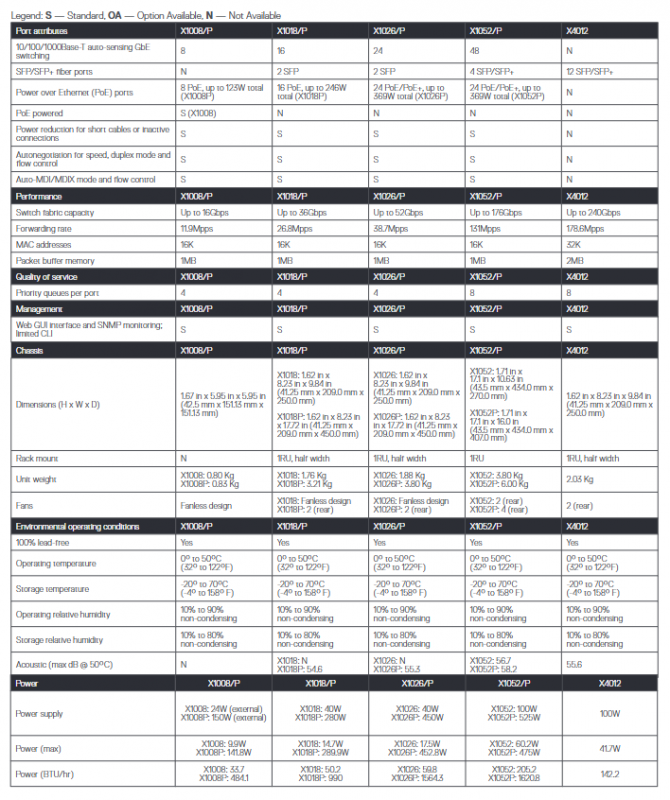

Summary of Performance Indicators

|Performance Parameters | X1008/P | X1018/P | X1026/P | X1052/P | X4012|

|Switching capacity | 16Gbps | 36Gbps | 52Gbps | 176Gbps | 240Gbps|

|Forwarding rate | 11.9Mpps | 26.8Mpps | 38.7Mpps | 131Mpps | 178.6Mpps|

|MAC address table capacity | 16K | 16K | 16K | 16K | 16K | 32K|

|Package cache memory | 1MB | 1MB | 1MB | 1MB | 2MB | | Priority queue per port | 4 | 4 | 4 | 8 | 8|

Physical and power characteristics

|Physical parameters | Specific specifications|

|Dimensions (H × W × D) | X1008/P: 42.5 × 151.13 × 151.13mm; X1052/P: 43.5 × 434 × 407mm (PoE version) | | Weight | 0.80kg (X1008) -6.00kg (X1052P)|

|Installation method | X1008/P: desktop/wall mounted; X1018/P/X1026/P/X4012: 1 RU half rack; X1052/P: 1RU rack|

|Fan Design | X1008/P/X1018/X1026: Fan less; Other models come with 2-4 rear fans|

|Power specification | X1008: 24W external; X1052P: 525W built-in; Maximum power consumption 9.9W (X1008) -475W (X1052P)|

environmental adaptability

Working temperature: 0 ° C-50 ° C (32 ° F-122 ° F)

Storage temperature: -20 ° C-70 ° C (-4 ° F-158 ° F)

Working humidity: 10% -90% (non condensing)

Storage humidity: 10% -80% (non condensing)

Environmental features: 100% lead-free design, supporting Dell Fresh Air 2.0 energy-saving standards

Core functions and compatibility

Network functional characteristics

VLAN support: up to 4096 port based VLANs, supporting 802.1Q VLAN tags

Link aggregation: Compliant with IEEE 802.3ad standard (static+dynamic LACP), supports 12 aggregation groups, with a maximum of 8 ports per group

QoS capability: Supports 802.1p priority and IP DSCP value recognition, provides strict priority scheduling and configurable weighted polling (WRR)

Spanning Tree Protocol: Supports IEEE 802.1D (STP), 802.1w (RSTP), 802.1S (MSTP)

Security features: 802.1x port authentication, broadcast storm control, IP based access restrictions, local password protection

Other features: Port mirroring, Jumbo frames (up to 9000 bytes), DHCP server/client, RMON statistics

Management and Configuration

Management method: intuitive web GUI (supporting custom dashboards) SNMP（v1/v2/v3）、 Limited CLI

Convenience of configuration: batch port operation, device port configuration file, step-by-step guide, USB configuration upload/download

Diagnostic function: Marvel ™ Virtual cable diagnosis, fiber optic transceiver diagnosis, integrated LED status indication

Compatibility and standard support

IEEE standards: 802.3 (Ethernet), 802.3ad (Link Aggregation), 802.1Q (VLAN), 802.1x (Authentication), etc

IETF RFC standards: covering over 100 protocols including TCP/IP, SNMP, DHCP, IGMP snooping, etc

Optical module support: 1000BASE-SX/LX/ZX (SFP), 10GbE SR/LR/ER (SFP+), transmission distance of 100m-80km

Cable support: SFP+copper cable direct connection cable (0.5m/1m/3m/5m/7m, X4012 does not support 7m)

Service and Support

Lifecycle Services:

Planning and Design: Multi vendor Environment Analysis and Network Optimization Solutions

Deployment Integration: ProDeploy Service for Quick Installation and Configuration

Training Certification: Dell EMC Network Technology Training and Certification

Management support: ProSupport technical support to solve multi vendor network problems

Optimization and Upgrade: Remote Monitoring and Performance Optimization Analysis

Recycling and Disposal: Compliant Hardware Recycling and Environmental Protection Disposal

OEM support: Removable Dell EMC logo, supports device customization
