EATON XV-303/XV-313 series multi touch display

Basic Information and Core Product Specifications

Product positioning and applicable scenarios

Equipment type: Can be used as an independent HMI monitoring device or an integrated HMI/PLC control device;

Applicable fields: Designed specifically for mechanical and system manufacturing, used for equipment visualization, operation, and control. Other uses require confirmation from the manufacturer;

Core difference: XV-303 is front mounted (embedded in the front of the control panel), while XV-313 is rear mounted (flush with the panel surface).

Core hardware and model division

Display system:

Size Resolution Visible Area Contrast Brightness

7.0″ 1024×600 153.6×90.0mm 850:1 400 cd/m²

10.1″ 1024×600 222.72×125.28mm 500:1 400 cd/m²

15.6″ 1366×768 344.23×193.54mm 500:1 400 cd/m²

Common features: Capacitive Multi touch (PCT), Anti glare Tempered Glass, LED Backlight (with a lifespan of 50000 hours and software adjustable dimming);

Hardware configuration: 800 MHz ARM Cortex-A9 processor, 512 MB RAM, 1GB SLC flash memory, 128kB non-volatile storage, supports SD/SDHC card expansion (SDA 2.0 specification); Built in 3V lithium battery (BR-2330/GNU), with a backup lifespan of 10 years for power-off clock (at 25 ℃);

Model classification: According to the combination of “installation method+size+interface+version+software”, the core model examples are as follows:

Installation method, size, interface configuration, software package, model example

Front end (XV-303) 7.0 “1 Ethernet visualization software XV-303-70-B00-A00-2B

Front end (XV-303) 10.1 “2 Ethernet visualizations+PLC software XV-303-10-C00-A00-2C

Rear (XV-313) 7.0 “1 Ethernet visualization+PLC software XV-313-70-B00-A00-2C

Rear (XV-313) 10.1 “2 Ethernet visualizations+PLC software XV-313-10-C00-A11-2C

Key technical parameters

Power supply: 24 VDC SELV/PELV, allowable voltage range 18.0-31.2 VDC (including ripple), short-term (<100ms) can withstand 35 VDC; Maximum power consumption of 21.6 W (15.6 “model), continuous current of 0.6-0.9 A;

Protection level: front panel IP65 (splash proof and dustproof), back panel IP20;

Physical dimensions and weight:

Model Series Size Weight Installation Cut (Example)

XV-303 (front) 7.0 “0.74 kg 196 × 135mm

XV-303 (front) 10.1 “1.13 kg 269 × 174mm

XV-303 (front) 15.6 “3.25 kg 401.7 × 254.9mm

XV-313 (rear) 7.0 “0.8 kg 182.7 × 126.8mm

XV-313 (rear) 10.1 “1.21 kg 255.7 × 165.8mm

Environmental adaptability: operating temperature 0-50 ℃, storage/transportation temperature -20-60 ℃, humidity 10-95%, no condensation; The highest altitude is 2000 meters.

Safety regulations and core taboos

Personnel and operational requirements

Qualification requirements: Installation, operation, and maintenance personnel must be professional electricians who comply with EN 50110-1/-2 (VDE 0105 part 100) standards;

Manual usage: The complete and latest manual must be used, and single page operations are prohibited (to avoid missing safety information);

Prohibited from use: Safety functions that cannot be used for personnel or equipment protection, can only be used for routine control and visualization.

Core security risks and preventive measures

table

Potential risk prevention measures

Explosion risk (explosive environment/lithium battery) is only used in non explosive environments or ATEX Zone 22; Improper disposal of lithium batteries is prohibited, and the equipment needs to be professionally recycled

Electric shock risk (opening cover): Do not open the cover by yourself, as it contains live parts inside

Static electricity damage (electronic components): Before touching the device, ground it to release static electricity; Avoid contact with sensitive components such as interface pins

Data loss (SD card/memory): Only power off and unplug the SD card; Reduce write operations (limited write cycles on storage media); Confirm no write operation before closing

Condensation short circuit (temperature fluctuation): Do not apply electricity during condensation; After the temperature changes, it needs to be allowed to stand at room temperature before starting

Touch screen damage (sharp objects) can only be operated with fingers or a dedicated stylus; Avoid corrosive cleaning agents

Stray current fire requires parallel laying of equipotential bonding conductors (with a cross-section of multiple shielding layers of the cable)

Environmental and installation restrictions

Avoid direct sunlight exposure (UV can cause plastic to become brittle);

Signal cables and power cables cannot be laid in the same slot and need to be wired separately;

The equipment needs to be installed inside a fire-resistant enclosure (UL certification requirements).

Installation process and specifications

Installation prerequisites

Installation location: inside the control cabinet/control panel, can be installed horizontally/vertically; The SD card slot cannot face downwards (to prevent the card from falling off);

Spacing requirements: ventilation gap ≥ 30mm, distance from heat sources (such as transformers) ≥ 15cm;

Installation surface requirements: XV-303 requires a 2-5mm thick panel, XV-313 requires a 1.5mm (A00 version) or 2mm (A11 version) thick panel, with a flatness of ≤ 0.5mm.

Cable and wiring specifications

Common requirements for cables: All interfaces require shielded cables, and the shielding layer should be connected to the connector housing with low impedance to ensure EMC compliance;

Interface – Specific Requirements:

Interface cable specifications, maximum length, terminal resistance

CAN characteristic impedance 120 Ω, capacitance<60pF/m 5000m (10 Kbit/s) 120 Ω (at both ends of the bus)

RS-485 characteristic impedance 120 Ω, loop resistance<110 Ω/km 1200m (9600 Kbit/s) 120 Ω (at both ends of the bus)

Ethernet shielded twisted pair (STP), CAT5e/6 100m none

RS-232 shielded cable 30m (9600 Kbit/s) None

Grounding specification: The cross-sectional area of the functional grounding wire should be ≥ 1.5mm ² and the length should be ≤ 350mm. It should be connected to the equipment grounding screw (tightening torque 1.3 Nm).

Equipment fixation and sealing

XV-303 (pre installation): Use 6/10/12 brackets (according to size) to fix from the back of the panel, with a tightening torque of ≤ 0.1 Nm for the brackets. Before installation, place a sealing strip in the equipment groove (with the joint facing downwards and no distortion) to ensure IP65 protection;

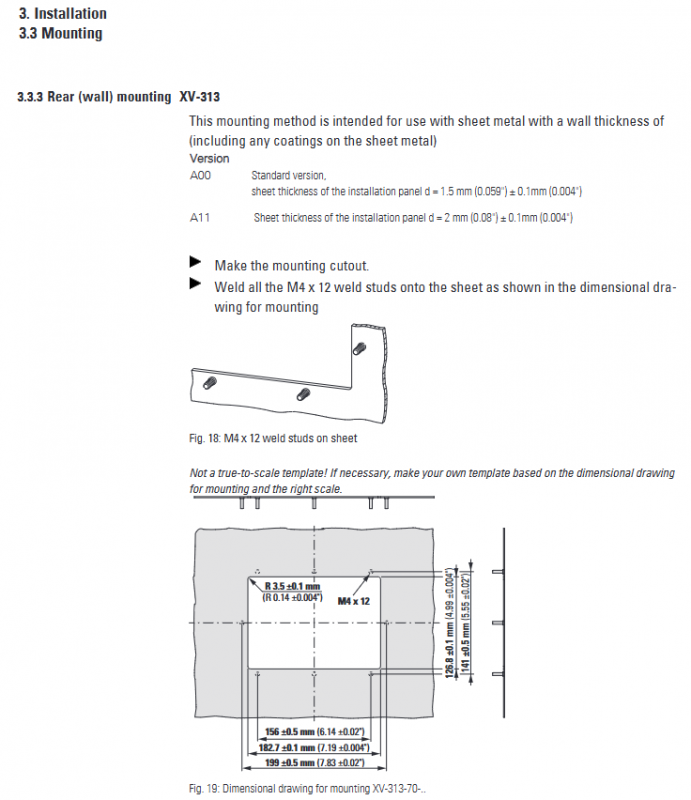

XV-313 (rear installation): Weld M4 × 12 bolts on the panel, fix the equipment with washers and nuts to ensure no gaps;

Power wiring: Use the matching MSTB 2.5-3-ST-5.08 plug, with a wire cross-section of 0.75-2.5mm ², a stripping length of 7mm, and a tightening torque of 0.6-0.8 Nm.

Operation and maintenance

Startup and shutdown

Startup process: Power off, insert SD card containing software → Connect 24 VDC power supply → Power on, automatic boot → Install GALILEO/PLC (XSoft CoDeSys 3) software → Complete system configuration;

Closing process: Confirm that there are no SD card write operations → Disconnect the power supply; No independent switch, avoid frequent switching (prolong backlight life).

routine maintenance

Touch screen maintenance: Clean with a clean, soft and damp cloth. For stubborn stains, spray a small amount of cleaning agent on the cloth (do not directly spray the device); When responding to anomalies, it is necessary to calibrate according to the Linux system manual;

Battery maintenance: The built-in lithium battery is maintenance free, with a lifespan of about 10 years, and cannot be replaced;

Maintenance restrictions: Equipment malfunctions can only be reported to the manufacturer or authorized center, and self opening repairs are prohibited.

Common troubleshooting

Possible causes and solutions for the fault phenomenon

The device cannot start without 24 VDC power supply/SD card not inserted Check power cable → Insert SD card with software → Confirm power supply voltage is between 18.0-31.2 VDC

Touch screen unresponsive, poor grounding/uncalibrated/disabled. Check function grounding (cross-section ≥ 1.5mm ², length ≤ 350mm) → recalibrate → enable touch screen function

Display black screen backlight disabled/backlight failure. Turn on backlight in visualization software → Contact for repair

Abnormal data transmission, unshielded cable/missing terminal resistor. Replace shielded cable → Add 120 Ω terminal resistors at both ends of CAN/RS-485 bus

Storage, transportation, and disposal

Storage and transportation

Storage conditions: Temperature -20-60 ℃, humidity 10-95%, no condensation, avoid direct UV radiation and severe vibration;

Transportation requirements: Use original factory packaging, inspect the equipment for any transportation damage upon arrival, and retain the packaging for future transportation.

Disposal standards

The equipment contains lithium batteries (BR-2330/GNU) and electronic components, which need to be disposed of professionally according to local environmental regulations, or returned to the manufacturer/sales department;

Packaging materials (cardboard, PE film) can be classified and recycled.

​Compliance and Certification

The equipment complies with multiple international standards, and the core certifications are as follows:

Safety standards: UL 61010-2-201, IEC/EN 60950;

EMC standards: 2004/108/EEC, IEC/EN 61000 series;

Explosion proof standard: ATEX 94/9/EC (Zone 22, Category 3D);

Classification Society Certification: The 7.0 “/10.1” model has been certified by DNV GL (DNVGL-CG-0339) and is suitable for ship environments.
