EATON MVX9000 series sensorless vector frequency converter

Product basic positioning and core architecture

Product attributes: MVX9000 is a sensorless vector AC frequency converter launched by Eaton Cutler Hammer, designed to provide adjustable speed control for three-phase asynchronous motors. Its core advantages lie in compact size, high starting torque, and multifunctional integration, making it suitable for industrial scenarios with precise control requirements for motor speed and torque.

Core architecture: Using a 32-bit microprocessor to implement high-precision control algorithms, coupled with IGBT (Insulated Gate Bipolar Transistor) inverters, to ensure quiet and efficient motor operation, smooth and stable low-speed performance; Supports constant torque and variable torque loads, with a speed regulation accuracy of 0.5% of rated speed.

Product Categories:

Open drive: IP20 protection level (protective chassis), focusing on space saving and easy installation;

Enclosed drive: Provides NEMA 1 (universal), 3R (rainproof), 12 (dustproof), 4X (stainless steel waterproof) protection, built-in bypass/isolation switch options, suitable for harsh working conditions.

Core functions and advantages

Specific functional categories, key parameters/advantages

Control function sensorless vector control+self-tuning 200% starting torque, precise low-speed torque control, no need for motor encoder

Frequency modulation capability with a wide range of frequency modulation from 0.1-400Hz, with a digital setting accuracy of ± 0.01% and an analog setting accuracy of ± 0.2%

Process control PID control directly controls process variables such as pressure, flow rate, temperature, etc., without the need for additional controller settings

The braking function is equipped with a built-in dynamic braking chopper that supports external braking resistors, providing excellent deceleration performance and a braking torque of 125% -220% (depending on power)

Communication function: RS-485 serial communication can be directly connected to industrial communication networks and supports DeviceNet expansion modules

Convenient operation integrated keyboard panel with 4-character LED display (parameters/diagnosis/measurement data)+7 status LEDs+potentiometer, intuitive operation

Comprehensive fault protection including overcurrent, overload, overvoltage, undervoltage, overheating, ground fault, phase loss/reversal/imbalance protection

Key electrical specification parameters

(1) Voltage and Power Adaptation Table

Voltage level, power supply type, power range, corresponding model example

115V (90-132V) single-phase 1/4-1Hp (0.2-0.75kW) MVXF25A0-1 (1/4Hp), MVX001A0-1 (1Hp)

240V (200-240V) single/three-phase (3Hp and below support single-phase input) 1/2-7.5Hp (0.37-5.5kW) MVXF50A0-2 (1/2Hp), MVX007A0-2 (7.5Hp)

480V (380-480V) three-phase 1-10 Hp (0.75-7.5kW) MVX001A0-4 (1Hp), MVX010A0-4 (10Hp)

575V (500-600V) three-phase 1-10 Hp (0.75-7.5kW) MVX001A0-5 (1Hp), MVX010A0-5 (10Hp)

(2) Core electrical parameters

Overload capacity: 150% rated current, lasting for 60 seconds;

Allowable fluctuation of input voltage: 240V level ± 10%/+5%, 480V level ± 10%, 575V level -15%/+10%;

Input power factor: ≥ 0.95, operating efficiency: ≥ 95%;

Voltage sag tolerance: 0.3-25 seconds (rated AC power interruption);

Environmental adaptability: Working temperature -10 ℃~+50 ℃ (-10 ℃~+40 ℃ above 7.5Hp), humidity 20% -90%, no condensation, maximum altitude of 1000 meters.

Hardware configuration and I/O interface

Operation panel:

Display unit: 4-character high brightness LED, capable of displaying frequency, motor current, parameter values, and diagnostic information;

Operating components: 6 function keys (start/stop/reset/set, etc.), speed adjustment potentiometer (1K-2K Ω);

Status indication: 8 LEDs (run/stop/forward/reverse/frequency/current, etc.).

I/O interface specifications | interface type | quantity | specification parameters|

|Analog input | 2 channels | 0-10V DC (10K Ω input impedance), 4-20mA (250 Ω)|

|Digital input | 6 channels | Programmable intelligent input, supporting NO/NC selection|

|Digital output | 1-channel | collector open circuit output (48V DC 50mA)|

|Relay output | 1 channel | Form C contact, supports 120V AC/24V DC 5A|

|Analog monitoring output | 1 channel | 0-10V DC, can monitor frequency or output current|

Extension Accessories | Accessory Types | Function Functions | Model Examples|

|Braking resistor | Enhanced deceleration braking effect | K13-000034-0821 (200 Ω 80W), K13-000034-0846 (75 Ω 1000W)|

|EMI filter | Suppresses electromagnetic interference, meets CE certification | K13-000034-0111 (240V single-phase), K13-000034-0114 (480V three-phase)|

|Reactor | Reduce harmonics, protect frequency converter | Incoming reactor (3%/5% impedance), outgoing dv/dt filter (required for motor cables>33 feet)|

|Communication module | Extended bus communication | MVXDN (DeviceNet module)|

|Enclosure accessories | Enhance protection level | MVXENCS (NEMA 1 small frame), MVXENCL (NEMA 1 large frame)|

Characteristic configuration of enclosed drive

Protection and Structure:

NEMA 1/3R: ventilated chassis+sealing gasket, NEMA 3R has rainproof function, supports door panel installation of keyboard;

NEMA 12/4X: Beam welded structure, NEMA 12 dustproof, NEMA 4X made of 304/316 stainless steel material, waterproof and corrosion-resistant.

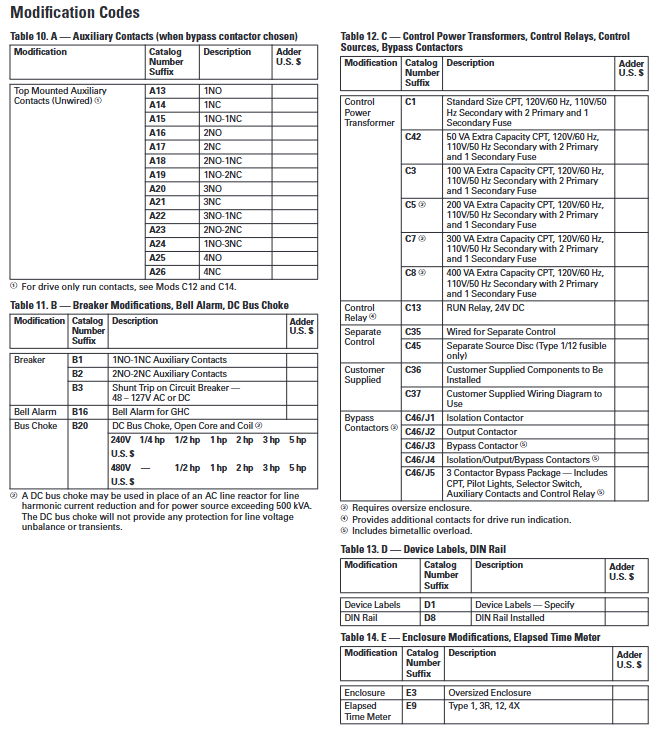

Bypass and isolation switch:

Support 2-contactor/3-contactor bypass configuration, providing triple contacts for isolation/output/bypass;

Isolation switch options: 30A/60A fuse type or thermal magnetic circuit breaker, supports locking OFF position, with mechanical interlock.

Additional control components: configurable emergency stop button, start stop button, manual/automatic selection switch, indicator light (run/stop/bypass), etc., to meet on-site operation requirements.

Compliance certification and selection information

Core certifications: UL Listed, cUL Listed (compliant with CSA standards), CE Mark (with EMI filter required), ABS Type Approval (class certification), designed to comply with NEMA, IEEE, NEC standards.

Key parameters for selection:

Motor parameters: power (Hp/kW), rated current, voltage level;

Power supply conditions: single-phase/three-phase, input voltage fluctuation range;

Environmental requirements: protection level, temperature, altitude;

Functional requirements: Whether PID control, braking resistance, communication expansion, and bypass function are needed.

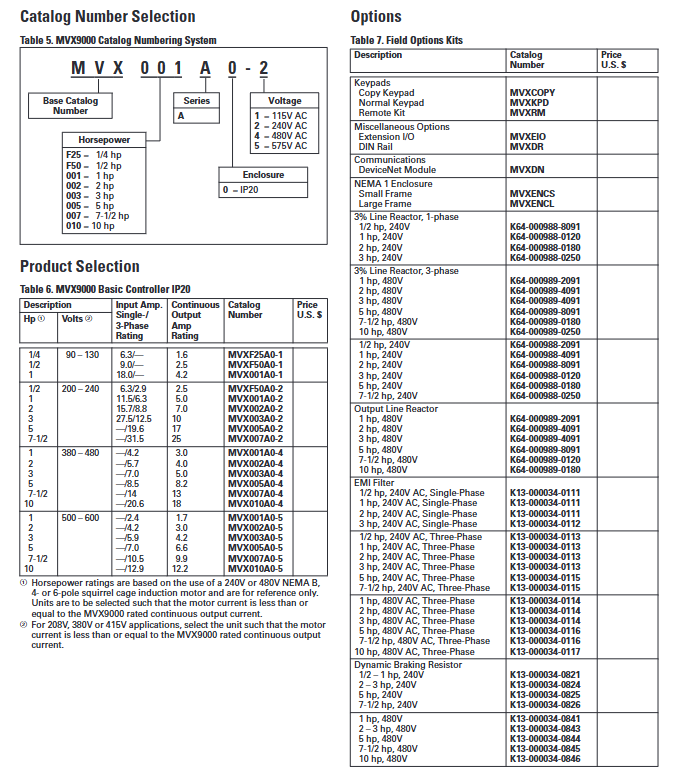

Model coding rules (open-ended): Taking MVX001A0-2 as an example, MVX=series name, 001=1Hp, A=version, 0=IP20 protection, 2=240V voltage level.
