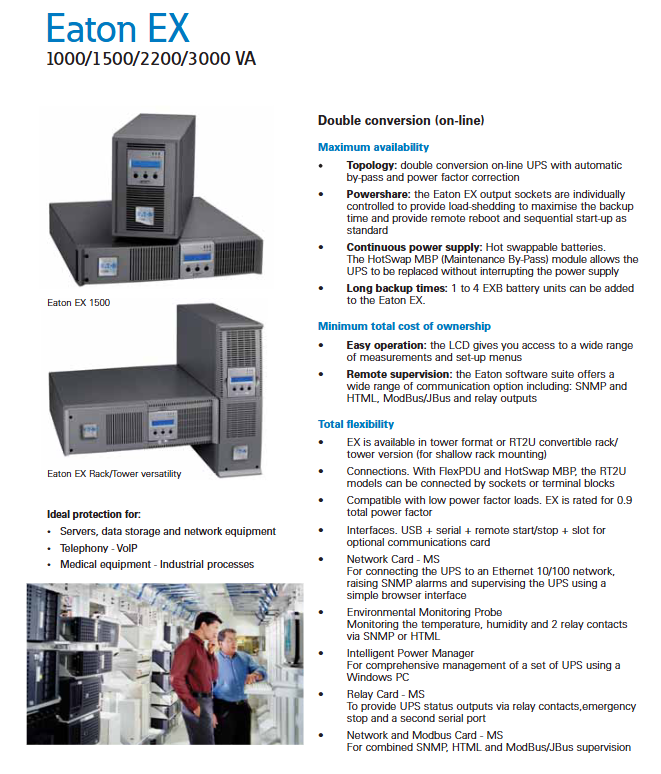

Eaton EX series UPS products

Product Fundamentals and Core Positioning

The Eaton EX series UPS is a dual conversion online uninterruptible power supply designed for industrial and commercial scenarios. Its core positioning is to provide stable power protection for servers, data storage, network equipment, VoIP communication, medical equipment, and industrial processes. Through automatic bypass, power factor correction (PFC), and hot swappable design, it ensures power supply continuity and availability, while supporting flexible expansion and remote monitoring to adapt to diverse load requirements (especially low power factor loads, rated PF=0.9). The product offers two forms: tower and RT2U (2U rack/tower convertible) to meet different installation environment requirements.

Key Technical Specifications (Summary Table)

Category specific parameters 1000VA/1500VA 2200VA 3000VA

Rated power VA/W 1000VA/900W, 1500VA/1350W 2200VA/1980W 3000VA/2700W

Input specification voltage range 100-284V (no battery mode) same left same left

Frequency range 40-70Hz Same Left Same Left

Output specification voltage 230V (adjustable 200/208/220/240/250V) same left and same left

Frequency 50/60Hz automatic switching or frequency converter mode (reduced by 15%) same left and same left

Battery backup time (minutes) 50% load (local) 18 (1000VA)/13 (1500VA) 17 15

70% load (local) 12 (1000VA)/9 (1500VA) 12 10

50% load (+1 EXB) 75 (1000VA)/50 (1500VA) 85 60

70% load (+1 EXB) 50 (1000VA)/35 (1500VA) 60 40

50% load (+4 EXB) 250 (1000VA)/180 (1500VA) 285 190

70% load (+4 EXB) 200 (1000VA)/120 (1500VA) 200 150

Environmental parameters Operating temperature 0-40 ℃ (continuous operation) Same left and same left

Noise level 45dBA Same Left Same Left

Certification standards for safety are equivalent to EMC IEC/EN 62040-3 (VFI-SS-113) and IEC/EN 60950-1

Product Certification CE, T ü V GS, CB Report, cT ü V-US Same Left Same Left

Core functional characteristics

Power Supply Guarantee and Expansion

Dual transformation online topology: filtering out power grid interference throughout the entire process, providing pure sine wave output, coupled with automatic bypass function, seamlessly switching to mains power in case of faults, ensuring that the load is not affected;

Hot swappable battery: supports uninterrupted battery replacement without shutting down the load, improving system availability;

HotSwap MBP module: maintains bypass module, allowing continuous power supply to the load during UPS replacement without any power outage gaps;

Battery Expansion: 1-4 EXB battery packs can be connected externally, with a maximum backup time of 285 minutes (under 50% load of 2200VA model), meeting long-term power supply needs.

Output Control and Flexibility

Powershare intelligent output: output sockets are grouped and independently controlled, supporting load offloading (prioritizing power supply for critical equipment), remote restart, sequential startup, and maximizing backup time;

Interface configuration: The basic model provides 6-8 IEC C13 sockets, which can be expanded to 12 IEC 10A sockets with FlexPDU. The 2200VA/3000VA model is equipped with an additional IEC C19 (16A) socket, suitable for high-power devices;

Installation form: The tower model is compact in size, and the RT2U model supports 2U rack installation or tower conversion, suitable for shallow rack environments in computer rooms. The 1000VA/1500VA RT2U can be connected through terminal blocks or sockets.

Monitoring and Communication

Local operation: equipped with 3 LED indicator lights and a multi language adjustable LCD display screen, real-time display of voltage, frequency, load rate and other parameters, supporting local menu configuration;

Communication interface: comes standard with 1 USB port, 1 RS232 serial port, relay contacts, supports remote start stop and emergency stop;

Extended monitoring: Reserve 1 communication slot for installing network card MS (Ethernet connection, SNMP alarm+browser monitoring), network and ModBus card MS (multi protocol monitoring), relay card MS (status output+second serial port);

Supporting software: Eaton software suite supports centralized management of multiple UPS on Windows PC, and environmental monitoring probes can monitor temperature, humidity, and contact status of two relays through SNMP/HTML.

Physical specifications and model information

Dimensions and Weight (Core Model)

Model, Form, Dimensions (H × W × D, mm), Weight (kg)

EX 1000 tower 440 × 242 × 153 15

EX 1000 RT2U rack/tower 86.5 × 438 × 483 24.5 (including EXB)

EX 1500 tower 490 × 242 × 153 18

EX 2200 rack/tower 640 × 86 × 440 (2U) 31

EX 3000 rack/tower 490 × 131 × 440 (3U) 30

EXB Extended Battery Tower (1000/1500VA) 440 × 242 × 153 21

EXB Extended Battery Rack (2200/3000VA) 490 × 131 × 440 (3U) 42

Model Number

Product type, model number

EX 1000 Tower 68181

EX 1000 RT2U rack 68182

EX 1500 Tower 68183

EX 1500 RT2U rack 68184

EX 2200 rack/tower 68401

EX 3000 rack/tower 68403

EXB Extended Battery (1000/1500VA) 68185

EXB Extended Battery (2200/3000VA) 68405

Optional Accessories

Network card – MS: Ethernet 10/100 connection, supports SNMP alarm and browser monitoring;

Environmental monitoring probe: monitoring temperature and humidity with 2-channel relay contacts, transmitting data through SNMP/HTML;

Intelligent Power Manager: Windows PC software for centralized management of multiple UPS systems;

Relay Card – MS: Provides UPS status relay output, emergency stop function, and a second serial port;

Network and ModBus Card – MS: Integrate SNMP, HTML, and ModBus/JBus monitoring functions.
