HONEYWELL HCiX series touch panel operation interface

The Honeywell HCiX series touch panel operation interface (including HCiW/HCIU sub models) is a touch control terminal suitable for industrial control, providing a variety of color TFT LCD screens from 4.3 inches to 15.0 inches. The core is equipped with a 32-bit RISC CPU, with front protection up to IP65. It comes standard with RS-232C, RS-422/485, Ethernet communication interface and supports Profibus optional installation. It has functions such as multilingual support, large capacity data storage, custom graphic design, etc. The working temperature covers * * -10 ℃ to 60 ℃, and can be adapted to mainstream PLC brands such as Honeywell, Schneider, Rockwell, Siemens, etc. Different models have differentiated designs in resolution, power supply mode, power consumption, and storage configuration. It is also equipped with XDesignerPlus * * design tool to meet the requirements. Monitoring and operational requirements for industrial scenarios.

Product positioning and core design

Core purpose: Through color LCD touch screen and custom graphics, access to all functions of industrial controllers, device monitoring and parameter operation can be achieved, replacing traditional keyboards and improving operational convenience.

Model system: The main series is HCiX, including HCiW (widescreen version) and HCiU sub models, with more than 10 models ranging from 4.3 inches to 15.0 inches in screen size. Different models have differentiated designs in resolution, power supply, and configuration.

Core hardware: The entire series comes standard with a color TFT LCD screen (65536 colors), analog/resistive touch screen, and 32-bit RISC CPU (ensuring high-speed graphics processing); The front shell has a protection level of IP65F and can be used in harsh industrial environments such as humidity and dust.

Core functional characteristics

Operation and Design

Touchscreen allows for direct modification of device parameters, making operation more convenient;

Standard XDesignerPlus design tool, supporting custom graphic design, providing rich design objects such as numerical values, indicator lights, alarms, keyboards, charts, animations, etc., without the need for register addressing to select variables;

Multi language support: The screen can directly switch languages, supports English/Korean/Chinese, and is compatible with Windows system fonts.

communication capability

Standard interfaces: RS-232C, RS-422/485 serial port, Ethernet (10/100Base-T);

Optional interface: Profibus communication adapter, some models support Devicenet and CC Link (optional in the future);

The custom interface can be downloaded through RS-232C, Ethernet, USB, and supports USB storage/printers and other peripherals.

Data Storage and Management

Optional CF/SD card and USB storage for large capacity data recording. The recorded data is saved in CSV format and can be analyzed and printed using MS Excel/CSV reader;

Support USB storage for cross device transfer of configuration files, fonts, and formulas, with a front USB port on the screen to enhance operational convenience;

You can quickly download/upload configuration files through the USB port.

Printing function: The entire series supports roll printers (RS232), and most models support USB port printing (PCL Level 3 language). Only HCiX15-TE does not have USB printing function.

General technical specifications (unified/basic requirements for the entire series)

General parameters of technical indicators

Working temperature -10 ℃~60 ℃

Storage temperature -20 ℃~70 ℃

Environmental humidity ≤ 85% RH (no condensation)

Insulation resistance 10 M Ω

Grounding requirement Class 3, grounding resistance * * ＜ 100 Ω**

Anti noise capability 1000/1500 Vp-p pulse noise (pulse width 1 μ s, model differentiation)

Anti vibration ability 10 ≤ F ≤ 25Hz, X-Y-Z three-axis 1G vibration

Protection level front IP65F

Certification CE (full series), UL (some models)

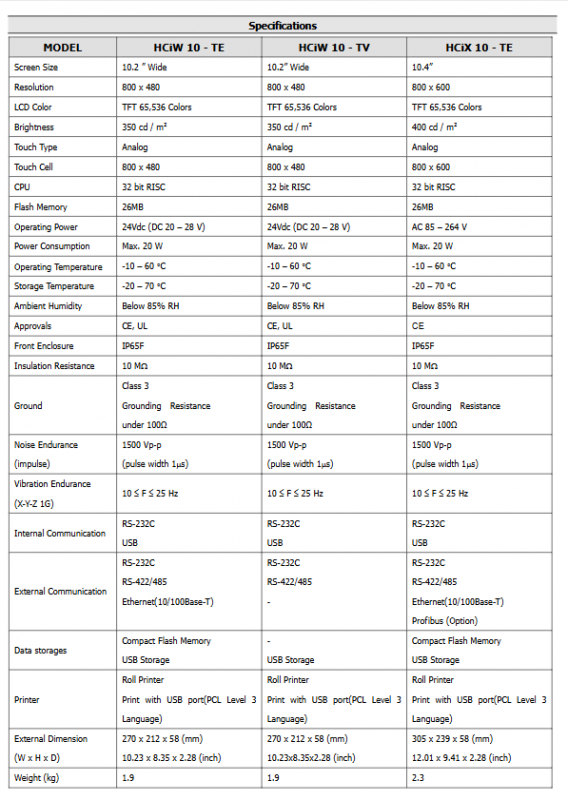

Core technical parameters by model (key differences)

The core differences of this series are concentrated in screen parameters, power supply, flash memory, power consumption, and storage configuration. The following are the key parameters of each gear representing the model:

Model Screen Size/Type Resolution Brightness (cd/m ²) Flash Power Supply Maximum Power Consumption Core Storage Configuration

HCiW04-TE 4.3 “widescreen TFT 480 × 272 350 6MB 24Vdc 15W USB storage

HCiX05-TE 5.7 “TFT 320 × 240 450 6MB 24Vdc 15W CF card+USB

HCiW07-TE 7 “widescreen TFT 800 × 480 350 26MB 24Vdc 15W SD card+USB

HCiW10-TE 10.2 “widescreen TFT 800 × 480 350 26MB 24Vdc 20W CF card+USB

HCiX10-TE 10.4 “TFT 800 × 600 400 26MB AC85-264V 20W CF card+USB

HCiX12-TE 12.1 “TFT 800 × 600 380 26MB AC85-264V 20W CF card+USB

HCiX15-TE 15.0 “TFT 1024 × 768 350 26MB AC85-264V 25W CF card+USB

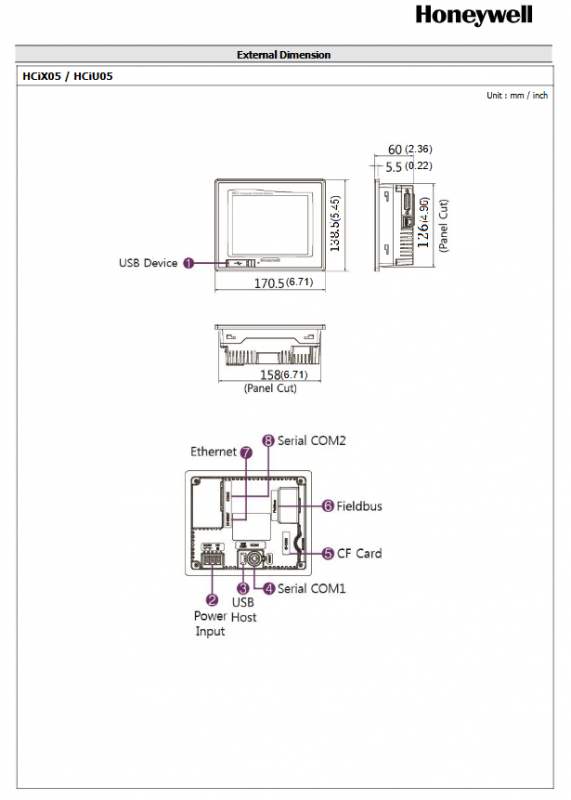

Installation size

The document provides the external dimensions (W × H × D, mm/inch) and panel opening dimensions for the entire series of models. The core model opening dimensions are as follows:

Model Panel Hole Size (W × H, mm) Weight (kg)

HCiX05 158×126 0.7

HCiW07 199×129 0.8

HCiX08/HCiW08 222×168 1.3

HCiX10 295×229 2.3

HCiX15 355×286 3.2

PLC adaptability

The HCiX series is compatible with mainstream industrial PLC brands and supports multiple protocols and connection methods (CPU port, expansion module, 1: N multi machine, Ethernet). The core compatible brands and series are as follows:

Honeywell: GH1000/500, HC900, Master Logic 100R/200/50, BACnet;

Schneider (Modicon): Modbus, TWIDO, LCAA/LMDA series Modbus TCP；

Rockwell (AB): PLC5, SLC500, Control Logix;

Siemens: SIMATIC S7-300, Profibus DP (optional module).

Note: The PLC series adaptation will continue to be updated, and other protocols can be consulted with Honeywell official.
