EATON Crane Control System Complete Guide

Overview

The technical catalog of Cutler Hammer brand crane control products under Eaton focuses on the braking, control, limit and circuit protection requirements during crane operation, covering three core product systems. It provides complete specifications, selection methods, installation requirements and accessory information, suitable for supporting and maintaining cranes, winches and other equipment in industrial scenarios.

Core Product Details

（1） Heavy Duty Brakes

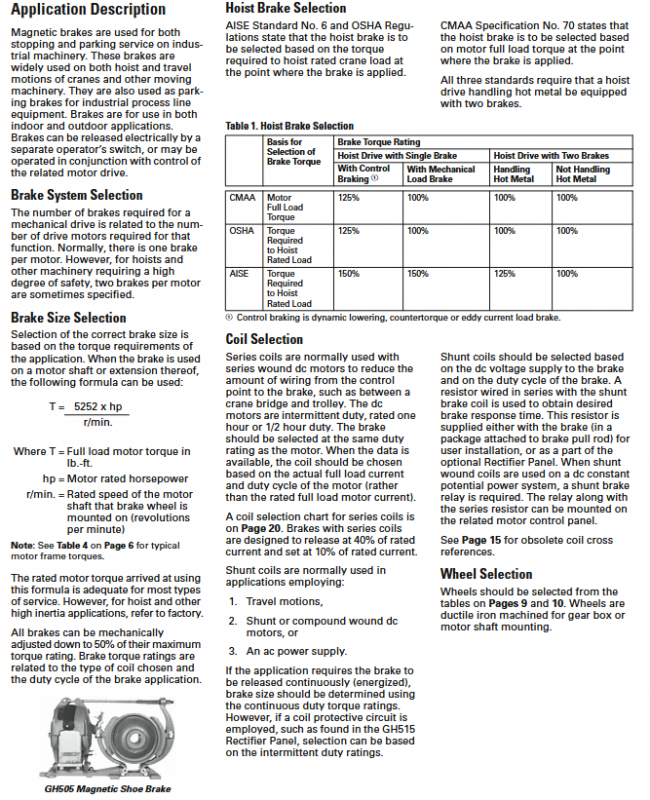

The core product is the GH505 series electromagnetic shoe brake, which is a heavy-duty braking solution designed specifically for cranes and winches.

Specific parameters/descriptions of key characteristics

7 types of AISE standard sizes: 8/10/13/16/19/23/30 inches (203-762mm)

Torque range of 10-9000 lb. – f., mechanically adjustable to 50% of maximum torque

Operation mode: electric release (DC coil), spring braking, automatic braking upon power loss (fail safe design)

Response time release and braking time ≤ 0.5 seconds

Structural material: ductile iron brake wheel (high temperature resistant), stainless steel coil shell (resistant to environmental erosion), asbestos free lining

Standard certification complies with AISE No.6/11, NEMA STD.2-220, CMAA 4.9 standards

Suitable for DC coil of power supply, optional GH515 rectifier panel suitable for AC power supply

Optional accessories include weatherproof housing, NEMA 4 sealed housing, manual release lever, torque measuring instrument

（2） Master and Limit Switches

Two types of products are used for the operation control and stroke limit of cranes to ensure the safe operation of equipment.

Command switch

Type F/GH101: Supports 6/12/16 circuits, maximum 6-speed, can be operated by a single menu or joystick, NEMA 3 protection level, voltage up to 250V, current DC 30A (closed)/10A (continuous).

Type C/GH103: Maximum 6 circuits, 3-speed, optional open or NEMA 1 enclosure, voltage up to 250V, current DC 0.6A (250V inductor)/AC 5A (115V).

limit switch

Type Core Parameters Applicable Scenarios

Crane power limit switch (P50-P500) power range 50-500HP, AC/DC adaptation, NEMA 3 protection crane hook anti roll

Type E84 heavy-duty control limit switch with a maximum voltage of 600V and a current of 1.25A (250V DC continuous) for conveyor and mobile machinery stroke control

High speed limit switch (14977 series) with a maximum operating speed of 1200 feet per minute, 3-circuit non overlapping contact high-speed crane trolley

Foot operated/rope type limit switch mechanically triggered, NEMA 7/12 protection factory heavy equipment emergency stop/safety limit

（3） Contactors and Relays

The core products for on/off control, overload, and low voltage protection of crane circuits are as follows:

contactor

Type C80 DC contactor: current 5-1800A, voltage 600Vdc, mechanical life 20 million times, electrical life 500000 times, supports surface or elevated installation.

Type C82 Ltl Inductive Time Limited Contactor: Current 5-810A, dual coil design, used for acceleration or reverse braking control.

KD/KS series DC contactor: current 5-900A, blade edge pivot design (dustproof), modular head component, supports direct installation at the front end.

Relays and timers

Low voltage monitoring relay (LVMR): monitors the bus voltage of 230-270VDC, with a response time of 40 milliseconds, to prevent power loss when the crane descends.

DC overload relay: 115/230Vdc coil, supports 4/8 circuits, with a continuous current of 10A.

Magnetic overload relay (C304 series): current 1.5-6500A, inverse time or instantaneous trip, manual/automatic reset optional.

C84 static online timer: timing range 0.05-180 seconds, output current 0.75A (steady state)/10A (impulse).

Key requirements for selection and installation

Selection criteria: The model should be determined based on the motor power, torque requirements (braking type), circuit voltage/current (contactor type), travel range (limit switch type), and environmental conditions (protection level) of the equipment.

Installation specifications: It must comply with the National Electrical Code (NEC) and local industrial standards in the United States, and protective enclosures must be installed for outdoor use.

Accessory adaptation: Contactors need to be equipped with auxiliary contacts and mechanical interlocks; When adapting DC equipment to rectifier panels, attention should be paid to resistance matching.

Accessories and replacement parts

General accessories: rectifier panel (GH515 series), coil resistor kit, mechanical interlocking component, wiring terminal.

Replacement parts: brake shoe lining, contactor contacts, relay coils, limit switch contacts. The document provides detailed part numbers and cross reference tables.
