SAIA PCD1 series programmable controller

Overall positioning and common characteristics of the product

The PCD1 series is a small flat programmable controller launched by SAIA, with a core focus on small scene automation control requirements. It emphasizes high integration, modular expansion, and multi protocol compatibility. The three product lines share the following core commonalities:

Power supply and environment: working voltage 24VDC (± 20%~+25%, including 5% ripple), working temperature 0-55 ℃, protection level IP20, suitable for industrial and civilian control environments;

Basic communication: USB 1.1 (12Mbit/s) and RS-485 (up to 115kbit/s) interfaces are standard, supporting web/IT functions such as FTP, web server, E-Mail, SNMP, etc;

Data backup: Equipped with a replaceable lithium battery (RENATA CR 2032, with a lifespan of 1-3 years) to ensure that data is not lost;

Programming and configuration: Supports PG5 software programming, can print labels through SBC LabelEditor, and provides EPLAN macros for engineering design;

Extended compatibility: Both support PCD7 and W600 analog output modules (0~10V, 12 bit resolution), and can be extended to BACnet, LON IP, and other protocols.

Comparison of Core Specifications for Three Major Product Lines

comparative dimension  PCD1.M2xxx（M2160/M2120/M2020） PCD1.Room（M2110R1） PCD1.M0160E0（E-Controller）

Core positioning: Universal small and medium-sized automation room automation/HeaVAC electrical cabinet dedicated (energy consumption monitoring)

Integrated I/O quantity: 18 channels, 24 channels, 18 channels

Number of expansion slots 2 (I/O 0/1) 1 (I/O 0) None (only supports slot A interface expansion)

Standard Ethernet M2160/M2120: with (10/100M dual port switch); M2020: None (10/100M dual port switch) Yes (10/100M dual port switch)

Program memory (Flash) M2160:1MB; M2120/M2020：512KB 256KB 1MB

Working memory (RAM) M2160:1MB; M2120/M2020：128KB 128KB 1MB

File system capacity M2160:128MB; M2120/M2020：8MB 8MB 128MB

Special function supports RIO expansion (up to 50 I/O channels), supports 14 bit high-precision analog input, pre installed S-Monitoring energy consumption monitoring function

Dimensions (W x H x D) 142 x 226 x 49mm 142 x 226 x 49mm 142 x 142 x 142 x 60mm

Installation method: Double 35mm DIN rail or flat installation Double 35mm DIN rail or flat installation Single 35mm DIN rail or flat installation

Detailed configuration of each product line

（1） PCD1.M2xxx (Universal Type)

I/O interface details

Input: 6 digital inputs (including 4 normal+2 interrupt, 15~30VDC, 8ms/0.2ms filtering), 2 analog inputs (-10~+10VDC/0~± 20mA/Pt1000, etc., 12 bit resolution);

Output: 4 digital outputs (24VDC/0.5A), 1 PWM output (24VDC/0.2A), 4 configurable I/O (digital input/output), 1 watchdog relay (48VAC/DC, 1A).

scalability

I/O Expansion: Supports PCD2.M5 series I/O modules, which can be expanded to 50 I/O channels through RIO (PCD3. T66x/T76x);

Communication Expansion: Two expansion slots can be used to install PCD2.F2xxx series modules, supporting BACnet MS/TP, LON WORKS, DALI and other protocols, and can expand up to four communication interfaces;

Storage Expansion: Slot M1 can install PCD7.Rxxx module, supporting 4MB~128MB file system expansion, or BACnet/LON IP firmware upgrade.

Typical applications: Control of small and medium-sized automated production lines, upgrading and retrofitting of existing equipment, multi protocol gateways (such as connecting EIB/KNX and M-Bus), and communication interfaces for district heating networks.

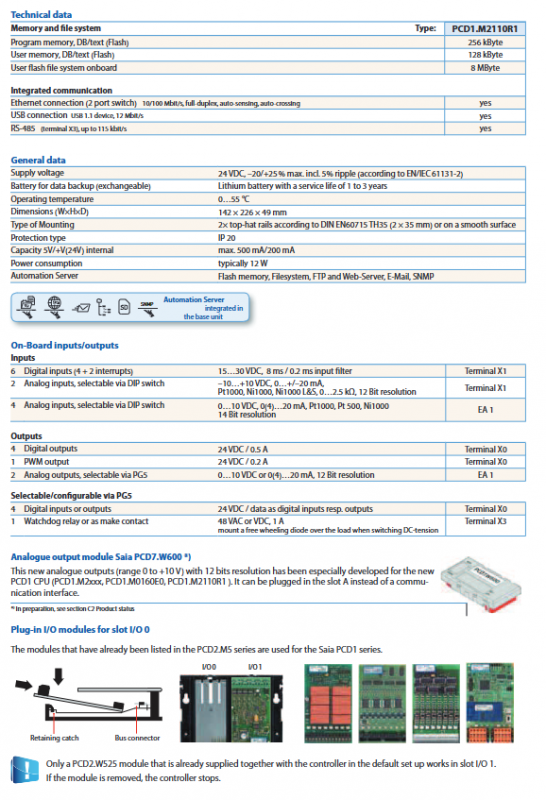

（2） PCD1.Room (PCD1.M2110R1, dedicated for room automation)

I/O interface details

Input: 6 digital inputs (including 4 normal+2 interrupt), 6 analog inputs (2 12 bit+4 14 bit, supporting 0~10VDC/0 (4)~20mA/Pt1000, etc.);

Output: 4 digital outputs (24VDC/0.5A), 1 PWM output (24VDC/0.2A), 1 configurable I/O, 2 analog outputs (0~10VDC/0 (4)~20mA, 12 bit resolution), 1 watchdog relay.

Expansion limitation: Only 1 I/O expansion slot, default equipped with PCD2.W525 module (controller stops working after removal), can install 1 PCD2.F2xxx communication module (supports 2 communication interfaces).

Core advantage: Supports EN 15232:2012 energy efficiency rating standards, and can integrate room lighting, shading, and air conditioning systems through multiple protocols to achieve energy-saving room automation.

Typical applications: conference room/office lighting control, sunshade linkage, fan coil unit adjustment, air quality monitoring, window status monitoring.

（3） PCD1.M0160E0 (E-Controller, dedicated for electrical cabinets)

I/O interface details

Input: 6 digital inputs (including 4 normal+2 interrupt), 2 analog inputs (default configuration Ni1000, supports -10~+10VDC/0~± 20mA, etc., 12 bit resolution);

Output: 4 digital outputs (24VDC/0.5A), 1 PWM output (24VDC/0.2A), 4 configurable I/O (default digital input), and 1 watchdog relay.

Core features: Pre installed with S-Monitoring energy consumption monitoring application, energy consumption data collection and recording can be achieved without additional programming, compact size (142 × 142 × 60mm), suitable for installation in small spaces such as distribution cabinets (with reserved heat dissipation space of 55mm above/75mm below).

Expansion capability: No I/O expansion slot, Slot A can install PCD7. F1xx series communication modules (supporting RS-232/RS-485/Belimo MP Bus, etc.), Slot M1 supports storage and BACnet/LON IP firmware expansion.

Typical applications: Energy consumption data collection for distribution cabinets, EnOcean/KNX/BACnet protocol gateway, and micro control of small electrical equipment.

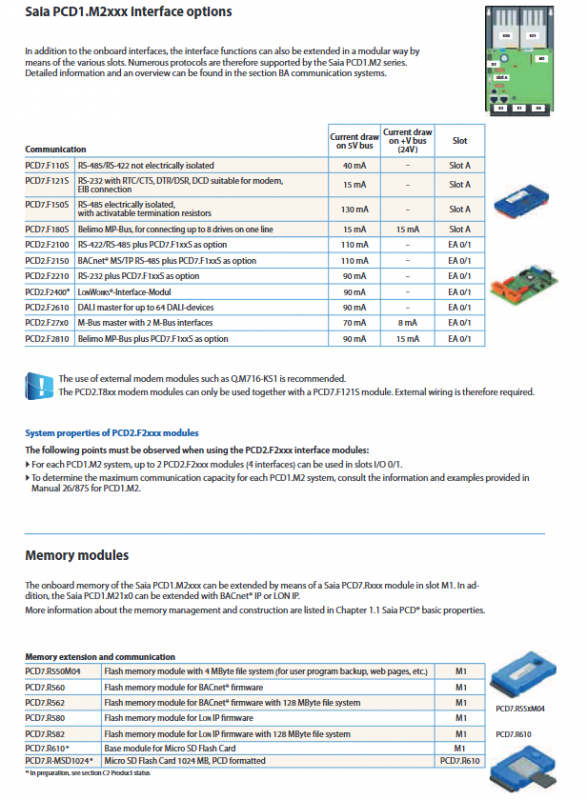

Key expansion modules and accessories

Storage Expansion Module (PCD7. Rxxx)

|Module model | Function description | Adaptation slot|

|PCD7.R550M04 | 4MB file system (program backup/web storage) | M1|

|PCD7.R560/R562 | BACnet firmware (R562 with 128MB file system) | M1|

|PCD7.R580/R582 | LON IP firmware (R582 with 128MB file system) | M1|

|PCD7.R610+R-MSD1024 | 1GB Micro SD Card Storage (PCD Format) | M1|

core components

Battery: 450748170 (RENATA CR 2032 lithium electronic battery);

Terminal block: 440550890 (11 poles), 440550870 (9 poles), etc., suitable for different terminals (X0~X3);

Shell: 410477590 (no logo shell, customizable film).
