Schneider Electric Pro face STM6000 series 7-inch widescreen modular HMI

Product basic information

PFXSTM6400WAD belongs to Schneider Electric’s Pro face STM6000 series, which is a 7-inch widescreen modular HMI for industrial automation. It is a positioning standard human-machine interface used for equipment monitoring, parameter setting, and on-site operation.

Project parameters

Product Series STM6000 Series

Screen size 7-inch widescreen

Product model PFXSTM6400WAD

Product Type Modular DC Analog HMI

Display and touch specifications

Detailed values of parameter items

Display type: TFT color LCD

Resolution 800 × 480 (WVGA)

Effective display area 154.08mm × 85.92mm

Display 16 million colors

Backlight lifespan ≥ 50000 hours

Brightness adjustment with 16 levels adjustable

Touch type analog resistive (single point)

Touch resolution 1024 × 1024

Touch lifespan ≥ 1 million times

Electrical specifications

Detailed values of parameter items

Rated input voltage 24VDC

Input voltage range 19.2-28.8VDC

Allow voltage drop ≤ 5ms

Maximum impulse current ≤ 30A

The maximum power consumption of the display module is 3.6W; no external power supply ≤ 1.3W

The maximum power consumption of the rear module is 6.8W; no external power supply ≤ 3.5W

Voltage withstand 1000VAC/20mA, 1 minute

Insulation resistance ≥ 10M Ω under 500VDC conditions

Interface specifications

Ethernet: Dual RJ45 interfaces, supporting 10BASE-T/100BASE-TX

USB：

USB 2.0 Type-A ×1（5V/500mA）

USB 2.0 Micro-B ×1

Communication distance: USB and Ethernet both * * ≤ 5 meters**

Structure and Installation

Project parameters

Front panel protection IP65F

Rear protection IP20

Protection certification UL 50/50E, Type 1/4X/12/13 (indoor)

Cooling method: natural air cooling

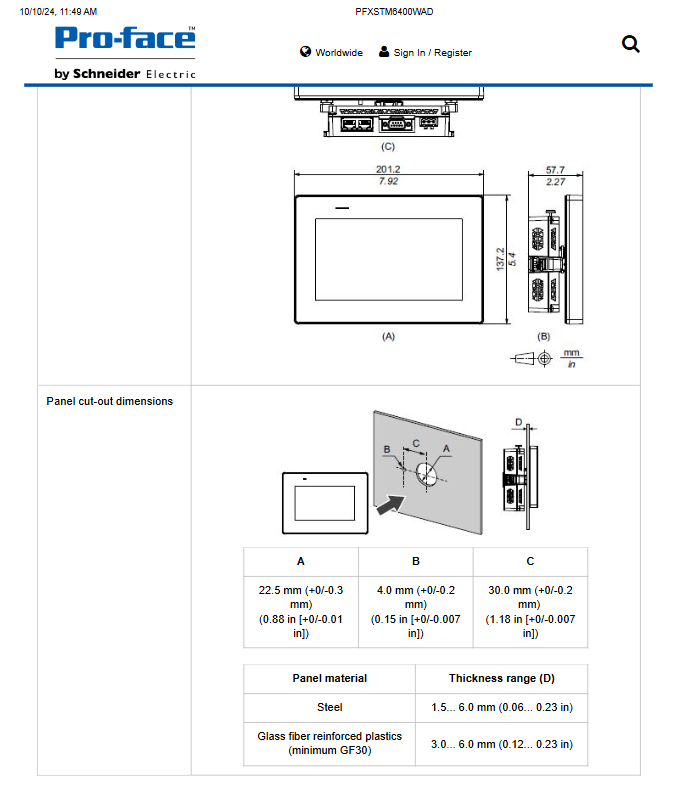

Dimensions (display) 201.2 × 137.2 × 17.1mm

Exterior dimensions (rear) 145.6 × 108.23 × 41.4mm

Panel opening with a diameter of 22.5mm

Panel adaptation thickness steel 1.5-6.0mm; GF30 plastic 3.0-6.0mm

Weight display part ≤ 0.49kg; rear part ≤ 0.27kg

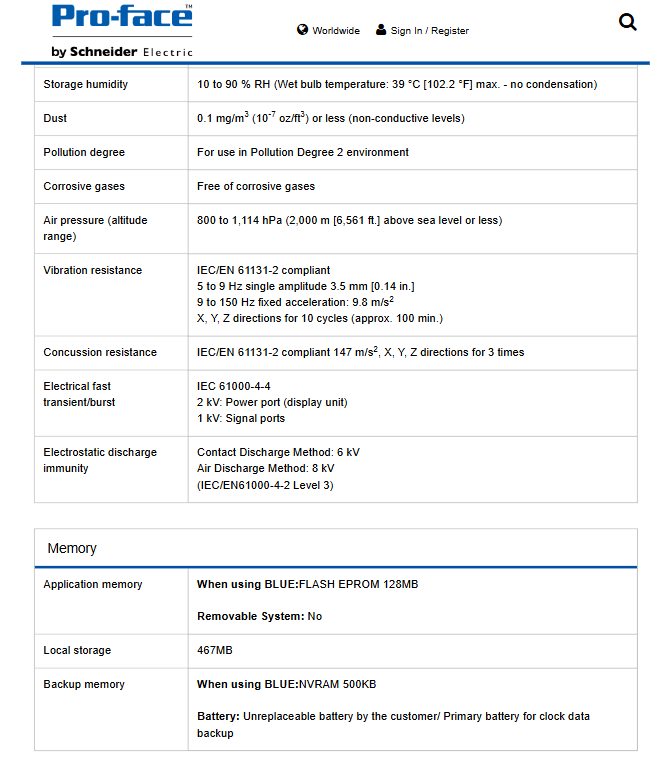

Environment and reliability

Working temperature: 0-50 ℃

Storage/working humidity: 10-90% RH (no condensation)

Pollution level: Level 2

Altitude: ≤ 2000m

Vibration/Shock: Complies with IEC/EN 61131-2

EMC: electrostatic contact 6kV/air 8kV, electric fast transient pulse train 2kV

Certification: UL, CUus, Class1 Div2, RINA, ERC, KC, etc

Storage and Backup

Storage Type Capacity

Program storage (FLASH) 128MB

Local storage 467mB

Backup storage (NVRAM) 500KB

The clock backup battery is built-in and cannot be replaced
