Typical application cases of NI CompactRIO and sbRIO products

Platform positioning and core architecture

Platform positioning: NI RIO reconfigurable I/O platform, a highly reliable embedded system for testing, measurement, and control

Core components: Real time processor (Intel/Arm)+Xilinx FPGA+C series I/O modules

Operating System: NI Linux Real Time, supports deterministic running and SELinux security enhancements

Programming tool: LabVIEW, supports unified development of processors and FPGAs, without the need for HDL language

Core performance and key parameters

Control performance:>1kHz high-speed control loop, 1MS/s single channel maximum sampling rate

Environmental indicators: * * -40 ℃~70 ℃ * * Operating temperature, 50g impact, 5g RMS vibration

Module quantity: Over 70 C-series I/O modules, over 200 signal and communication modules

Storage: Maximum 16GB SSD for data recording

Hardware product system

CompactRIO controller (core model)

Model slot processor FPGA level

CRIO-9040 4 1.30GHz Dual Core Intel Atom Good

CRIO-9045 8 1.60GHz quad core Intel Atom Better

CRIO-9049 8 1.60GHz quad core Intel Atom Best

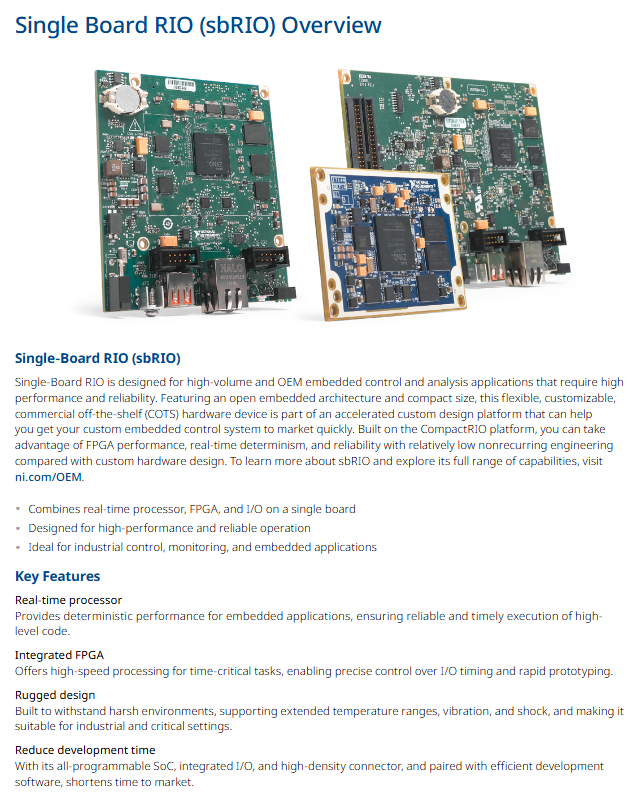

SbRIO single board controller

Form: Processor+FPGA+I/O board integration, aimed at OEM and high volume scenarios

Configuration: Up to 1.91GHz quad core Intel, 2GB DDR3L, XC7A200T FPGA

Interfaces: Ethernet, CAN FD, USB 3.1, DisplayPort, etc

Core specifications of C-series I/O modules

Analog input: up to 32 channels, 1MS/s/ch, supports voltage/current/thermocouple/RTD/strain/vibration

Digital I/O: up to 32 channels, 55ns response, supporting 5V~240V AC/DC

Communication: CAN/LIN/RS232/485, maximum speed of 1Mb/s

Development and industrial connectivity capability

Development advantage: LabVIEW graphical programming, built-in nearly 1000 signal processing and control functions

Development method: Supports LabVIEW/C/C++, can be developed through IDE such as Eclipse

Industrial protocols: Supports OPC UA, EtherCAT, Modbus, EtherNet/IP, MQTT, etc

Deployment mode: Supports headless mode, remote management, and batch updates

Typical application cases

Status monitoring: monitoring of power circuit breakers, saving over $400 million in 20 years

Structural monitoring: Distributed signal acquisition for 10 kilometers of Xiamen Jimei Bridge

Medical equipment: Robot microsurgery system, awarded as the best invention of the 2024 era

Rail Transit: London Underground Automation Testing, High Voltage Transient Analysis

6. Services and Ecology

Hardware warranty: 1-year basic warranty, optional 3-year standard/premium service

Service content: 10 working days maintenance, advanced replacement, calibration plan

Partners: Solution partners, system integrators, consultants, global network
