NACHI-FUJIKOSHI 2020 Industrial Robot Full Series Products

Brand and positioning

NACHI-FUJIKOSHI was the first industrial robot manufacturer in Japan in 1968, relying on hydraulic and machine tool technology, focusing on high speed, high precision, and high load, providing deep services for automotive manufacturing and general industry.

Core applications: loading and unloading, handling, assembly, polishing, sealing, palletizing, spot welding, seam welding, clean room transportation.

Full range of robot product lines

(1) Handling robot

Maximum reach feature of series axis load

MZ 5/6 axis 1-25kg 350-1882mm high-speed compact type, IP67， Internal materials

CZ10 6-axis 10kg 1300mm collaborative robot, ISO10218/TS15066 certified

EC 4-axis SCARA 6kg 500~700mm high-speed assembly, hollow shaft

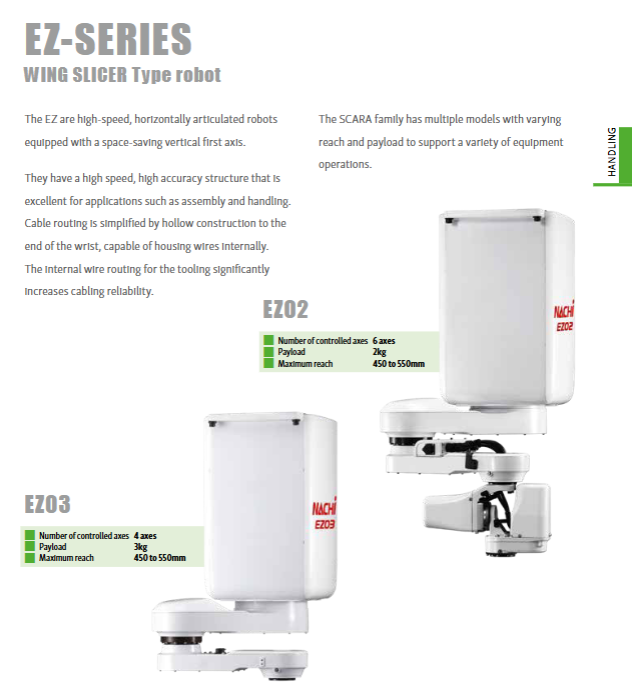

EZ 4/6 axis 2-3kg 450~550mm airfoil saves space

MC 6-axis 10~70kg 1260~2050mm Strong dustproof and moisture resistant

MR 7-axis 20~50kg 1260~2050mm flexible complex motion

MC Heavy Duty 6-Axis 280~1000kg 2771~3972mm Car Body and Other Heavy Duty Handling

(2) Palletizing PALLETISING

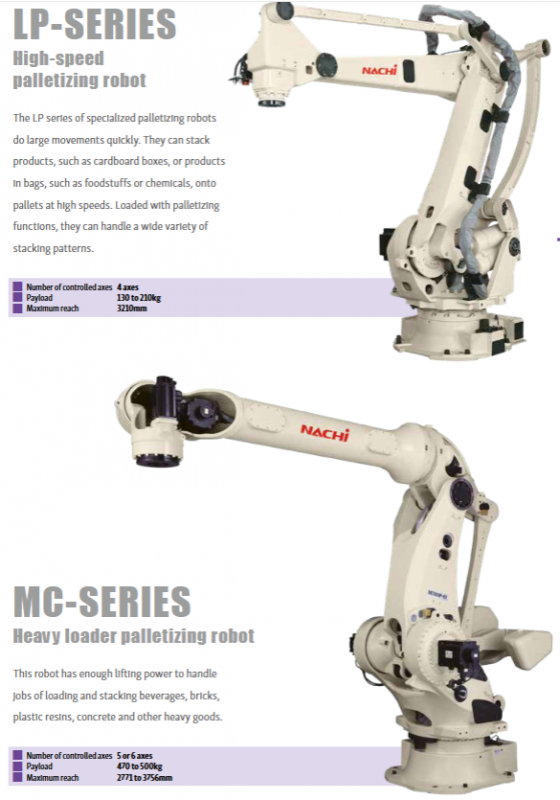

LP series: 4-axis, load 130-210kg, reach 3210mm, high-speed palletizing.

MC series: 5/6 axis, load range 470-500kg, heavy-duty palletizing.

(3) Cleanroom CLEAN-COOM

ST-C/SC-C: 6-axis, load 133-400kg, reach 2654-3623mm, ISO Class 6, used for glass substrate/panel production line.

(4) Welding Welding

SRA/SRA-H: 6-axis spot welding robot, load 100-250kg, reach 1634-3383mm.

Advantages: 30% reduction in cycle time, 15% reduction in power consumption, hollow arm wire, and the world’s only robot equipped with seam welding.

Controller system

FD11/FD18

Based on Windows, it can control up to multiple axes and supports PL d/Cat.3 security levels.

Supports fieldbus: DeviceNet, PROFIBUS, EtherCAT, CC Link.

CFD

Specially designed for MZ series, 369mm wide, with built-in base, supporting SIL3 and PL e.

CFDL

Specially designed for the EZ series, capable of controlling up to 4 robots.

Core selection and software

Visual sensor NV Pro: 2D/3D positioning, disorderly grasping.

Force sensor: assembly, pressing, grinding and flexible control.

FDONDESK2: Offline programming, simulation, CAD import and generation program.

Other: servo hand, slider, lifting platform, welding built-in timer.

Global Service and Support

Covering global technology centers and branches in Japan, China, Europe, America, Southeast Asia, and other regions.

Service content: training, installation and debugging, emergency response, remote monitoring, regular inspections, major repairs, spare parts supply.

Key questions and answers

Question 1: What is the most representative collaborative model of NACHI robot, and what are the core safety and performance parameters?

Answer: CZ10 is a NACHI high-speed collaborative robot with 6 axes, a load of 10kg, and a maximum reach of 1300mm. It has passed ISO 10218-1 and TS 15066 certification and has dual safety features of contact stop and structural anti pinch, without the need for safety fences.

Question 2: What are the core advantages of the NACHI spot welding robot SRA series compared to traditional solutions?

Answer: The SRA series achieves a 30% reduction in cycle time and a 15% reduction in power consumption. It uses a hollow arm with built-in cables to extend its lifespan and supports high-density layout. It is the only robot platform in the world that can achieve seam welding technology.

Question 3: What is the load and working radius range covered by the NACHI robot, and which scenarios do they correspond to?

Answer: The load covers 1kg (small assembly)~1000kg (car body), with a working radius of 350mm (compact workstation)~3972mm (heavy-duty palletizing), fully covering the automation needs of 3C electronics, automotive, general industry, panel display, and heavy industry scenarios.
