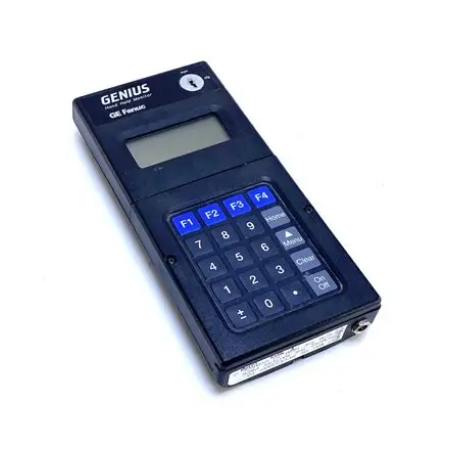

GE IC660HHM501 Portable Genius I/O Diagnostic Display

GE IC660HHM501 Portable Genius I/O Diagnostic Display

Product Overview

The GE IC660HHM501 portable Genius I/O diagnostic display is a field diagnostic and debugging device specially designed by General Electric (GE) for Genius I/O systems. As a “mobile diagnostic expert” for industrial automation systems, it is mainly used for status monitoring, fault diagnosis, parameter configuration, and data reading of I/O modules in Genius bus networks. This device adopts a portable design, equipped with an intuitive LCD display and operation buttons, supports offline configuration and online diagnosis dual modes, and can quickly locate system faults without connecting to the upper computer, greatly improving the maintenance efficiency and fault handling speed of Genius I/O system. It is widely used in industrial scenarios such as manufacturing production lines, energy facilities, chemical equipment, etc. that adopt Genius bus architecture.

Core Features

1. Accurate and efficient online diagnostic capability

It can be directly connected to the Genius bus network to monitor the communication status of the entire network and the working parameters of each I/O module in real time, including module operation status, input/output signal values, bus communication rate, signal strength, etc. When the system malfunctions, the equipment can quickly identify the type of fault (such as module offline, communication interruption, signal abnormality, etc.), and display the address, fault code, and troubleshooting suggestions of the faulty module through sound and light alarms and screen pop ups. This improves the accuracy of fault location to the level of a single module and greatly shortens the troubleshooting time.

2. Convenient offline configuration and debugging functions

Support parameter configuration of Genius I/O modules in offline mode, including module address setting, I/O signal type definition, filtering time adjustment, alarm threshold setting, etc. After the configuration is completed, the parameters can be directly downloaded to the target module without carrying a laptop or specialized software, especially suitable for debugging scenarios without power supply or network on site. Simultaneously supporting parameter backup and recovery functions, the configuration parameters of normal modules can be saved to the device for subsequent batch configuration of modules of the same type, improving debugging efficiency.

3. Portable design and user-friendly operation

Adopting a lightweight body design, weighing only about 0.8kg, equipped with anti slip handles and portable hanging ropes, making it easy for staff to carry around to various areas on site. The device is equipped with a 3.5-inch high-definition LCD display screen, with a display resolution of 320 × 240, supporting backlight adjustment, and can display information clearly in strong light or dim environments; The operation panel adopts silicone buttons, which are comfortable to touch and wear-resistant. It is equipped with dedicated function shortcut keys, which can switch diagnostic mode, parameter configuration, data recording and other functions with one click, simplifying the operation process.

4. Comprehensive Genius bus compatibility

Fully compatible with all modules of the GE Genius I/O series, including digital I/O modules, analog I/O modules, special function modules (such as temperature acquisition, pulse output modules), and Genius bus controllers. Supports multiple communication rates of Genius bus (1Mbps, 2.5Mbps, 5Mbps), automatically recognizes bus communication rates and matches connections without manual configuration, ensuring seamless integration with different versions of Genius systems.

5. Reliable endurance and environmental adaptability

Built in 2000mAh large capacity lithium battery, supports continuous operation for more than 8 hours, equipped with fast charging function, can restore 80% of battery power in 2 hours of charging; Simultaneously supporting external 24V DC power supply to meet long-term on-site work requirements. The equipment adopts industrial grade protection design, with a shell protection level of IP54, which can resist dust intrusion and water splashing. The working temperature range covers 0 ℃~55 ℃, suitable for complex environments such as factory workshops and outdoor equipment areas.

6. Practical data recording and analysis functions

Support real-time data recording function, which can store monitored I/O signal values, module status, fault information and other data by timestamp, with a storage capacity of up to 100000 records. The data can be exported to a computer through a USB interface and used in conjunction with GE’s dedicated analysis software for trend analysis and fault tracing, helping technicians summarize fault patterns and optimize system maintenance plans. Simultaneously supporting real-time data curve display, visually presenting the trend of analog signal changes, making it easy to observe signal fluctuations.

Key technical parameters

Product Model

GE IC660HHM501

Compatible Systems

GE Genius I/O Bus System

Compatible module

Genius series digital/analog I/O modules, special function modules

Communication speed

1Mbps, 2.5Mbps, 5Mbps (automatic recognition)

display screen

3.5-inch LCD display with a resolution of 320 × 240, supporting backlight adjustment

Operation method

Silicone buttons with functional shortcut keys

Diagnostic function

Module status monitoring, I/O signal reading, fault alarm, communication diagnosis

Configuration function

Module address setting, I/O parameter configuration, parameter backup and recovery

data storage

Supports 100000 data records and can be exported via USB

power supply method

Built in 2000mAh lithium battery; External 24V DC power supply

battery life

Lithium battery operates continuously for ≥ 8 hours when fully charged

Charging time

≤ 2.5 hours (full)

Protection level

IP54

Working temperature range

0℃ ~ 55℃

Storage temperature range

-20℃ ~ 60℃

relative humidity

5%~95% (no condensation)

communication interface

Genius bus interface (RJ45), USB 2.0 interface

Mechanical dimensions (length x width x height)

Approximately 180mm × 100mm × 50mm (subject to actual product)

weight

About 0.8kg (including battery)

Applicable scenarios

The GE IC660HHM501 diagnostic display, with its portability, precise diagnostic capabilities, and comprehensive compatibility, has become the core tool for maintaining and debugging Genius I/O systems. Typical applications include:

-Daily maintenance of production lines: In production lines using Genius I/O systems such as automotive manufacturing and electronic assembly, staff can carry the equipment for regular inspections, monitor the status of each I/O module in real time, and detect potential faults (such as signal drift and poor contact) in advance to avoid sudden shutdowns of the production line.

-Emergency handling of system failures: When the Genius I/O system experiences communication interruptions, abnormal I/O signals, or other malfunctions, technicians can quickly bring equipment to the site without the need to set up a temporary debugging environment. They can directly connect to the bus for fault location, quickly troubleshoot problems, and restore system operation.

-New system installation and debugging: Used for module address allocation, parameter configuration, and system integration debugging when creating or expanding Genius I/O systems. The offline configuration function is used to complete module parameter settings in advance, and the online diagnostic function is used to verify whether module communication and signal transmission are normal, thereby improving debugging efficiency.

-Remote equipment maintenance: For Genius I/O systems deployed in remote areas (such as oilfield wellhead monitoring and remote substations), the portability and long battery life of the equipment can meet on-site maintenance needs, without the need to carry bulky debugging computers, reducing maintenance difficulty and costs.

-Regular equipment calibration: In industries such as chemical and pharmaceutical industries that require high I/O signal accuracy, it is used to regularly calibrate the signal output and acquisition accuracy of Genius analog I/O modules. By comparing with standard instruments, the module performance is ensured to meet process requirements.

-Operator training: As a teaching tool for Genius I/O systems in industrial automation training scenarios, it intuitively displays the working status and signal changes of modules, helping students quickly understand system architecture and fault diagnosis methods.

Instructions for use

1. Before use, it is necessary to confirm that the device battery is fully charged. If used for long-term work, it is recommended to carry an external power source; Before the first use, the battery needs to be activated and charged to ensure stable battery life.

When connecting to the Genius bus, it is necessary to first confirm the current communication rate of the bus. Although the device supports automatic recognition, it is recommended to turn off the bus main controller or take safety measures before connecting to avoid affecting the normal operation of the system (except for online diagnosis).

When configuring module parameters, it is necessary to strictly follow the system design requirements to set the address and parameters. After the configuration is completed, it is recommended to immediately backup the parameters to the device to avoid parameter loss; Before modifying key parameters (such as alarm thresholds), it is necessary to record the original parameters for recovery in case of any issues.

When used in environments with dense dust, humidity, or liquid splashes, attention should be paid to protecting the equipment interface and avoiding the entry of pollutants; Clean the dust and stains on the surface of the equipment in a timely manner after use, and store it in a dry and ventilated environment.

5. When exporting data, it is necessary to use the original USB data cable. It is recommended to store the exported data packets in categories and label the time and device information for subsequent analysis; Regularly clean the historical data stored inside the device to avoid insufficient storage space.
