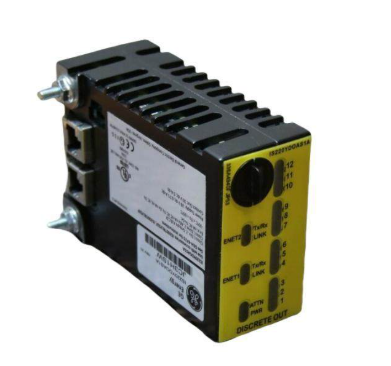

GE IS220PDOAH1A 336A4940CSP2 Discrete Output Module

GE IS220PDOAH1A 336A4940CSP2 Discrete Output Module

Basic overview of module

The discrete output module, as an important component of PLC (programmable logic controller) and DCS (distributed control system), has the core function of converting the digital control signals of the control system into physical signals that can drive external actuators such as relays, solenoid valves, indicator lights, etc. IS220PDOAH1A 336A4940CSP2 is developed based on GE’s mature control technology platform and optimized for the complex environment of industrial sites. It can achieve long-term stable operation under harsh conditions such as high temperature, high humidity, and strong electromagnetic interference, providing strong guarantees for the continuity and safety of industrial production.

In the model of this module, the “IS220” series represents it as a standard I/O module for GE Mark VIe control system. “PDOA” specifies its “discrete output” functional attribute, and subsequent code is used to distinguish specific hardware configuration, interface type, and production batch information, ensuring accurate matching and replacement of the module in the system.

Core technical parameters

Technical parameters are the core manifestation of module performance. The key parameters of IS220PDOAH1A 336A4940CSP2 are as follows, providing precise basis for system design and integration:

1. Output specifications

-Number of output channels: Typically configured with 16 discrete output channels, supporting independent control of a single channel to meet the parallel driving requirements of multiple actuators.

-Output signal type: direct current (DC) output, commonly rated output voltage is 24V DC, suitable for mainstream low-voltage actuators in the industrial field.

-Output current capability: The maximum output current of a single channel is generally 0.5A~2A (depending on the actual model), which can directly drive small relays or solenoid valves. If high current equipment needs to be driven, it can be extended through intermediate relays.

-Output mode: source or drain output (can be switched through hardware jumpers or software configuration), enhancing the compatibility of the module with different types of actuators.

2. Power supply and power consumption

-Working power supply: It usually adopts a dual power supply design, including a logic power supply (such as 5V DC, which supplies power to the internal circuits of the module) and an output power supply (such as 24V DC, which supplies power to the output channels), to improve the reliability of system power supply.

-Power consumption: Low static power consumption (generally less than 5W), dynamic power consumption varies with the load of the output channel, overall power consumption control is reasonable, and system heat dissipation pressure is reduced.

3. Environmental adaptability

-Working temperature range: -40 ℃~70 ℃, meeting the high and low temperature environmental requirements of industrial sites.

-Relative humidity: 5%~95% (no condensation), suitable for humid environments.

-Anti interference capability: Compliant with the IEC 61000 series electromagnetic compatibility standards, it has strong resistance to electromagnetic radiation and conducted interference, ensuring stable signal transmission.

4. Communication and Interface

-Communication Protocol: Supports the high-speed bus protocol (such as SynchLink) within the GE Mark VIe system, enabling real-time data exchange with the controller with communication latency as low as milliseconds.

-Physical interface: Using standard industrial connectors (such as terminal blocks or plugs), the wiring is convenient and the contact is reliable, supporting hot plugging (some models), making it easy for system maintenance and fault handling.

Core functions and features

1. High reliability design

The module adopts industrial grade components, undergoes strict aging testing and environmental adaptability testing, and has overcurrent, overvoltage, and short-circuit protection functions. When an overload or short circuit fault occurs in the output channel, the module will automatically cut off the output of that channel to prevent the fault from expanding. At the same time, the fault signal will be fed back to the controller for timely troubleshooting by operation and maintenance personnel. In addition, the module adopts optoelectronic isolation technology internally to electrically isolate the control circuit from the output circuit, effectively suppressing the impact of external interference on the control system.

2. Flexible configuration and diagnostic capabilities

Through GE’s dedicated control software (such as ToolboxST), users can flexibly configure the output channels of the module, including output logic (high level effective/low level effective), fault response mode, etc. At the same time, the module has a complete self diagnostic function, which can monitor the power status, communication status, and working status of each output channel of the module in real time. The diagnostic information is transmitted to the controller through the bus and displayed intuitively on the monitoring interface, greatly reducing the time for troubleshooting.

3. Efficient signal transmission and control

Based on the high-speed bus architecture of the Mark VIe system, the data transmission rate between modules and controllers is high, ensuring that control instructions can be quickly issued to the executing mechanism, improving the control accuracy and response speed of the system. For scenarios that require precise timing control, such as valve switching in a turbine, this module can meet strict time synchronization requirements and ensure the stability of equipment collaborative operation.

4. Convenient installation and maintenance

The module adopts a standard rack mounted installation method, with a compact size that can be integrated with other Mark VIe series I/O modules for installation, saving control cabinet space. Some models support hot swappable functionality, allowing for module replacement without shutting down the system, greatly improving system availability and maintenance efficiency.

Typical application scenarios

The IS220PDOAH1A 336A4940CSP2 discrete output module is widely used in the following industrial fields due to its stable performance and flexible configuration:

1. Power industry: used in the control system of gas turbines and steam turbines to drive actuators such as fuel valves, intake baffles, cooling water valves, etc., to achieve start stop control, load regulation, and safety protection of the unit.

2. Petrochemical industry: In the control system of refining equipment and oil and gas pipelines, drive electromagnetic valves, pump sets, valves and other equipment to achieve automated control and safety interlocking of the process flow.

3. Metallurgical industry: used for controlling steel and non-ferrous metal smelting equipment, driving heating furnace valves, conveyor rollers, hydraulic systems and other actuators to ensure stable operation of the smelting process.

4. In the field of intelligent manufacturing: driving conveyors, robotic arms, sorting equipment, etc. in automated production lines and intelligent warehousing systems to achieve automated scheduling and control of production processes.

Precautions for use and maintenance

-Before installing the module, it is necessary to confirm that the working power supply voltage, output load parameters, and module specifications match, in order to avoid module damage caused by parameter mismatch.

-When wiring, it is necessary to strictly follow the module terminal definition to ensure a secure connection and avoid signal abnormalities or equipment failures caused by poor contact.

-During the operation of the module, it is necessary to regularly check the working temperature, heat dissipation, and aging of the wiring terminals of the module, clean the dust in a timely manner, and ensure good heat dissipation of the module.

-When replacing or maintaining modules, it is necessary to first cut off the relevant power supply. If the module supports hot plugging, follow the operating procedures to avoid safety accidents caused by live operation.

-The software configuration of the module needs to be carried out through GE officially certified software to avoid configuration errors or system failures caused by the use of non-standard software.
