ABB Relay Retrofit Program for SPACOM to REX615 Product Guide

ABB has released a product guide for the replacement of SPACOM series protection relays with REX615 relays (4TLB000502 B version), which provides a switchgear lifecycle extension solution for power systems. Through the use of REX615 integrated relays and specialized retrofit accessories, rapid replacement can be achieved, supporting more than 20 SPACOM models and significantly reducing wiring and downtime. At the same time, engineering configuration, installation tools, ordering codes, and training services are provided, fully compatible with multiple protocols such as IEC 61850, meeting the needs of modern substation automation.

Replace products and compatible models

1. Replacement subject: REX615

Belonging to: * * Relion ®**  Series integrated protection and control relay

Design: Compact, withdrawable

Communication: Supports IEC 61850 (Ed1/2.1), IEC 60870-5-103, IEC 104, Modbus, DNP3

Advantages: Compatible with existing functions, expandable for protection, control, and status monitoring

2. Support replacement of SPACOM models (more than 20 in total)

SPAA/SPAC/SPAD/SPAF/SPAJ/SPAM/SPAS/SPAU full series C-type

Renovation service content

Standard configuration content

REX615 Relay+Modified Connector Kit

Complete set of technical documents

Installation personnel support

REX615 Configuration Service

Cutting tool kit

Install support frame

Cover plate (SPACOM 300 series specific)

Optional on demand

Relion ®  BIO Tester 610-611-615-620 Tester

specialized training

Engineering configuration

Configuration tool: PCM600

configuration mode

Factory default configuration

Customized pre configuration (matching original SPACOM parameters)

Parameter modification: Local HMI panel or PCM600 software

Installation accessories (core)

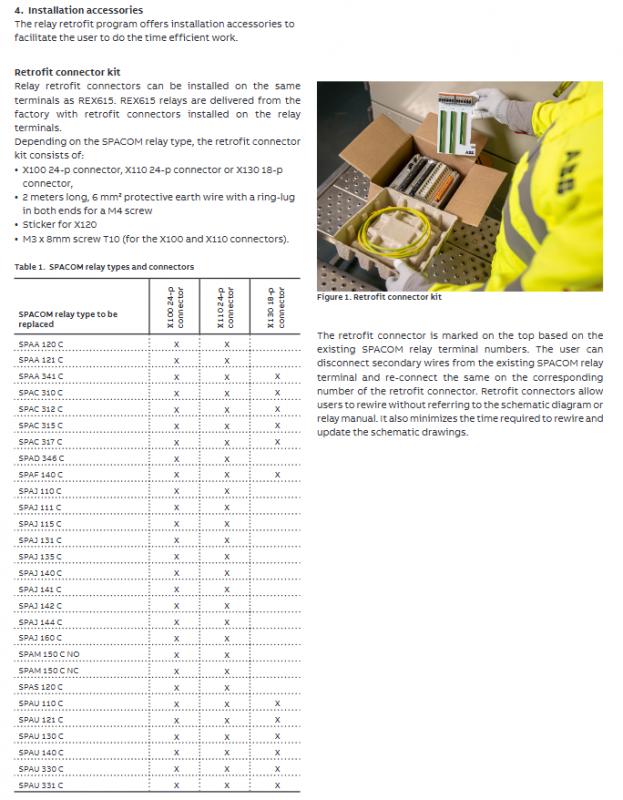

1. Modify connector kit

Model: X100 (24 needles), X110 (24 needles), X130 (18 needles)

Function: Mark according to the original SPACOM terminal number, directly plug and connect without checking the drawing

Attachment: 2-meter 6mm ² grounding copper wire, screws, labels

2. Install the support frame

Function: Temporary fixed connector, convenient for wiring, reusable

Specification: Special for 100 series and 300 series

3. Cutting tool kit

Purpose: To correct the opening size of switchgear

Ability: Cut up to 3.0mm metal plates

Composition: Battery power unit, cutting head, battery, charger

4. Cover plate

Applicable: SPACOM 300 series modification, filling the gap in opening size

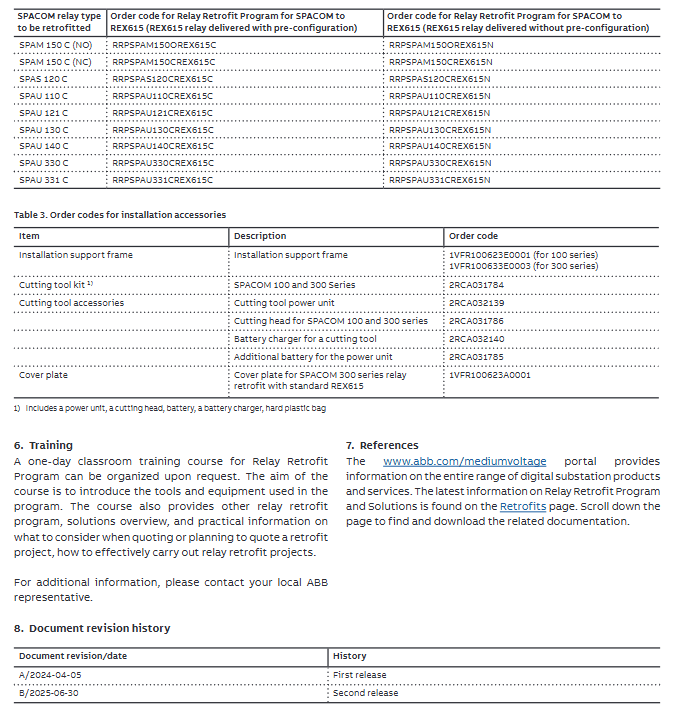

Selection and ordering

1. Ordering code for renovation plan (by SPACOM model)

Format: RRP+Model+REX615C (pre configured)/N (no pre configured)

Example: SPAJ140C → RRPSPAJ140CREX615C

2. Installation accessories ordering code

Accessory Name Ordering Code

100 series mounting bracket 1VFR100623E0001

300 series mounting bracket 1VFR100633E0003

Cutting tool kit 2RCA031784

300 series cover plate 1VFR100623A0001

Key questions and answers

Question: What is the biggest engineering advantage of this renovation plan?

Answer: The core advantage is equipped with specialized modified connectors, marked according to the original SPACOM terminal number, which can be directly plugged in without the need for redrawing drawings and extensive wiring changes. At the same time, it is matched with cutting tools and brackets to minimize power outages and installation time.

Question: What are the core technological improvements of REX615 compared to the replaced SPACOM relay?

Answer: REX615 belongs to the new generation Relion series, with a compact and withdrawable design that supports modern substation protocols such as IEC 61850. It can expand protection, control, and status monitoring functions, fully adapting to the automation needs of digital substations.

Question: What are the two modes for ordering and configuring renovation plans, and what scenarios are they suitable for?

Answer: It is divided into pre configured (C suffix) and non pre configured (N suffix); Pre configured with factory matched original SPACOM parameters, ready to use upon power up, suitable for quick replacement; No pre configuration is suitable for sites that require custom functions, and can be flexibly configured through PCM600.
