HIMMERWERK SINUS series high-frequency induction heating generator

Product Overview

The SINUS series is a high-frequency induction heating power supply launched by HIMMELWERK, designed specifically for industrial induction heating. It covers a power range of 5-25kW and a frequency range of 50kHz~2000kHz, with a total of 10 standard models that can meet different heating depths, speeds, and process requirements.

Core model and specification parameters

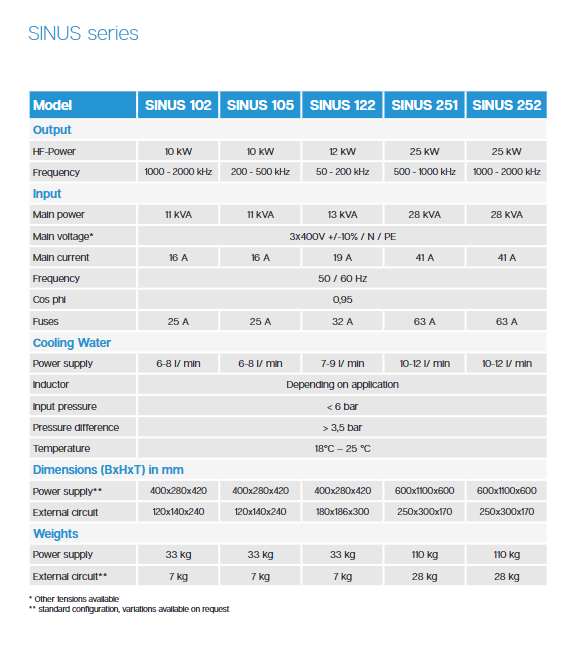

1) 5-12kW Small Series

Model HF Power Frequency Input Capacity Main Current Water Cooling Flow Host Size (mm) Weight (kg)

SINUS 51 5kW 500~1000kHz 5.5kVA 9A 4~5L/min 380×280×320 28

SINUS 52 5kW 1000~2000kHz 5.5kVA 9A 4~5L/min 380×280×320 28

SINUS 55 5kW 200~500kHz 5.5kVA 9A 4~5L/min 380×280×320 28

SINUS 62 6kW 50~200kHz 6.5kVA 10A 4~5L/min 380×280×320 28

SINUS 101 10kW 500~1000kHz 11kVA 16A 6~8L/min 400×280×420 33

SINUS 102 10kW 1000~2000kHz 11kVA 16A 6~8L/min 400×280×420 33

SINUS 105 10kW 200~500kHz 11kVA 16A 6~8L/min 400×280×420 33

SINUS 122 12kW 50~200kHz 13kVA 19A 7~9L/min 400×280×420 33

2) 25kW high-power series

Model HF Power Frequency Input Capacity Main Current Water Cooling Flow Host Size (mm) Weight (kg)

SINUS 251 25kW 500~1000kHz 28kVA 41A 10~12L/min 600×1100×600 110

SINUS 252 25kW 1000~2000kHz 28kVA 41A 10~12L/min 600×1100×600 110

Electrical and cooling specifications

standards of power supply

Input: 3 × 400V ± 10%/N/PE, 50/60Hz

Power factor: cos φ=0.95

Fuse: 16A~63A (matched by model)

Water cooling requirement (mandatory)

Flow rate: 4-12L/min

Inlet pressure:<6 bar

Pressure difference:>3.5 bar

Water temperature: 18-25 ℃

Advantage: No need for deionized water

Structure and physical parameters

Host: low-power model with a volume of 380 × 280 × 320mm, high-power model with a volume of 600 × 1100 × 600mm

External heating circuit: Compact design, size 120 × 140 × 240~250 × 300 × 170mm

Weight: Host 28~110kg, external circuit 7~28kg

Connection: Flexible cable connected to heating head

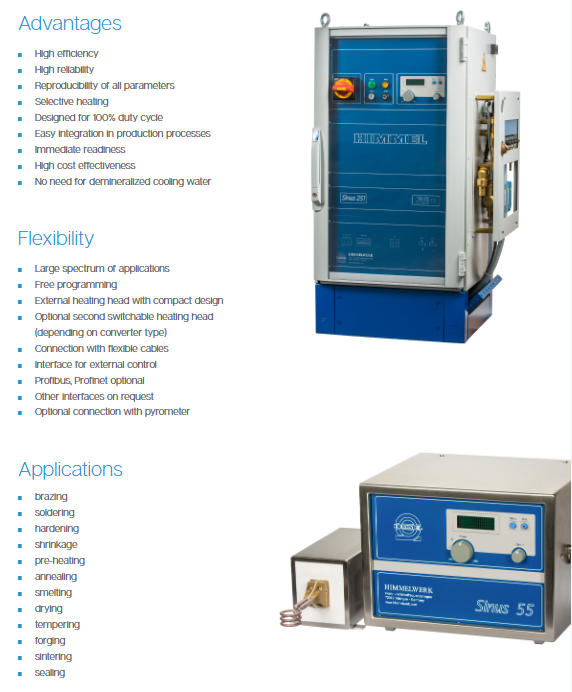

Product advantages

High efficiency, high reliability, highly reproducible parameters

Selective heating, precise temperature control

Support 100% duty cycle continuous operation

Ready to use, easy to integrate into production lines

High cost-effectiveness, easy maintenance

Can be connected to external dual heating heads (some models)

Support free programming and external control systems

Communication and Expansion

Standard: External Control Interface

Optional: Profibus, Profinet

Optional: Pyrometer interface

Other communication methods can be customized

Typical applications

Covering the vast majority of induction heating processes: brazing Soldering、 Quenching, hot assembly (shrinkage), preheating, annealing, melting, drying, tempering, forging, sintering, sealing.

Key issues

Question 1: What are the power and frequency coverage ranges of the SINUS series? What are the main impacts of different frequencies?

Answer: Power coverage ranges from 5kW to 25kW, and frequency coverage ranges from 50kHz to 2000kHz. Frequency determines heating depth: the higher the frequency, the stronger the skin effect, and the more concentrated the heating is on the surface; The lower the frequency, the deeper the heating depth.

Question 2: What are the mandatory requirements for cooling water in this series of equipment? Why not use deionized water?

Answer: The required flow rate is 4-12L/min, inlet pressure is * *<6bar * *, pressure difference is * *>3.5bar * *, and water temperature is 18-25 ℃. The product design allows the use of ordinary industrial cooling water without the need for deionized water, reducing on-site usage and maintenance costs.

Question 3: What are the core differences between SINUS 251 and 252, which are both 25kW models? What scenarios are suitable for each?

Answer: The difference lies in the working frequency:

SINUS 251：500~1000kHz， Suitable for medium depth and medium speed heating.

SINUS 252：1000~2000kHz， High frequency version, suitable for surface ultra high speed heating (such as fine brazing, surface quenching).
