Allen Bradley 800T/800H 30mm button and indicator light

Product positioning and core advantages

Product Series

800T: Metal material, protection level Type 4/13

800H: Plastic material, protection level Type 4/4X/13 (chemical corrosion resistance)

Core structure and durability

Integrated solid button head, never fading, non fading label

Zinc alloy actuator shaft, stainless steel reset spring, diaphragm seal

Four rivet reinforced structure, resistant to disassembly, impact, and liquid/dust/corrosion

Core selling points

Global standard adaptation, industry proven

The contact types are extremely diverse, meeting the requirements of ordinary, low voltage, explosion-proof, and safe emergency stop

Quick installation, built-in sealing gasket, IP20 anti touch finger design

Contact module (the most critical part)

1. Standard contacts (universal)

10A，A600

Pure silver contacts, double fork structure, high reliability

Self elevating cable clamp, transparent side panel for inspection

Optional IP2X anti touch finger, color coded

2. PenTUFF ™  Contact (PLC low-voltage signal)

2.5A，C300

Support 5V DC/1mA low voltage reliable switching

Five fork precious metal contacts, designed specifically for PLC input

3. Explosion proof contacts

Class I Div. 2 (A/B/C/D) certification

10A， Forcefully disconnect NC contacts, in compliance with global emergency stop standards

4. Self Monitoring Touchpoints ™， Emergency stop dedicated)

Ensure that the NC is disconnected when the emergency stop is pressed

Yellow label, to prevent installation errors

Meet the mandatory disconnection requirements for safety circuits

5. Other contact points

Logic spring contacts, sealed contacts, mini contacts MaxDuty、 Instant/Delay Contact

Main product categories (complete list)

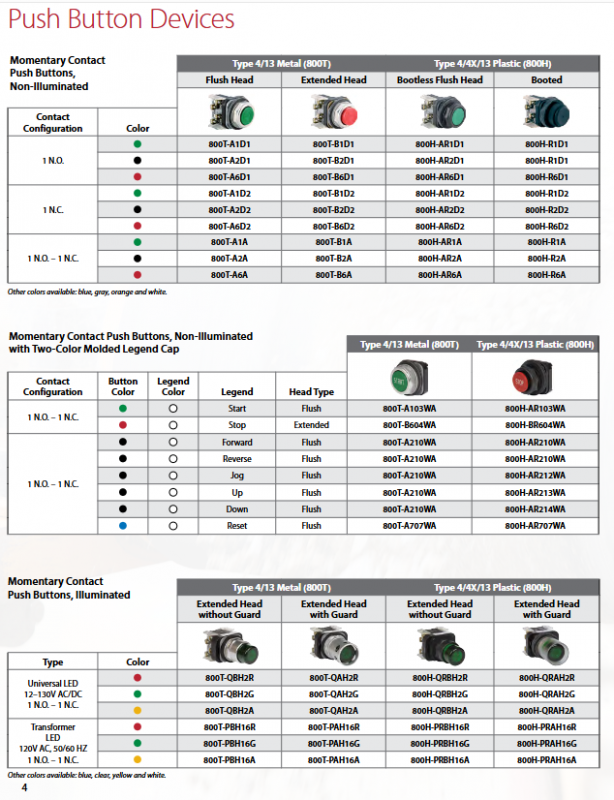

1. Normal button (momentary action, no light)

Head shape: flat head, convex head, unshielded flat head, with protective cover

Contact: 1NO, 1NC, 1NO+1NC

Colors: Black, Red, Green, Yellow, Blue, Grey, Orange, White

Can be engraved with: Start/Stop/Forward/Reverse/Jog/Up/Down/Reset

2. Button with light

Light source: Universal LED (12-130V AC/DC), Transformer LED (120V AC)

Colors: Red, Green, Yellow, Orange, Blue, White, Transparent

Structure: with/without protective cover

3. Pilot Lights

Standard type, Push to Test type

The most commonly used universal wide voltage LED

4. Emergency stop&push-pull switch

Type: push-pull, trigger type

Release: Rotation release, key release

Safety contacts: Double normally closed forced disconnection (NC LB), self-monitoring contacts

Emergency stop with light optional

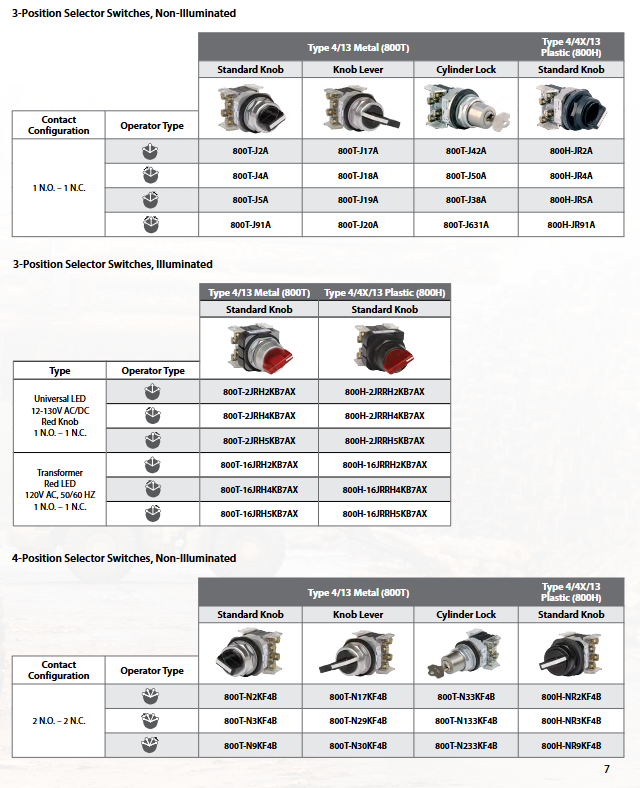

5. Select switch

2, 3, 4 digits

Operating head: standard knob, handle knob, key lock

Optional knob with light

Positioning: Positive Deternt to prevent gear suspension

6. Special components

potentiometer

Key button

Toggle switch (1-4 channels)

Joystick button

Interlock hold button

Combination station (1/2/3: start stop, emergency stop, manual stop automatic)

Protection and Environment

800T：Type 4、 13 (dustproof, splash proof, corrosion-resistant)

800H：Type 4、4X、 13 (resistant to chemicals and corrosion)

The entire series meets the requirements of industrial strong vibration and impact scenarios

Typical model rules (quick identification)

800T-A: Flat head unlit button

800T-B: convex head no light button

800T-Q: Universal LED strip/indicator light

800T-P: 120V Transformer LED

800TC-FX: Push pull emergency stop

800T-H: 2-position selector switch

800T-J: 3-digit selector switch

800T-N: 4-position selector switch

Suffix A: 1NO+1NC

Suffix D1: 1NO

Suffix D2: 1NC
