Beckhoff C6650-0060 Control Cabinet Industrial PC

Overall positioning and core design advantages of the product

​1. Product positioning

C6640/C6650 is an industrial PC designed for control cabinet installation, equipped with 8th/9th generation Intel Celeron, Pentium, i3/i5/i7 ATX industrial motherboards, targeting high-end automation, machine vision, multi axis motion, and server level industrial control scenarios; The C6650 features dual disk RA1 mirror data redundancy, while the C6640 is a compact non redundant version of the same architecture.

2. Industrial design characteristics of the whole machine

Stainless steel cabinet, IP20 protection, compatible with standard electrical control cabinets;

All external interfaces are uniformly arranged upwards, and cables can be directly connected to the control cabinet trunking, with neat wiring; The side wall of the chassis has no protruding components and can be installed side by side in close proximity to other modules inside the cabinet;

Hardware easy to maintain design: The hard drive, memory, expansion card, and optical drive are all front/front detachable, without the need to remove the entire machine casing;

Long life cycle compatibility: universal for chassis, motherboard CPU、 Both memory and hard drive can be upgraded separately in the later stage, and hardware iteration does not require changing the cabinet;

Seismic reinforcement: Expansion card slots are equipped with buckles, and hard disk racks have buffering structures to resist vibration and impact;

Front mounted nameplate, complete configuration information of the whole machine is clear at a glance.

3. Core highlights of data security (exclusive to C6650)

Standard configuration includes dual removable hard drive bays and onboard SATA RAID1 controller, with real-time mirroring and backup of two hard drives; Single hard drive failure can be hot swappable and replaced, with extremely short downtime, ensuring that production programs and process data are not lost, suitable for uninterrupted operation scenarios on production lines.

4. Background of Beifu Industrial Control

Beifu has independently developed industrial control hardware since 1986, including self-developed motherboards and customized industrial grade accessories. We provide long-term material supply cycles and support customers in customizing complete machine configurations.

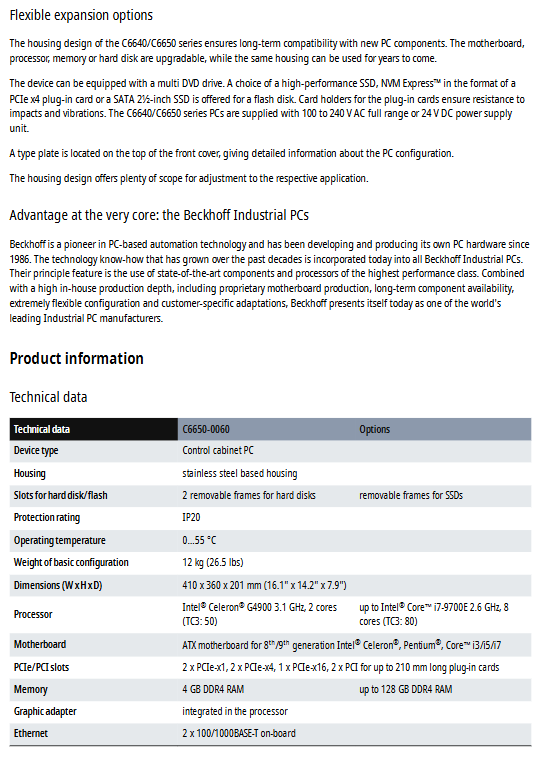

C6650-0060 standard factory hardware parameters

Optional upgrade range for project standard configuration

Equipment type: Control cabinet industrial PC-

Cabinet material: stainless steel chassis-

Protection level IP20-

The overall dimensions of the machine are 410 in width, 360 in height, and 201mm in depth-

Basic weight 12kg-

Working temperature 0~55 ℃-

8th/9th generation Intel ATX industrial motherboard-

Standard CPU Intel Celeron G4900 dual core 3.1GHz (TC3:50) Pentium G5400, i3-9100E, i5-9500E, i7-9700E eight core

4GB memory DDR4 8/16/32/64/128GB DDR4

Graphics card CPU integrated core display-

Onboard network port 2 channels Gigabit 10/100/1000BASE-T Ethernet-

Expansion slots 2 x PCIe x1, 2 x PCIe x4, 1 x PCIe x16, 2 x PCI, supporting up to 210mm long expansion cards-

Two hard drive bays that can extract 3.5-inch hard drive slots, onboard SATA RAID1 that can replace 2.5-inch SSD bays and add CFast slots

Standard storage includes 1TB 3.5-inch mechanical hard drive, maximum 4TB mechanical drive, 2.5-inch SSD, PCIe NVMe high-speed chuck

Front end peripherals without optical drive, ultra-thin multi specification DVD burning optical drive optional

Basic external interfaces include 4 x USB 3.1 Gen1, 2 x DVI, 1 x DP, 1 x RS232, PS/2 keyboard and mouse expansion with 8 USB 2.0 channels and an additional 3 serial ports

Standard power supply 100~240V wide AC power supply 24V DC power supply, built-in UPS power supply

Pre installed system without system Win10 IoT Enterprise 64 bit, Windows Server 2019 64 bit

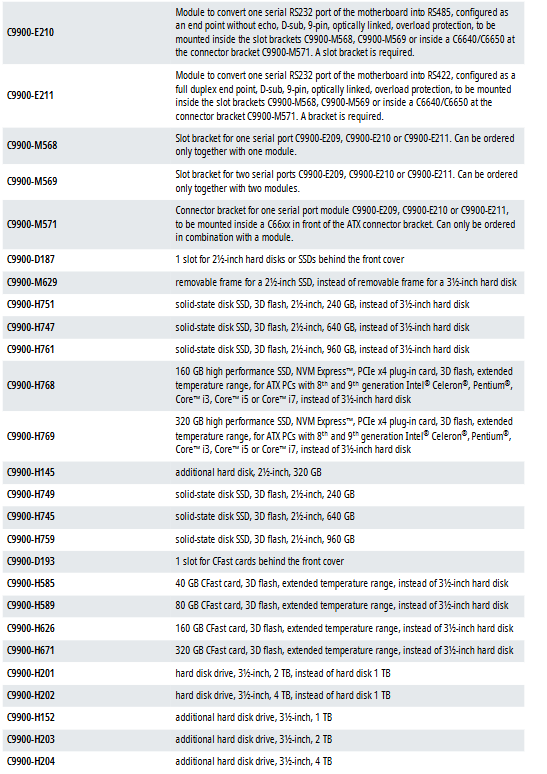

Full range of optional accessories (C9900 series selection code)

1. CPU upgrade kit

C9900-C624: Pentium G5400 replaces Celeron;

C9900-C625: i3-9100E quad core;

C9900-C626: i5-9500E six core;

C9900-C627: i7-9700E eight core top configuration.

2. Memory expansion (R series)

R270 (8G), R271 (16G), R272 (32G), R273 (64G), R285 (128G, only supported on 9th generation i5/i7 motherboards).

3. Optical drive, external USB expansion

D118: Ultra thin DVD read-write drive;

E195: Slot board leads out 2 USB ports;

E216: Expansion of 2 USB ports on the front of the chassis.

4. Serial port conversion module (industrial communication core)

Native RS232 can be upgraded to isolated RS422/RS485 through accessories, all with photoelectric isolation and overload protection, and installed with corresponding baffles:

E203: Single channel RS232 baffle; E166: Dual RS232;

E209: Isolation RS232 module;

E210: Isolate RS485 (no echo in terminal mode);

E211: Isolated full duplex RS422;

Equipped with M568 single slot, M569 double slot, and M571 front mounting bracket.

5. Storage accessories (mechanical disk/SSD/NVME/CFast multi solution)

Rack modification: M629 replaces the 3.5-inch rack with a 2.5-inch SSD rack; D193 front CFast card slot;

2.5-inch SATA SSD: 240/640/960GB multi capacity;

PCIe x4 NVMe Industrial SSD (Wide Temperature): 160G/320G;

CFast industrial storage card: 40/80/160/320GB;

3.5-inch mechanical disk expansion: 2TB, 4TB, supports adding a second hard drive.

6. Power supply and UPS complete set of accessories

P208: Replace with 24V DC power supply;

P209:24V power supply+built-in UPS;

U330: DIN rail mounted external UPS battery pack (3.4Ah);

U120/U122: 230V/115V external industrial UPS;

M623: UPS wall bracket.

Power supply and operating system support

Choose one of the two power supply schemes

Standard: 100-240V AC;

Optional: 24V DC DC, optional built-in UPS with external lead-acid battery for power-off endurance;

Supporting operating systems

Windows 10 IoT Enterprise 2019/2021 64 bit LTSC, Windows Server 2019 64 bit industrial server system.
