ADLINK DLAP-4000 series embedded industrial control computer

Chapter 1 Product Overview

1.1 Product positioning

Compact high-performance industrial embedded platform, equipped with Coffee Lake Refresh Core i7/i5/i3, H310 chipset; Having full expansion capability (PCIe x16 dedicated graphics slot Mini PCIe、 Multiple storage locations, optimized heat dissipation structure, suitable for industrial scenarios such as machine vision, automation, high-precision data acquisition, etc. that require strong computing power and expanded peripherals.

1.2 Core Hardware Features

1. Computing platform

LGA1151 slot, supporting 8th/9th generation i3/i5/i7 (35W low-power/65W standard power); H310 chip; Dual DDR4 SODIMM slots, up to 32GB 2666 non ECC memory; Intel HD630 core display.

2. Expansion capability

-Full length PCIe x16 slot, supporting Nvidia Quadro industrial graphics cards;

-Mini PCIe x1 slot (USB 2.0+PCIe x1, compatible with network card, 4G, and data acquisition card);

-M.2 M-key 2280 SATA SSD dedicated bit;

-Dual built-in SATA 6G hard drive compartments (2.5-inch SSD/HDD, also compatible with a 3.5-inch hard drive).

3. Display output (three independent displays)

DP（4096× 2304@60Hz ）The HDMI（ 4K@30Hz ）DVI-D (1920 × 1920) 1200@60Hz ）Three independent outputs, independent display can expand additional display channels.

4. Enrich industrial I/O

5 serial ports (1 switchable RS232/422/485, 4 fixed RS232); 8-bit programmable GPIO; Dual Gigabit Realtek RTL8111G Ethernet port (supporting PCIe and remote wake-up WOL); 6 external USB ports (4 x USB 3.1 Gen1+2 x USB 2.0); Complete audio (microphone/line in/line out); Optional TPM2.0 secure encryption module.

5. Power supply and structure

Built in Flex ATX industrial power supply, AC 100-240V wide input, available in 300W/500W power versions; Compact chassis size 220 (W) × 300 (D) × 150 (H) mm, supports wall mounting.

1.3 Factory packing list

Industrial control host body, wall bracket, screw kit, American standard power cord, accessory box; Upon receiving the goods, it is necessary to inspect for any transportation damage. If any damage occurs, please contact the dealer immediately and keep the packaging for return and exchange testing.

Chapter 2 Complete Specification Parameters

2.1 Summary of Core Hardware Specifications

1. Processor selection

Covering multiple 8/9 generation Core processors such as i7-9700TE (35W), i7-8700T (35W), and i7-8700 (65W), with different core threads, cache, and power consumption configurations.

2. Storage system

2 x SATA 6G 2.5-inch storage space, 1 M.2 2280 SATA slot, supporting SSD/HDD hybrid deployment.

3. Electrical and Environmental

-Power supply: 100-240V AC, 300W/500W built-in power supply;

-Working temperature: 0~50 ℃ without independent display, 0~40 ℃ with independent display; Storage -20~60 ℃;

-Humidity 5%~90% without condensation;

-Seismic resistance: running at 1Vrms (with SSD and dedicated display), idle at 2Grms; Impact operation 20G, idle 30G;

-Electromagnetic compatibility: CE, FCC Class B, EN55032/35、 Industrial anti-interference standards; Safety certification UL/cUL, CB.

2.2 Functional Block Diagram

Clearly display CPU, memory, three-way display output, SATA, M.2, PCIe expansion, dual network ports, serial ports GPIO、 The chip level signal link between audio, fan, hardware watchdog, TPM, and Mini PCIe provides a clear understanding of the internal bus topology.

2.3 Upper limit of display resolution

DP up to 4K60, HDMI 4K30, DVI-D 1920 × 1200@60Hz Three channels can independently output images simultaneously.

2.4 Mechanical dimensions

The dimensions of the chassis in terms of length, width, and height, as well as six side views (top/side/bottom/front/back), are labeled to provide a dimensional basis for cabinet and wall mounted installation.

Chapter 3: Definition of Whole Machine Panel and Internal Interfaces

3.1 Front panel interface (human-machine operation+peripherals)

Power button (blue status light), reset button, red disk read/write light, 2 x USB 2.0, four-way RS232 serial port, audio input/output, external power on/off expansion terminal.

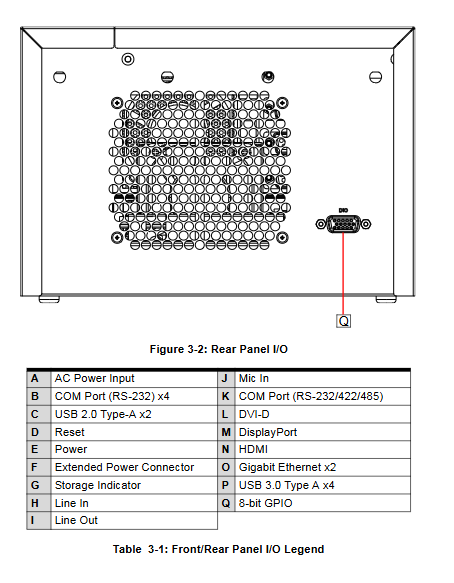

3.2 Rear panel interface (industrial standard peripherals)

AC power input, five serial ports (including one multi-functional 485 port), 8-bit 15 pin GPIO, dual Gigabit Ethernet ports, 4 x USB 3.1, DP/HDMI/DVI triple display, microphone input.

3.3 Complete definition of external interface pins

Includes DP, HDMI, DVI-D, Gigabit Ethernet port, DB9 serial port (RS232/422/485 pin allocation), 15 pin 8-channel GPIO (with 3.3V power supply, SMB bus, etc.) GND）、 External switch terminal.

3.4 Mainboard built-in pins

CPU fan, system fan, dual SATA, M.2, Mini PCIe, DDR4 memory slot, CLCMOS clear CMOS jumper, chassis intrusion detection, front audio, front USB, LVDS screen pin, TPM2.0 slot, etc;

Clear CMOS jumper instructions: 1-2 defaults to normal, 2-3 short circuits for 3 seconds can reset all BIOS settings.

Chapter 4 Quick Installation Operation Guide

4.1 Safety tips before power on

Confirm that the AC voltage matches the specifications of the device. Incorrect voltage will permanently damage the hardware. Check all wiring before powering on.

4.2 Wall mounted installation steps

Remove the bottom foot pad, fix the chassis with M4 screws to the supporting bracket, hang it on the wall through the bracket’s long circular hole, and mark the installation hole spacing size.

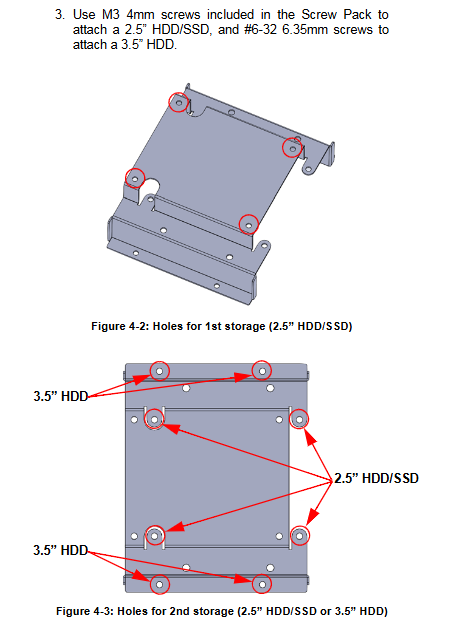

4.3 Storage Hardware Disassembly and Assembly

1. Disassemble the top cover and hard drive bracket of the computer case;

2. Two assembly options: dual 2.5-inch SSDs, 1 2.5-inch+1 3.5-inch hard drive; Supporting M3, # 6-32 specification screws;

3. Disassembly and assembly of M.2 SSD: Remove the cover plate and fix the 2280 specification solid-state drive with M3 screws.

4.4 Driver installation

Windows 10 drivers can be downloaded from the product page of Linghua’s official website. The required driver list includes chipset, graphics card, audio, dual network card, serial port, Intel ME, and IRST storage drivers.

BIOS complete setup manual (core operation and maintenance content)

Press ESC/DEL to enter UEFI BIOS during startup, supporting F1 assistance, F8 to restore last configuration, F9 to load default, F10 to save and exit; Divided into six main menus, detailed explanations of all configurable items:

​A1 Main Menu

Read only BIOS version and memory information; The system date and time can be modified.

A2 Advanced Menu (Hardware Core Configuration)

1. CPU settings: Hyper threading, Turbo Turbo frequency, C-State energy-saving, virtualization VT-x, SGX security, core quantity limit;

2. PCH firmware: Management engine ME lock control;

3. ACPI: sleep switch, S3/S5 wake-up, PCIe device wake-up;

4. Super IO (NCT6106D): 5-way serial port mode switching (RS232/485), hardware watchdog (seconds/minutes, timeout shutdown), chassis cover opening alarm;

5. Hardware monitoring: CPU/system temperature, various voltages, intelligent fan four speed temperature control curve (supports manual fixed speed);

6. Serial port remote console, USB compatibility mode, CSM compatible boot, PXE network boot, TPM security switch.

A3 Chipset Chipset Menu

1. Read only memory parameters;

2. Graphics card settings: Main graphics card selection (core/discrete graphics PEG), DVMT memory allocation, LVDS backlight frequency;

3. PCIe x16 dedicated graphics slot speed and hot swappable switch;

4. PCH IO: Dual Ethernet port PCIe, power-off recovery, 8-channel GPIO input/output separately configured;

5. SATA mode (AHCI/Intel RST array), HD audio switch.

A4 Security Menu

Administrator/user boot password, Secure boot, can import/delete secure encryption keys, device protection configuration.

A5 Boot startup menu

Startup waiting time, NumLock default state, startup mode UEFI/Legacy, customizable hard disk/USB/network startup priority.

A6 Save&Exit Save Exit

Save/discard modifications, restore factory default, EFI shell boot function.

Chapter on Safety Regulations

1. Electrical safety: Keep away from liquids, maintain ventilation, ground wires, and cut off power for prolonged use; Internal maintenance is only authorized for engineers to operate; Do not touch the high-temperature area of the aircraft.

2. Battery warning: Incorrect replacement of built-in lithium batteries poses a risk of explosion, and waste batteries are being recycled in compliance with regulations.

3. Usage limitations: Not suitable for environments where children are present; If there is wire damage, water ingress, or malfunction, the power must be cut off and sent for repair.

4. Complete bilingual safety warning clauses in English and French, suitable for use by overseas customers.
