ADLINK Matrix Full Series Fanless Embedded Industrial Control Computers

Division of two major product lines

1. MXC series: with PCI/PCIe expansion slots, supporting DAQ/vision/motion card insertion

Features: A standard long slot is reserved on the side of the chassis, which can be used to install acquisition cards, GigE vision cards, and motion control cards. It is suitable for measurement and vision platforms that require board expansion. There are three generations of models: MXC-6300 (third-generation Core high-performance), MXC-4000 (Atom D510 mid-range expansion), and MXC-2000 (Atom N270 entry-level expansion).

2. MXE series: Compact integrated, no external expansion slot, built-in Mini PCIe wireless slot

Features: Small size, rich integrated IO, focusing on car, gate, building, small control, does not support full-length PCIe card insertion, relies on Mini PCIe to expand 4G/WiFi/GPS, models include MXE-5300 (second-generation Core High Performance), MXE-3000 (Atom D510), MXE-1300 (Atom D2550/N2600), MXE-1200 (12 serial port dedicated), MXE-1000 (basic Atom model).

MXC expandable card series detailed specifications

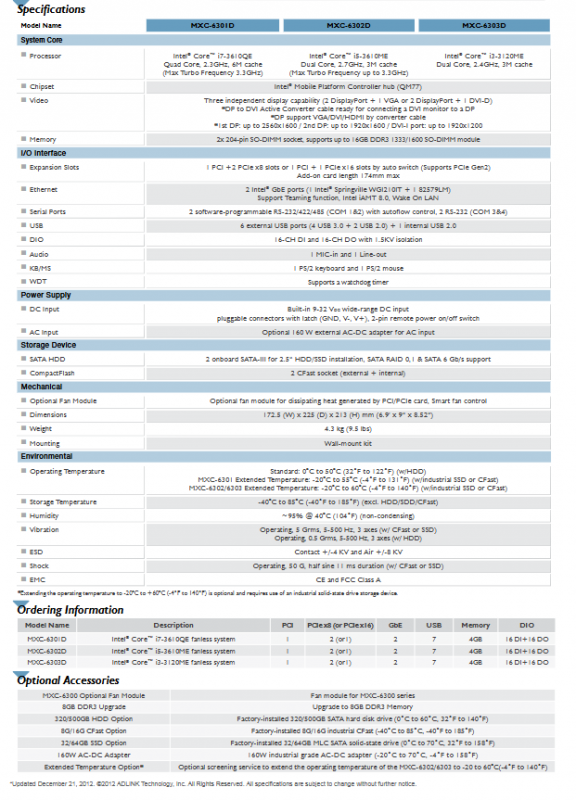

(1) MXC-6300 high-end 3rd generation Core model

1. Core platform: 3rd generation i7/i5/i3 mobile CPU+QM77 chip, dual DDR3 memory up to 16GB;

2. Expansion slot: Choose one configuration: 2 x PCIe x8+1 x PCI/1 x PCIe x16+1 x PCI (automatic bandwidth switching), can be paired with GIE64+vision card, DAQ acquisition card;

3. Display output: 2 × DP+DVI-I, three independent displays, up to 2560 × 1600;

4. IO interface

-Network port: Dual gigabit, supports Teaming and iAMT8.0 remote management;

-Serial port: 4COM (2-channel programmable RS232/422/485, 2-channel RS232);

-USB: 4 x USB 3.0+2 x USB 2.0+built-in USB;

-DIO: 16 isolated DI+16 isolated DO (1.5kV isolated);

-Storage: Dual SATA III supports RAID0/1, internal and external dual CFast;

5. Power supply 9-32V wide DC input, optional 160W AC adapter;

6. Environment: Standard 0~50 ℃ (mechanical hard drive); Optional industrial SSD can reach -20~60 ℃; SSD runs 5Grms with strong seismic resistance;

7. Optional: It can be equipped with an intelligent cooling fan (dedicated for high-power card insertion), wall mounted kit, and wide temperature screening service.

8. Applications: High definition medical imaging, multi camera machine vision, maritime automation, high-end production line ATE testing.

(2) MXC-4000 mid-range Atom D510 model

1. Core: Atom D510 dual core 1.66GHz+ICH8-M, standard 1GB DDR2;

2. Two types of slots * *: MXC-4002D (dual PCI)/MXC-4011D (1PCI+PCIe x1);

3. Featured IO: VGA+LVDS dual display, dual eSATA external storage, 12 isolated DI/DO;

4. Temperature and width: 0~55 ℃ as standard, SSD optional -10~60 ℃;

5. Applicable: Factory control, small testing instruments, traffic monitoring.

(3) MXC-2000 entry-level Atom N270 model

1. Core: Atom N270 1.6G+945GSE, 1GB DDR2;

2. Three types of differentiated slots:

– MXC-2002：2 PCI；

– MXC-2011：1 PCI+1 PCIe x1；

-MXC-2012:2 PCI+PCIe x4 (meets maritime IEC-60945 standard, isolated power supply of 18-36V);

3. Standard VGA+S-Video dual display, dual hot swappable CF card; Optional 16 isolation DIO;

4. Extreme wide temperature range: Industrial SSD optional -20~70 ℃, 5Grms anti vibration across the entire range;

5. Applications: Basic data collection, building automation, and small ship control equipment.

MXE Compact Non Full Length Slot Series (Mini PCIe Wireless Expansion)

(1) MXE-5300 Second Generation Core High Performance Model

1. Core: 2nd generation i7/i5/i3 low-power CPU+QM67, up to 16GB DDR3;

2. Wireless expansion: Dual Mini PCIe+USIM card slots, supporting 3G/WiFi/BT/GPS;

3. IO highlights: 4-channel gigabit network, 4COM (2-channel 485 programmable), 2 x USB 3.0+4 x USB 2.0, 4 isolated DI/DO;

4. Storage: SATA III, external CFast, eSATA;

5. Temperature and width: SSD models -20~70 ℃, supporting iAMT7 remote operation and maintenance;

6. Scenarios: Vehicle monitoring, intelligent transportation, and large-scale building management.

(2) MXE-3000 Atom D510 Compact

1. Three network ports, four serial ports, LVDS+VGA dual display, Mini PCIe wireless bit;

2. Compact size of 210 × 170 × 53mm, weighing only 1.8kg;

3. Applicable: Toll station controller, environmental monitoring, smart grid.

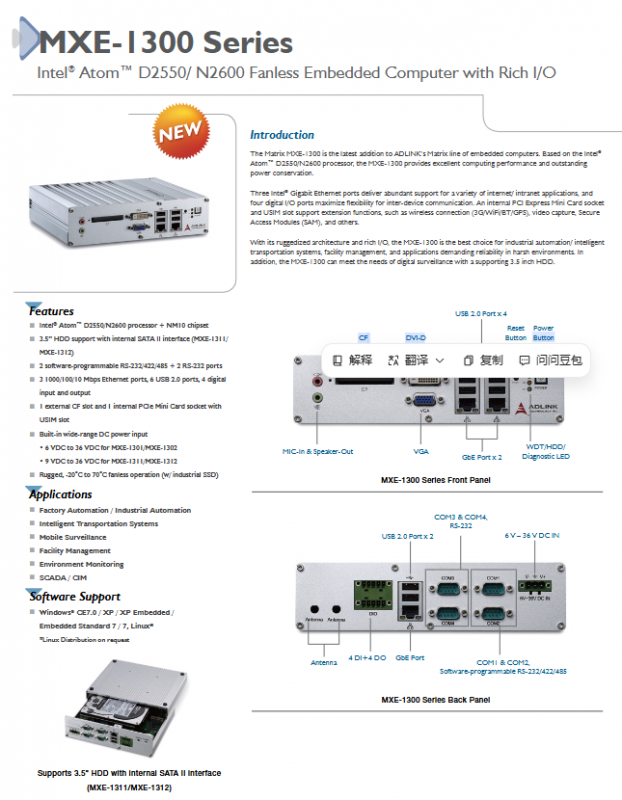

(3) MXE-1300 Atom D2550/N2600 Universal Model

1. Distinguish between 2.5-inch discs (1301/1302) and 3.5-inch discs (1311/1312);

2. 6~36V ultra wide DC power supply, 3 Gigabit Ethernet, 4 serial ports, 4 DIO channels;

3. Adapt to mobile monitoring and SCADA data collection.

(4) MXE-1200 12 serial port dedicated industrial control

1. Core features: A total of 12 serial ports (2 programmable 485+2 RS232+8 DB62 batch serial ports);

2. There are three models: full 232, full 422, and full 485 batch serial ports;

3. 6~36V on-board power supply, single gigabit network;

4. Specialized scenarios: smart grid, multi instrument gateway, automatic toll gate.

(5) MXE-1000 Basic Atom entry-level model

1. N270 low power consumption, divided into three sub models: single network, triple network, and dual 1394 camera interfaces;

2. Dual 485 serial ports, CF storage, Mini PCIe wireless;

3. The 1394 version is compatible with old industrial cameras for capturing.

Full range of universal industrial design standards

1. Heat dissipation and structure

-Full range * * Finless fans, no internal wiring * * Modular enclosed chassis, reducing failure points;

-MXC high-end models can choose detachable intelligent cooling fans, compatible with high-power PCIe graphics cards/acquisition cards.

2. Power supply system

-Mainstream 9-32V wide voltage DC; MXC-2012, MXE-1200/1300 upgrade to 6-36V on-board isolated DC;

-Optional 40/80/100/160W industrial wide temperature AC-DC adapter.

3. Unified Specification for Environmental Reliability

1. Temperature

-Standard mechanical hard drive: 0~50/55 ℃;

-Optional industrial SSD/CFast: -20 ℃ low temperature start, upper limit 60~70 ℃;

-Unified storage temperature -40~85 ℃ (excluding storage medium);

2. Vibration and impact

-SSD/CFast operation: 5Grms three-axis vibration, 50G impact;

-Mechanical hard drives only have 0.5Grms and are not suitable for high vibration scenarios;

3. Protection: ESD contact ± 4KV, air ± 8KV; CE/FCC A-class industrial electromagnetic compatibility;

4. Installation: VESA wall bracket is standard across the entire range.

4. Unified storage solution

All supported: 2.5-inch SATA HDD/SSD; External hot swappable CF/CFast card; High end models support eSATA external expansion; MXC-6300 supports RAID0/1 data redundancy.

5. Software system support

Windows XP/XP Embedded/Win7/Embedded Standard 7； Customizable Linux system across the entire range; Built in hardware watchdog WDT, supports remote wake-up of WOL and iAMT remote management (Core models).

Summary of Universal Optional Accessories

1. Memory upgrade: DDR2/DDR3 expansion 2/4/8GB;

2. Storage: 320GB industrial hard drive, 8/32/64GB wide temperature SLC/MLC industrial SSD, CFast memory card;

3. Power supply: Industrial AC power adapters of various powers;

4. Function expansion: Mini PCIe 4G/WiFi/GPS wireless module, MXC series cooling fan module;

5. Environmental upgrade: Whole machine wide temperature screening service, unlocking the ability to work at -20 ℃ low temperature..
