ADLINK NuPRO-E43 PICMG 1.3 full-length system motherboard

​Basic Information

1. Name: NuPRO-E43 PICMG 1.3 Full length System Motherboard (SHB) Specification

2. Product positioning: Based on LGA1151 slot 6/7 generation Intel Core platform PICMG1.3 full-length industrial control single board, targeting automation, testing and measurement, and military industrial control chassis systems

Overview of Core Product Features

1. Processor: LGA1151, compatible with Intel 6th and 7th generation i7/i5/i3/Pentium/Celeron full series standard/low-power TE processors

2. Chipset: Intel Q170 Express, native PCIe 3.0, supports PCIe channel splitting

3. Memory: Dual channel DDR4 2133/2400MHz, dual DIMM slots up to 32GB

4. Storage: 4-channel SATA 3.0, hardware RAID function

5. Serial port: 4 COM channels, 2 standard RS232 channels, 2 RS232/422/485 channels with automatic flow control

6. Expansion management: equipped with Linghua SEMA whole machine management solution, optional TPM2.0 safety module, programmable watchdog

7. Display: CPU integrated core display, rear VGA, onboard DVI-D dual display output

8. Network port: Dual Gigabit Ethernet, LAN1 supports iAMT 11, WOL remote wake-up

9. Expansion bus: PCIe 3.0 split x16/x8/x4, independent PCIe x4, 4-channel traditional PCI channel output to backplane

10. Rich IO: 10 USB ports (8 x USB 3.0+4 x USB 2.0), parallel ports, PS/2 keyboard and mouse, high-definition audio board expansion

Detailed hardware specifications sorted by module

（1） Core computing platform

1. CPU support list

Covering the 6th and 7th generations of LGA1151 processors, distinguishing between standard power consumption (51/54/65W) and low-power TE series (35W):

i7-6700/6700TE、i7-7700/7700T；

i5-6500/6500TE、i5-7500/7500T；

i3-6100/6100TE、i3-7101E/7101TE；

Pentium G4400/G4400TE; Saiyang G3900/G3900TE

Unified 14nm process, 2M-8M cache, dual core/quad core multi-threaded architecture.

2. Chipset: Intel Q170 Express, PCIe 3.0 bus architecture

3. BIOS: AMI UEFI, 128Mbit SPI flash memory; Optional Infineon SLB 9665XT2.0 TPM Security Encryption Module (onboard pin)

4. Memory: Dual SO-DIMM/DIMM slots, dual channel DDR4 2133/2400MHz, maximum 32GB

（2） System management function

1. Watchdog timer: software programmable, timing range 1 second to 65536 seconds, automatic machine reset upon timeout

2. Hardware monitoring: Real time collection of CPU temperature, overall temperature, various voltages, and CPU fan speed

3. SEMA management: Built in Linghua self-developed SEMA remote device management, combined with BMC to achieve complete machine operation and maintenance

4. iAMT 11: The main network port I219LM supports Intel Active Management technology and remote boot (WOL)

（3） Storage subsystem

4-way onboard SATA 3.0 high-speed interface, supporting hardware RAID array mode, compatible with industrial SSDs and mechanical hard drives.

（4） IO interface specifications

1. Serial port (4-channel total)

-2-channel RS232, onboard 2.0mm pin;

-2-channel programmable RS232/422/485, built-in automatic flow control, dedicated for industrial bus communication

2.USB

-Rear panel: 2 x USB 3.0;

-Onboard pins: 6 x USB 3.0;

-Backplane expansion: 4 x USB 2.0; 8 USB 3.0+4 USB 2.0 channels in total

3. Parallel LPT: 1-way onboard pins

4. PS/2: Keyboard and Mouse Shared Pin

5. Audio: Equipped with a DBAudio2 motherboard and Realtek ALC262 HD audio, it supports microphone input/line input/output

6. Display output

-Rear VGA: up to 1920 x 1200@60Hz ；

-Onboard DVI-D pins: up to 1920 x 1200@60Hz ；

Relying on CPU integrated HD core display, without independent graphics card.

7. Dual Gigabit Ethernet ports

-LAN1: Intel I219LM PCIe Gigabit, iAMT11, WOL wake-up;

-LAN2: Intel I225-V PCIe Gigabit

（5） Backplane expansion bus (PICMG1.3 output)

1. PCIe x16 channel, supports Intel channel splitting:

Mode 1: Single PCIe x16;

Mode 2: Split 2 x PCIe x8;

Mode 3:1 x PCIe x8+2 x PCIe x4;

2. One independent PCIe x4 output to the backplane;

3. 4-channel standard 32-bit PCI bus output to the backplane, compatible with traditional ISA/PCI industrial acquisition cards.

（6） Operating system compatibility

-Win7 32/64bit (only compatible with 6th generation CPU and I219LM network card)

-Win10 64 bit (supported across all platforms)

-Ubuntu 15.10 Linux system

Mechanical and environmental parameters

1. Specification: PICMG 1.3 full-length SHB industrial motherboard

2. Size: 338mm × 126mm

3. Working temperature: 0 ℃~60 ℃ (wide temperature industrial grade)

4. Storage temperature: -40 ℃~80 ℃

5. Humidity: 5%~95% without condensation

6. Safety certification: CE, FCC Class A

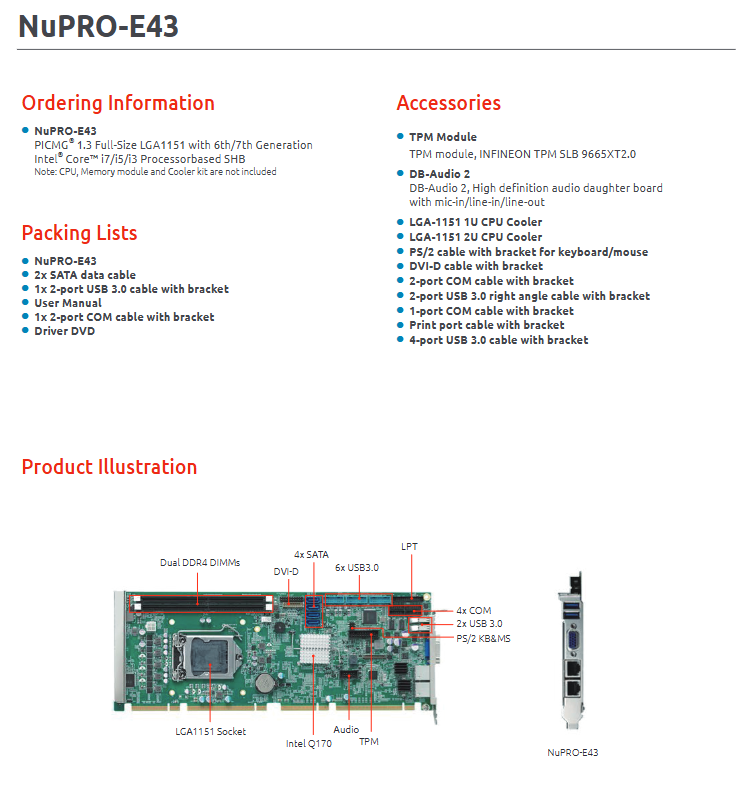

Ordering and Supporting Information

1. Basic model: NuPRO-E43 (bare board, excluding CPU, memory, and heat sink)

2. Optional accessories

-TPM2.0 Safety Module (Infineon SLB 9665XT2.0)

-DB-Audio2 high-definition audio daughter board

-LGA1151 1U/2U Industrial CPU Heat Sink

3. Standard packing list

NuPRO-E43 motherboard, 2 SATA data cables, 2-port USB 3.0 ribbon cable, serial port ribbon cable, user manual, driver CD;

Optional accessories: PS/2 cable, DVI-D dock cable, multi serial/multi USB/parallel port expansion cable.
