ADLINK NuPRO-935A Full length PICMG1.0 Industrial Single Board Computer

Product Overview

Product Positioning

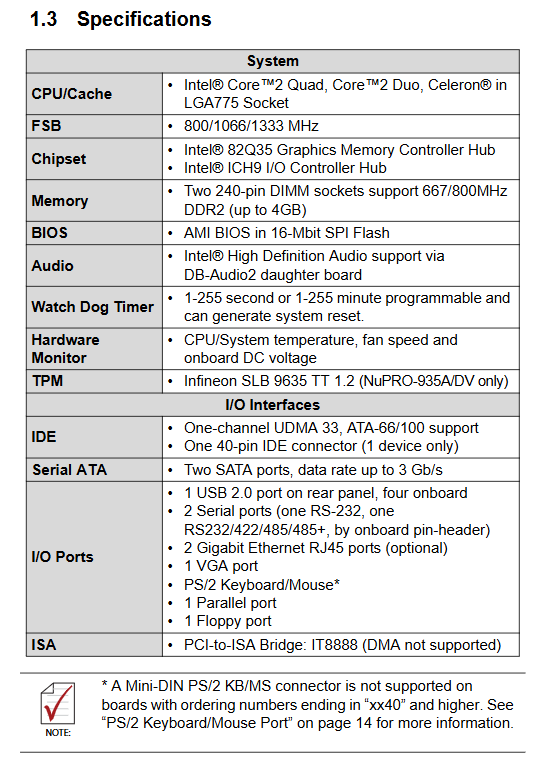

Standard full-length PICMG1.0 industrial control motherboard, LGA775 platform, supporting Core 2 quad/dual core and Celeron processors, aimed at automation control and high-performance industrial equipment, with dual gigabit network, hardware secure TPM, programmable watchdog, and wide temperature stability features.

Core hardware features

Processor and Bus

LGA775 socket, FSB 800/1066/1333MHz， Supports hyper threading, up to 3.0GHz; Intel Q35 GMCH North Bridge+ICH9 South Bridge.

Memory

Dual channel 240pin DDR2 667/800 DIMM, with a maximum of 4GB of dual slots, and dual channel enabled for the same capacity of memory.

Display

Onboard GMA3100 integrated graphics card, sharing up to 256MB of memory, 15 pin VGA interface, up to 2048 × 10 ^ 4, with a maximum of 1536@75Hz .

Network (by model)

NuPRO-935A Standard Edition: Dual Gigabit (Intel 82566DM+82573L PCI-E x1) Dual RJ45

NuPRO-935A/LV Lite: Single Gigabit 82566DM

The network port is equipped with dual color indicator lights for link/speed.

Storage interface

2 x SATA II (3Gbps), 1 x ATA10 IDE, 1 x floppy drive FDC.

I/O peripherals

Rear 1 USB 2.0, onboard 4 USB pins; COM1 supports RS232/422/485/485+(jumper switching), COM2 standard RS232; Intersection 1; The tail number xx40 model cancels the rear PS/2 and can choose an external PS/2 cable; Total quantity of 5 USB2.0 channels.

Expansion bus

IT8888 PCI to ISA bridge, 4-channel 32-bit PCI slots, PICMG gold finger backplane interface.

Additional industrial functions

WDT watchdog: 1~255 seconds/minute programmable, automatic system reset upon timeout, supporting example code

Hardware monitoring: Real time collection of CPU/board temperature, CPU/system fan speed, and various DC voltages

TPM 1.2 security chip (DV version only): encryption key, VPN, 802.1x authentication

Audio: Optional DB-Audio2 daughter card for HD audio, with 9-pin audio pin reserved on the motherboard

Environment and Machinery

Size 338 × 122mm; working temperature 0~60 ℃, storage -20~80 ℃, humidity 5%~90%, no condensation; CE and FCC A-level industrial certification.

10 Power consumption test (benchmark configuration)

Equipped with Q6600 quad core and 2GB DDR2, DOS standby power is 60.17W, XP idle power is 37.76W, and full load oven is 114.17W.

System architecture diagram

Beiqiao Q35 is compatible with CPU, dual channel DDR2, and VGA output; ICH9 South Bridge provides PCI-E Gigabit, SATA, USB, LPC buses; ITE8718 Super I/O management serial/parallel/keyboard and mouse/hardware monitoring; PCI bridge expansion ISA slot, independent TPM, audio daughter card, SPI BIOS independent link.

Standard packing list

Motherboard, 2 SATA cables, SATA power cable, USB dock cable, COM printing cable, single COM cable, driver DVD, manual; Models xx40 and above will have PS/2 cables and IDE/floppy drive cables removed.

Hardware information (connectors, jumpers, board layout)

Rear I/O board interface

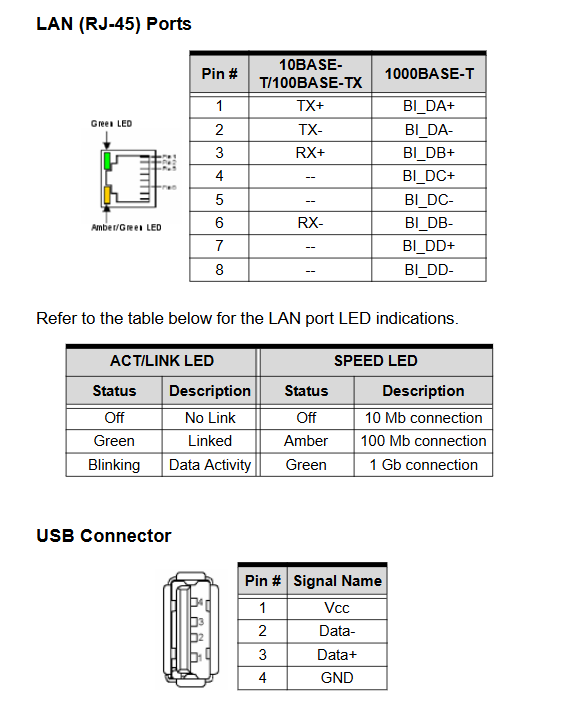

PS/2 keyboard and mouse (cancelled in the new version), dual RJ45 gigabit, 15 pin VGA, rear USB 2.0, with complete pin definitions and network port indicator lights for each interface.

Distribution of connectors on the entire board

Divided into two layout diagrams, all onboard pins such as CN1~CN19, FAN1/FAN2, SATA1/2, etc. are labeled with pin definitions:

Power supply: CN7 4pin ATX 12V auxiliary power supply (must be connected)

Fans: FAN2 (CPU fan 4pin, speed control+speed measurement), FAN1 (system fan 3pin speed measurement)

Storage: CN10 IDE, CN8 floppy drive, SATA1/2 hard drive interface

Serial parallel port: CN6 COM1 (switchable 485), CN5 COM2, CN13 parallel port

USB: CN11/CN12 two sets of onboard USB pins

Audio: CN4 docking DB-Audio2 daughter card HD audio

Chassis panel CN1: power light, hard disk light, restart, power on, speaker pin

Peripherals: CN19 external PS/2 keyboard and mouse pin, CN17 LPC expansion port

Jumper function (only two sets of critical jumpers)

JP1~JP4: COM1 serial port mode jumper, switch RS232/RS422/RS485/485+

JP5 (clear CMOS): default 1-2 is normal; Power off and short circuit 2-3 to clear BIOS settings and restore factory settings

Hardware installation steps (Getting Started)

Emphasize anti-static operation throughout the process, disconnect and disassemble all components when powered off, and prohibit bare touching of chip contacts.

LGA775 CPU installation

Standard ZIF buckle process: Press the lever → Open the cover → Remove the protective cover → Align the CPU triangle with the bottom left corner of the socket → Lay the CPU flat, close the cover and lock it; It is strictly prohibited to violently press and damage the pins, as damage will result in loss of warranty.

CPU Heat Sink Specification (Key Warning)

Universal downward pressure buckle heat sinks are prohibited as they may bend the PCB and cause permanent damage. Linghua’s designated 1U/2U/3U LGA775 copper bottom heat sink must be selected; Installation requirements:

Install a backboard and fix it on the back of the motherboard

Tighten the screws evenly diagonally to avoid uneven force and overheating of the CPU

Connect the fan cable to the FAN2 socket and hold the motherboard with both hands to prevent deformation during disassembly and assembly

Memory installation

Dual channel 240pin DDR2, notch foolproof design; It is recommended to install in pairs with the same brand, capacity, and sequence to achieve dual channels. The single-sided buckle will automatically lock, and the two side buckles can be disassembled and opened.

Power supply wiring

CN7 ATX12V auxiliary power supply must be connected; The chassis panel CN1 needs to be connected to the power on, reset, and indicator lights in order to power on normally.

Driver Installation Guide

The driver is stored on the matching All in One DVD, compatible with Windows XP/Vista, and the installation steps are divided into modules:

Q35 chipset driver: Run infist_autol.exe, restart to take effect

GMA3100 display driver: Install with one click

Dual Gigabit Network Card Driver: PRO2KXP Installation Program

ISA Bridge Driver: Device Manager manually updates INF

TPM security chip driver (DV model only)

HD Audio Driver: Only compatible with DB-Audio2 daughter card, HDA controller needs to be enabled in BIOS first

AMI BIOS 8 Complete Setup Manual

Press Delete to enter BIOS upon startup, with 8 main menus and corresponding shortcut key instructions (F1 Help, F8 Fault Default, F9 Optimization Default, F10 Save Exit, ESC Abort).

Main (Basic Information)

View CPU, memory, system time and date, and display basic hardware information.

Advanced Settings (Core submenu)

CPU configuration: FSB, cache, temperature threshold

IDE/SATA configuration: compatibility/enhancement mode switching, automatic hard disk recognition

Soft drive settings: multiple capacity mode options

Super IO: serial address interrupt, parallel EPP/ECP mode, floppy drive switch

Hardware Health: Real time Voltage, Fan, Temperature Monitoring Panel

Remote serial port redirection: COM port console, baud rate, terminal type configuration

Trusted Computing: TPM Chip Enable/Clear Key

USB settings: Legacy DOS USB support, USB 2.0 high-speed mode, USB emulation (floppy/hard disk)

PCI/PnP plug and play

Manually allocate IRQ/DMA, reserve interrupts for legacy ISA devices, and switch on ISA plug and play functionality.

Boot startup settings

Startup sequence: hard drive/optical drive/USB/network adjustable priority

Quick startup, NumLock state upon startup, full screen logo switch

Security Menu

Hierarchical password: administrator (can modify all settings), user (view only), supports clearing user passwords, forgotten passwords need to clear CMOS.

Chipset chipset settings

South Bridge configuration: Gigabit PCIe network boot, remote wake-up of network card, HD audio switch; Power strategy: power-off recovery (shutdown/power on/last state), power button behavior settings.

Exit menu

4 options: Save exit, Do not save exit, Load optimal factory, Load stable fault default.

Appendix A: Watchdog WDT Timer

Function: Software feeding dog timeout machine reset, can distinguish minute second/minute timing, range 1-255

Provide complete C language example source code, including ITE8718 Super I/O register read/write, WDT start/stop, port 0x2E/0x4E switching tool code, stored on the accompanying driver CD.

Appendix B: System Hardware Resource Table (Reference for Industrial Control Debugging Core)

Memory address mapping: ISA 15M~16M memory holes, BIOS area, APIC interrupt space

DMA channel allocation: list of channels occupied by parallel ports and floppy drives

Complete IO address mapping (000-CFF hexadecimal), SIO、IDE、PCI、 Serial port address

IRQ interrupt allocation (PIC/APIC dual-mode): Interrupts occupied by serial port, network card, SATA, USB, ISA devices

PCI bus device routing table: interrupt allocation rules for each PCI-E and PCI slot, essential for troubleshooting hardware conflicts.
