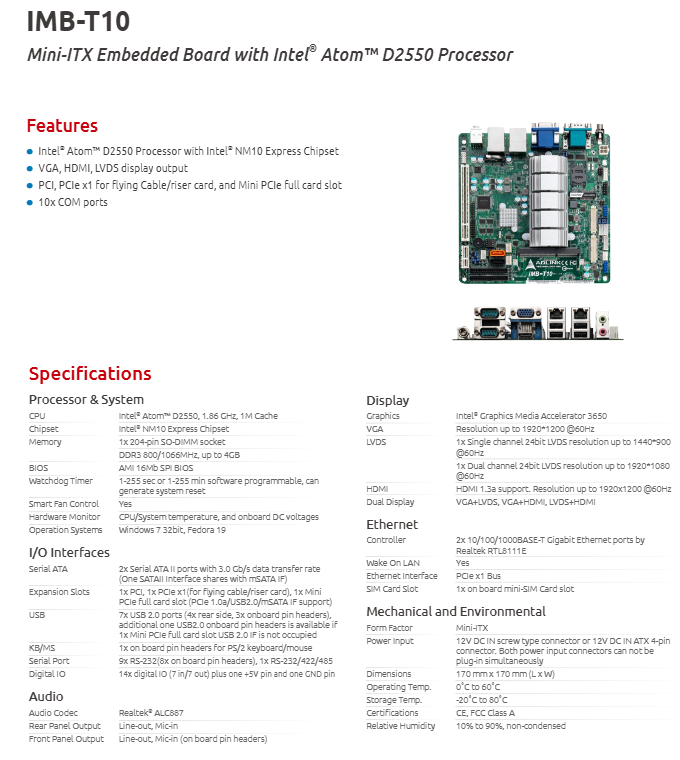

ADLINK IMB-T10 Mini ITX Industrial Motherboard

Product basic positioning

ADLINK Linghua IMB-T10 Embedded Mini ITX Motherboard Data Manual, equipped with Intel Atom D2550 low-power processor, featuring multiple serial ports, dual gigabit networks, multiple display outputs, and rich expansion slots. It is designed for industrial embedded scenarios such as industrial human-machine interface, small device control, communication gateway, lightweight data acquisition, etc. It offers two models: fanless (standard version) and fanless.

Core computing platform specifications

1. Processor and chipset

CPU：Intel Atom D2550， Main frequency 1.86GHz, 1MB secondary cache, low-power adaptation with fanless cooling solution

Supporting chipset: Intel NM10 Express

2. Memory

Single channel 204 pin SO-DIMM laptop memory slot, supports DDR3 800/1066MHz, maximum capacity 4GB

3. BIOS and hardware monitoring

BIOS：16Mb SPI AMI BIOS

Watchdog timer: software programmable, timing range 1-255 seconds/1-255 minutes, automatic machine reset upon timeout

Intelligent fan speed regulation: supports temperature control and speed regulation

Hardware monitoring: Real time collection of CPU temperature and various DC voltages of the entire machine

4. Operating system support

Windows 7 32-bit Fedora 19 Linux

Storage interface

2-channel SATA II (3.0Gb/s speed); One of them can reuse Mini PCIe slot resources with mSATA, choose one to use

MSATA solid-state drive can be expanded through Mini PCIe slot

Expansion slot configuration (core expansion capability)

Standard PCI slot: can accommodate traditional PCI acquisition cards, motion control cards, and other old-fashioned industrial control cards

PCIe x1 slot: supports external peripherals such as ribbon cables/adapter cards, compatible with the new generation of PCIe DAQ cards and network cards

Full size Mini PCIe slot: Reusable PCIe 1.0a, USB 2.0, and mSATA signals, capable of expanding wireless 4G/5G modules, solid-state drives, and USB peripherals as needed; When the slot occupies the USB channel, the additional USB pins on the board are released

Full details of I/O peripheral interfaces

1. USB 2.0 (total of 7 channels, expandable to an 8th channel)

Rear panel: 4 standard USB ports

Onboard pins: 3 sets of USB pins

Expansion rule: When Mini PCIe does not occupy the USB channel, an additional onboard USB pin is added

2. PS/2 keyboard mouse

1 set of onboard pins, supporting old-fashioned PS2 keyboard and mouse

3. Serial port (10 RS232 channels in total, including 1 multifunctional serial port)

8-way onboard pin type RS232

1 rear multifunctional serial port: supports RS232/422/485 software switching

A total of 10 serial ports, compatible with multiple sensors PLC、 Instrument communication scenario

4. Digital IO

14 independent DIOs: 7 digital inputs+7 digital outputs, matched with+5V and common GND pins, used for switch quantity acquisition and relay control

5. Audio

Codec chip: Realtek ALC887 high-definition audio

Rear: Line output, microphone input standard interface

Onboard pins: front audio line output, microphone input

Graphic display (three outputs, supports dual display asynchronous)

Integrated Intel GMA 3650 core display, three independent display interfaces, supporting any two synchronized dual displays:

VGA: up to 1920 x 1200@60Hz

HDMI 1.3a: up to 1920 x 1200@60Hz

LVDS dual channel 24 bit:

Single channel: 1440 × 900@60Hz

Dual channel: 1920 × 1080@60Hz

Support dual display combination: VGA+LVDS/VGA+HDMI/LVDS+HDMI

Network communication (dual gigabit+SIM card slot, gateway specific)

Dual Gigabit Ethernet Controller: Realtek RTL8111E, 10/100/1000M adaptive, based on PCIe x1 bus

Network function: Supports Wake On LAN remote network wake-up

Onboard Mini SIM card slot: paired with Mini PCIe 4G module for mobile cellular communication and compatible with industrial remote gateways

Mechanical, power supply, and environmental parameters

Board type standard: Mini ITX, standard size 170mm × 170mm

Power input (choose one, cannot be plugged in at the same time)

12V DC screw terminal power supply

Standard ATX 4pin 12V power supply

Environmental tolerance

Working temperature: 0 ℃~60 ℃

Storage temperature: -20 ℃~80 ℃

Relative humidity: 10%~90%, no condensation

Safety certification: CE, FCC Class A industrial grade certification

Model differentiation (differences in heat dissipation configuration)

IMB-T10: Standard heat sink, fanless, suitable for enclosed fanless devices

IMB-T10B: Heat sink+matching cooling fan, suitable for high temperature and high load conditions

Optional matching accessories

SATA data+power cable, dual port PS/2 ribbon cable, dual port USB ribbon cable, 4 serial port expansion ribbon cable
