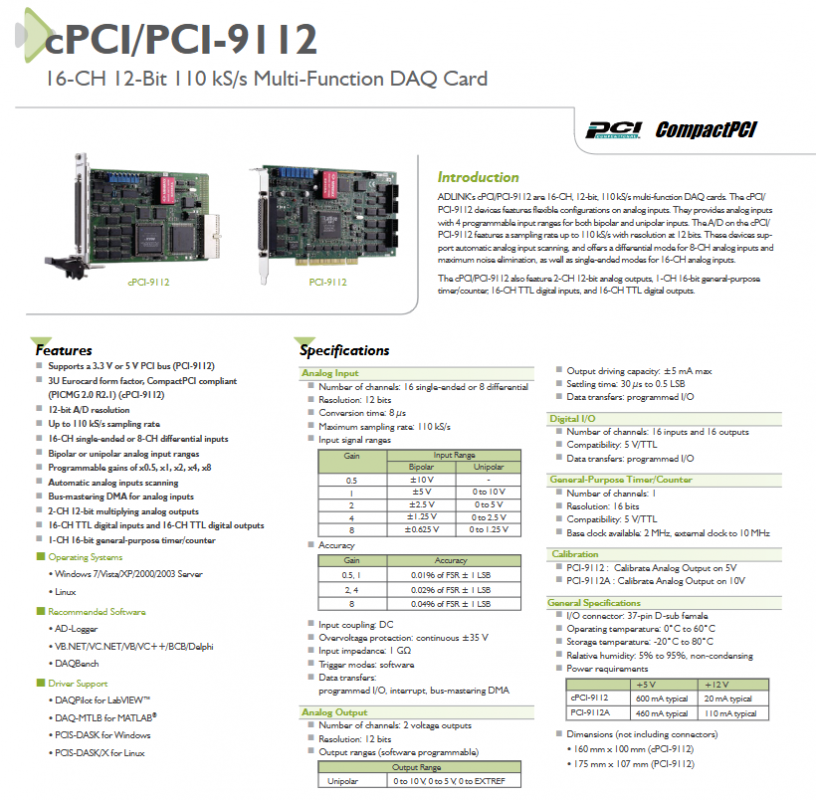

ADLINK PCI-9112/cPCI-9112 multifunctional acquisition card

Product model differentiation and form

PCI-9112: Standard 32-bit PCI 3.3V/5V compatible short card, AO factory calibrated 5V range; Size 175 × 107mm

PCI-9112A: PCI with the same appearance, AO factory calibrated 10V range

CPCI-9112: 3U CompactPCI PICMG2.1 standard, compatible with industrial control cPCI chassis; Size 160 × 100mm

Interface difference: The PCI series uses a 37 pin D-Sub connector; CPCI adopts a 100 pin SCSI-II connector

Overview of Core Hardware Functions

1. Analog input AI (12 bits, up to 110kS/s)

Channel configuration options: 16 single ended channels/8 differential channels (with stronger suppression of common mode noise)

Conversion time 8 μ s, maximum total sampling rate 110kS/s, supports automatic channel scanning

Software programmable 5-speed gain: × 0.5/× 1/× 2/× 4/× 8

Input range (single/bipolar separate configuration)

|Gain | bipolar | unipolar|

|0.5 | ± 10V | None|

|1|±5V|0~10V|

|2|±2.5V|0~5V|

|4|±1.25V|0~2.5V|

|8|±0.625V|0~1.25V|

Accuracy index: Low gain 0.01% FS ± 1LSB, x 8 high gain 0.04% FS ± 1LSB

Hardware protection: Continuous ± 35V overvoltage protection, input impedance 1G Ω, DC coupling

Data transfer methods: program IO, interrupt, PCI bus, main control DMA

2. Analog output AO (2-channel 12 bit multiplication DAC)

Output range software options: 0~10V/0~5V/external reference voltage

Maximum driving capability of ± 5mA, establishment time of 30 μ s to 0.5LSB

PCI-9112 benchmark calibration 5V, 9112A calibration 10V; only supports program IO output

3. Digital IO DIO (TTL 5V level)

16 digital inputs DIN+16 digital outputs DOUT, all 5V TTL levels, only program IO read/write

4. Universal timer counter

Single channel 16 bit independent counter, built-in 2MHz reference clock, supports external clock input up to 10MHz; Can be used for pulse measurement and triggering timing

5. Global universal characteristics

Support software triggered collection

Complete separation of AGND analog ground and DGND digital ground to reduce crosstalk

Onboard+5V,+12V auxiliary power output to external sensors

Electrical, Environmental, and Power Supply Specifications

1. Power consumption

CPCI-9112:+5V typical 600mA,+12V 20mA

PCI-9112A:+5V typical 460mA,+12V 110mA

2 Environmental parameters

Working temperature: 0~60 ℃

Storage temperature: -20~80 ℃

Relative humidity 5%~95% RH, no condensation

Software and Driver Ecology

1. Supports operating systems

Windows XP/2000/Vista/7/2003 Server、Linux

2 Development Tools and Driver Libraries

Bottom level drivers: PCIS-DASK (Windows), PCIS-DASK/X (Linux)

Third party adaptation: DAQPilot (LabVIEW driver), DAQ-MTTLB (MATLAB interface)

Upper level tools: AD Loger, DAQBench ActiveX control

Programming languages: VB, VC, BCB, Delphi,. NET (VB. NET/VC. NET)

Matching terminal board and cable accessories

PCI series (37 pin D-Sub interface)

terminal block

DIN-37D-01: DIN rail 37 pin universal terminal board

DIN-20P-01: 20 pin flat wire terminal board

ACLD-9137/9138: Universal 37 pin signal terminal

ACLD-9182/9185: Isolated digital input dedicated terminal

ACLD-9188: Dual 20 pin+37 pin composite terminal

ACL-10137-1MM 1-meter male to male 37 pin D-Sub

ACL-10137-1MF 1-meter male to female 37 pin D-Sub

ACL-10120 1-meter 20 pin flat wire

CPCI series (100 pin SCSI-II)

DIN-100S-01 DIN rail 100 pin terminal board

ACL-102100-1 1-meter 100 pin SCSI cable

Overview of connector pin layout

PCI version: Single 37 pin D-Sub CN3, integrated AI input, AO output DIN/DOUT、 Counter, external trigger, external reference, auxiliary power supply

CPCI version: 100 pin SCSI connector, fully split 8/16 channel differential single ended analog input, two analog outputs, 16DI+16DO, counter clock gating, external trigger, power reference, analog/digital layer

Signal partition: Analog signal AI/AO independent AGND, digital IO independent DGND, power pin lead+5V/+12V for external sensors

Product application scenarios

General industrial production line signal detection, sensor voltage acquisition, laboratory measurement, automated testing bench, temperature control equipment acquisition, small equipment analog excitation output, compatible with various voltage type sensors and transmitters.
