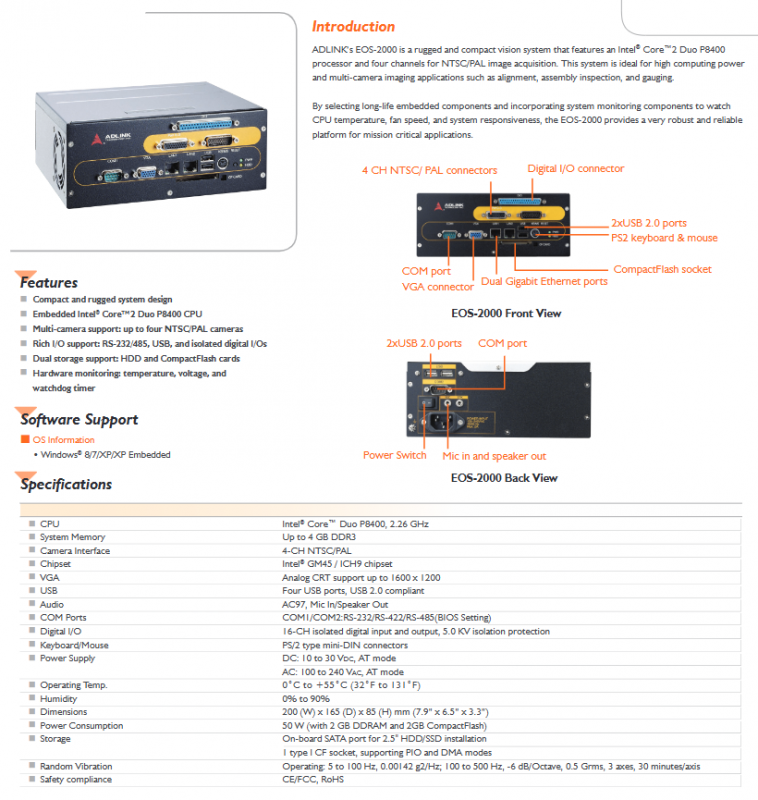

ADLINK EOS-2000 4-channel analog embedded visual controller

Basic Information

Model: EOS-2000 4-channel analog embedded visual controller

Core positioning: Equipped with a compact industrial vision host with Core 2 dual cores, specifically designed for 4-channel NTSC/PAL analog camera acquisition, suitable for machine vision scenarios such as alignment, assembly inspection, and size measurement

Product Overview and Core Advantages

1. Product positioning

Compact and sturdy simulation vision dedicated industrial computer, using long-life industrial grade components, integrating CPU temperature, fan, overall hardware monitoring, and watchdog timer to ensure long-term stable operation of critical tasks on the production line.

2. Overview of Core Features

Industrial compact and sturdy body;

Intel Core2 Duo P8400 industrial processor;

Native 4-channel analog video capture, supporting NTSC/PAL format cameras;

Rich industrial I/O: multiple serial ports USB、 High voltage isolated digital IO;

Dual storage architecture (2.5-inch SATA disk+CF card);

Built in hardware monitoring+watchdog, automatic reset for abnormal situations;

Wide temperature industrial environment adaptation, certified by CE/FCC and RoHS environmental protection.

Detailed hardware specifications of the entire machine

1. Computing core

CPU：Intel Core 2 Duo P8400， Main frequency 2.26GHz

Chipset: Intel GM45+ICH9

Memory: DDR3, maximum support 4GB

Display output: VGA analog interface, maximum resolution 1600 × 1200

2. Camera capture interface (core function)

4-channel NTSC/PAL composite analog video input, capable of simultaneously connecting 4 analog industrial cameras.

3. I/O interface resources

(1) Front panel interface

4-CH NTSC/PAL analog camera input terminal;

DB37 digital IO interface;

COM1, COM2 serial ports;

VGA display port;

Dual Gigabit Ethernet ports;

CFast (Type I) storage card slot;

PS/2 keyboard and mouse interface;

2 USB 2.0 ports.

(2) Rear panel interface

Additionally, there are 2 USB 2.0 ports available; The whole machine has a total of 4 USB2.0 ports;

COM serial port;

Audio interface: microphone input, speaker output;

power switch;

Power input interface (supporting AC/DC dual power supply mode).

(3) Serial port COM

COM1/COM2 can switch modes through BIOS: RS-232/RS-422/RS-485, suitable for various industrial sensors and actuators.

(4) Isolate digital IO

16 isolated DI+16 isolated DO, 5000V high-voltage electrical isolation, stronger anti-interference ability compared to similar products, suitable for strong electromagnetic environments in factories.

(5) Audio

AC97 standard audio, rear independent microphone, headphone jack.

4. Storage scheme (dual storage redundancy)

Onboard SATA interface: compatible with 2.5-inch mechanical hard disk HDD/solid-state drive SSD;

Type I CompactFlash card slot: Supports PIO and DMA transfer modes, and can be used as a standalone system disk/data disk.

5. Power supply specifications

There are two power supply modes to choose from:

DC: 10-30V wide voltage AT power supply;

AC communication: 100-240V mains AT power supply;

The typical power consumption of the whole machine is 50W (when configured with 2GB memory and 2GB CF card).

6. Mechanical and environmental parameters

Dimensions: Width 200mm x Depth 165mm x Height 85mm;

Working temperature: 0 ℃~+55 ℃;

Humidity: 0%~90% (no condensation);

Vibration tolerance (working state): three-axis 30 minute test, low amplitude vibration of 5-100Hz, maximum 0.5Grms, suitable for vibration scenarios of production line equipment;

Compliance certification: CE, FCC Class A, RoHS environmental directive.

Software operating system support

Compatible with mainstream Windows industrial systems:

Windows 8 / Windows 7 / Windows XP / Windows XP Embedded， Adapt to traditional simulation vision software and industrial control configuration programs.

Ordering model and optional accessories

Standard model: EOS-2000 (standard 4-channel analog vision machine, P8400 processor)

Upgradeable optional accessories:

4GB DDR3 memory expansion;

Pre installed 160GB SATA mechanical hard drive;

8GB/40GB SATA solid state drive pre installed.
