ALCATEL-LUCENT 9500 MICROWAVE PACKET RADIO

​Product positioning and application scenarios

Main applications

Mobile operator base station feedback and backbone transmission;

Public safety, industrial private network, land mobile wireless interconnection;

Enterprises ISP、 Operator wide area network (WAN) interconnection.

Hardware configuration form

Wireless terminal (standard microwave point-to-point)

Wireless relay station

Multi directional microwave node

RF free aggregation rack, only for business aggregation

Hardware component list

MSS Indoor Business Exchange Unit (IDU)

MSS‑8：2RU； MSS‑4：1RU； MSS‑1c：1RU， Half width rack;

The full weight of the whole machine is less than 6 kg, and the basic configuration is 2.5 kg. It supports three types of installations: rack, desktop, and wall mounted;

MPT-HL indoor microwave unit: 2.5RU height; Weight 8.85 kg (1+0 configuration)/12.7 kg (1+1, 2+0 redundancy);

ODU multi-purpose outdoor RF unit: average weight of 5kg;

The whole machine can connect up to 12 RF transceivers and supports mixed mode/pure packet mode.

Core functional characteristics

business capability

Built in CES circuit simulation (MEF-8 standard) to enable Carrier Ethernet to carry TDM; Supports DS1 and DS3 services, terminating up to 192 DS1 channels;

Business switching capacity: basic>16 Gbps, with a maximum of 48 Gbps when an EAS card is added; Wireless link throughput>4 Gbps;

Support XPIC cross polarization interference cancellation, upgradable to achieve ultra large capacity;

Support ITU-T G.8032 multi service packet ring protection;

Support lossless switching service driven adaptive modulation.

Synchronization and timing

SyncE synchronous Ethernet+SSM; IEEE 1588v2 PTP Precision Time Protocol;

Built in Stratum-3 level clock; Supports DS1, external 2/5/10 MHz reference clock input and output; Support ACR and DCR line clock recovery; Both mixed mode and grouped mode can provide synchronization.

Ethernet Services and OAM

IEEE 802.1ag Ethernet OAM;

LAG link aggregation: supports both wireless NNI interface and Ethernet UNI user interface simultaneously;

VLAN tagging 802.1p/Q, 802.1ad; Traffic QoS: Based on Layer 2 802.1p tagging and Layer 3 DiffServ differential service tagging.

Redundancy and reliability

Complete redundant architecture, no single point of failure, including Ethernet switching matrix redundancy;

Built in self checking function to enhance performance and reliability;

Implement node microwave configuration using a single packet switching matrix.

management system

Embedded web network management for network element monitoring;

SNMP agent, supporting TCP/IP routing;

Compatible with supporting network management: 5620 SAM, 1340 INC, TSM8000; Windows platform integrated network management; PC software configuration.

Benefits brought by the product

Reduce OPEX operating costs: Multiple access technologies are uniformly aggregated at the Ethernet aggregation layer to reduce external devices.

Protecting investments and smoothly migrating TDM to IP: The same hardware can run in hybrid mode (Ethernet+PDH) or pure packet mode; Compatible with old hybrid mode ODU.

A set of hardware covers all microwave application scenarios.

Ensuring TDM deterministic performance in packet networks: comparable to native TDM performance; Congestion nodes ensure high priority services.

Simplified deployment: supports pre configuration, quick start, and fast network planning.

Reduce server room occupancy and rack power consumption: achieve powerful node capabilities with a small size.

End to end business perception management, in conjunction with Alcatel Lucent network management suite.

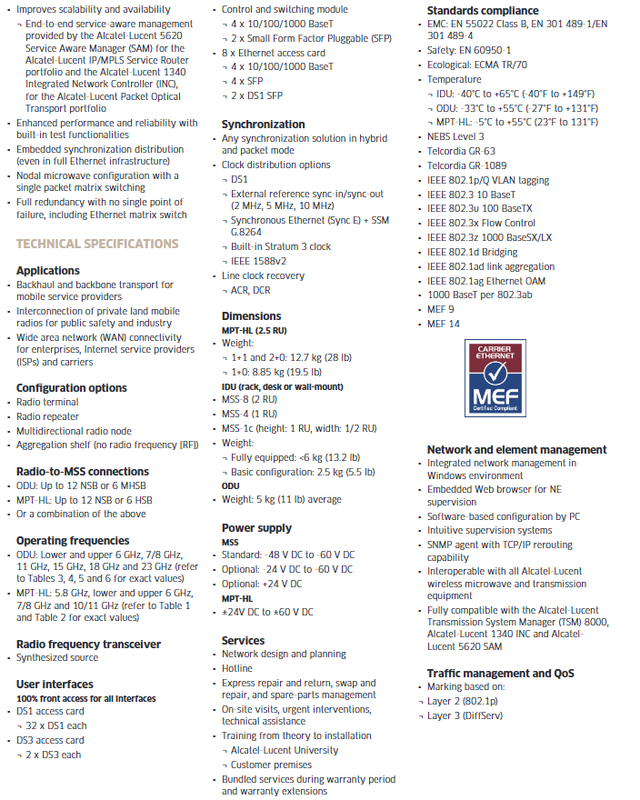

Interface, RF frequency band, power supply, environmental parameters

User interface (front maintenance of all interface panels)

DS1 access board: 32 x DS1 per board;

DS3 access board: 2 x DS3 per board;

Control switch module: 4 × 10/100/1000Base-T, 2 SFPs;

8-port Ethernet card: 4 x Gigabit Ethernet ports, 4 x SFP, 2 x DS1-SFP.

RF support frequency band

ODU outdoor unit: 5.8G, 6G upper and lower frequency bands, 7/8 GHz, 11 GHz, 15 GHz, 18 GHz, 23 GHz;

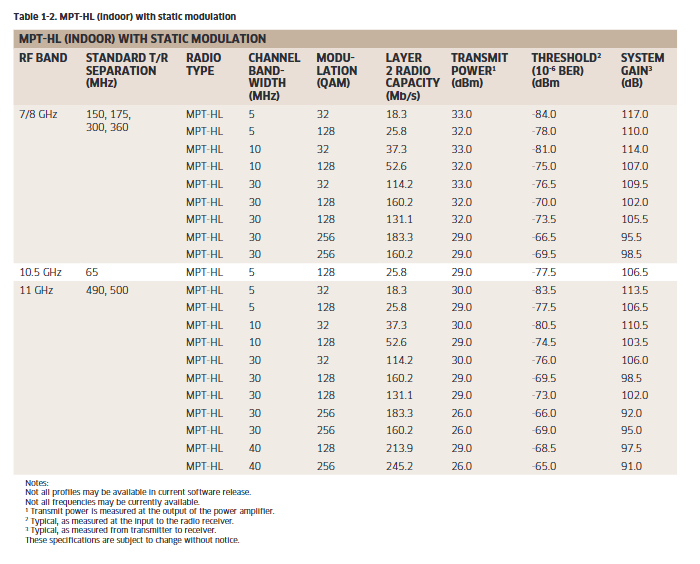

MPT-HL indoor unit: 5.8 GHz, 6G up and down, 7/8 GHz, 10/11 GHz; The RF module uses a frequency synthesis source.

power supply

MSS series IDU: Standard 48~60 VDC; Optional -24~-60 VDC; Optional+24 VDC;

MPT-HL: ± 24   V~± 60   V DC.

temperature environment

Unit operating temperature range

IDU indoor unit -40 ℃~+65 ℃

ODU outdoor unit -33 ℃~+55 ℃

MPT-HL indoor unit -5 ℃~+55 ℃

Compliance Standards

EMC：EN55022 Class B、EN 301 489‑1/4；

Safety: EN 60950-1; Ecological ECMA TR/70;

Telecommunications industry standards: NEBS Level 3, Telcordia GR-63, GR-1089;

The complete set of IEEE standards for Ethernet MEF‑9 / MEF‑14。

Supporting services

Network design and planning;

Hotline technical support; Urgent repair and spare parts management;

On site visits and emergency fault intervention;

Training: Alcatel Lucent University training, on-site customer training;

Warranty bundled services and warranty extensions.
