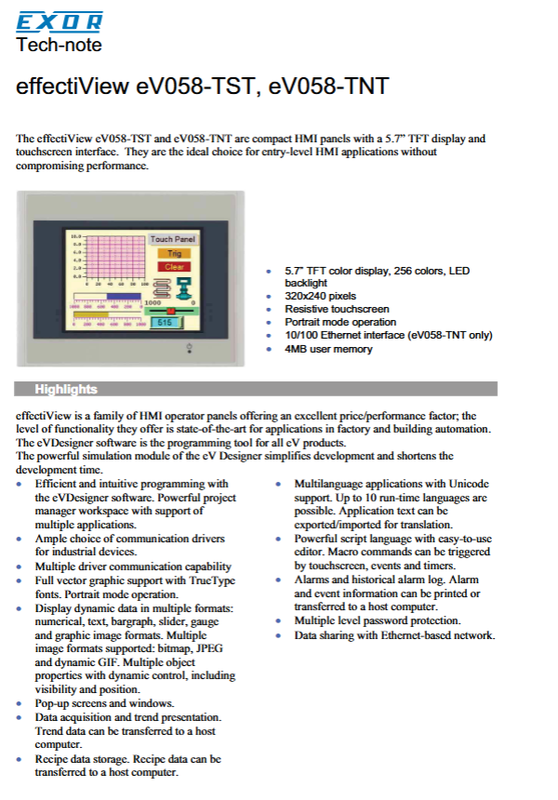

Exor Effectiveness View eV058- TST/eV058- TNT Industrial Touch Screen HMI Human Machine Panel

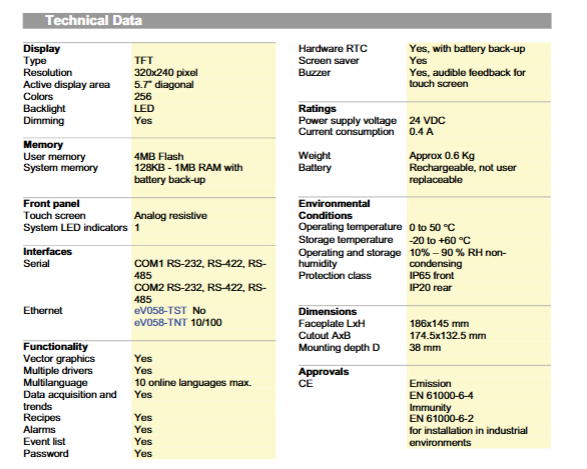

​Product hardware specifications

Display and Touch Control

Screen: 5.7-inch TFT color display screen, 256 colors, LED backlight; Resolution 320 × 240

Touch: resistive touch screen; Support portrait display mode

memory

User storage: 4MB battery backup Flash memory

The system memory is divided into two versions: standard version 128KB; R4 version upgraded to 1MB system memory

Hardware RTC real-time clock with battery backup

Communication interface (backplane interface diagram)

There are 5 sets of interfaces on the backplane:

Terminal block: 24 VDC DC power input

RJ45 Ethernet: only available with eV058-TNT, 10/100M Ethernet; TST without network port

COM1 serial port: supports RS-232/RS-422/RS-485 4,5. COM2 serial port: supports RS-232/RS-422/RS-485

Electrical, Mechanical, and Environmental

Power supply: 24 VDC; The total weight of the machine is about 0.6 kg

Front panel protection level: IP65 (front, suitable for control cabinet panel opening installation)

Working temperature: -20 ℃~+60 ℃; Humidity 10-90% RH without condensation

EMC: Meets EN 61000-6-2 industrial environment anti-interference standard

Software functional features (based on eVDesigner configuration software)

The supporting programming software is eVDesigner, which is a unified development tool for the entire effectoView series HMI.

development capability

Built in simulation simulator, directly simulate engineering on PC, shorten development cycle; Multi project manager for multiple engineering projects.

Complete vector graphics, supporting True Type vector fonts; Supports bitmap BMP, JPEG, and dynamic GIF images.

Screen and Interaction

Pop up window/pop-up window; Control dynamic properties (visibility, dynamic position changes).

Data display: Multiple formats including numbers, text, bar charts, sliders, gauges, and graphics.

Data function

Data collection, trend curve, and trend record data can be uploaded to the upper host.

Formula storage; Formula data supports exporting and uploading to the host.

multilingual

Unicode support, up to 10 online running languages can be run; Text supports import and export for easy translation.

Script, Alarm, and Security

Script macro language editor; Macros can be triggered by touch actions, events, and timers.

Alarm function, historical alarm logs; The alarm information can be printed or uploaded to the upper computer.

Multi level password permission protection.

Communication driver: enrich the industrial equipment driver library; Can simultaneously drive multiple communication channels; TNT models support Ethernet network data sharing.

Order Model Comparison Table

Model Core Configuration

EV058-TST-2A 5.7-inch HMI; 4MB user Flash; System memory 128KB; no Ethernet

EV058-TST-2A-R4 Same as above, system memory upgraded to 1MB

EV058-2TNT-2A 5.7-inch HMI; 4MB user Flash; System memory 128KB; with 10/100M Ethernet

EV058-TNT-2A-R4 as above, system memory upgraded to 1MB
