Exor UniOP ePAD05/ePAD06 Compact HMI Industrial Human Machine Panel

Product Overview

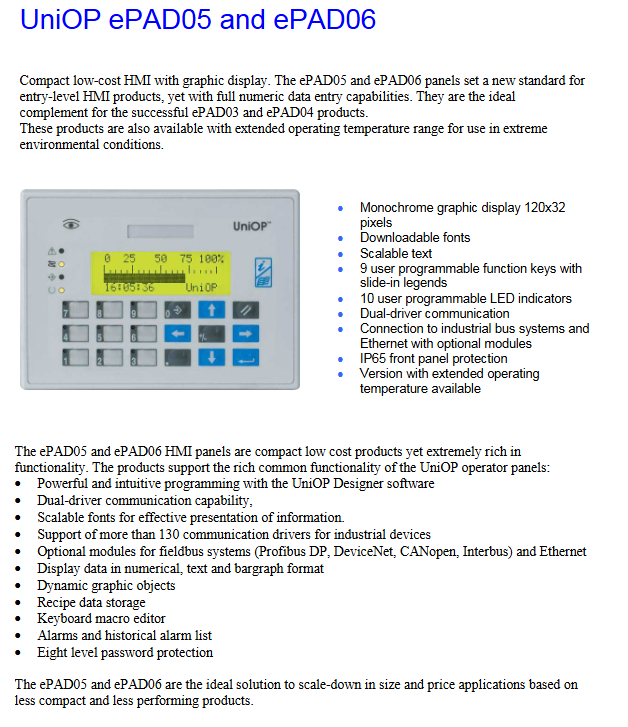

EPAD05 and ePAD06 are compact monochrome graphic HMIs without touch screens, with full button operation and support for complete digital input; Optional expansion modules for fieldbus and Ethernet communication; Equipped with a wide temperature range to adapt to harsh working conditions; Developed using UniOP Designer configuration software. The appearance of the two hardware is completely identical, but there are differences in functionality, with ePAD05 having stronger functionality.

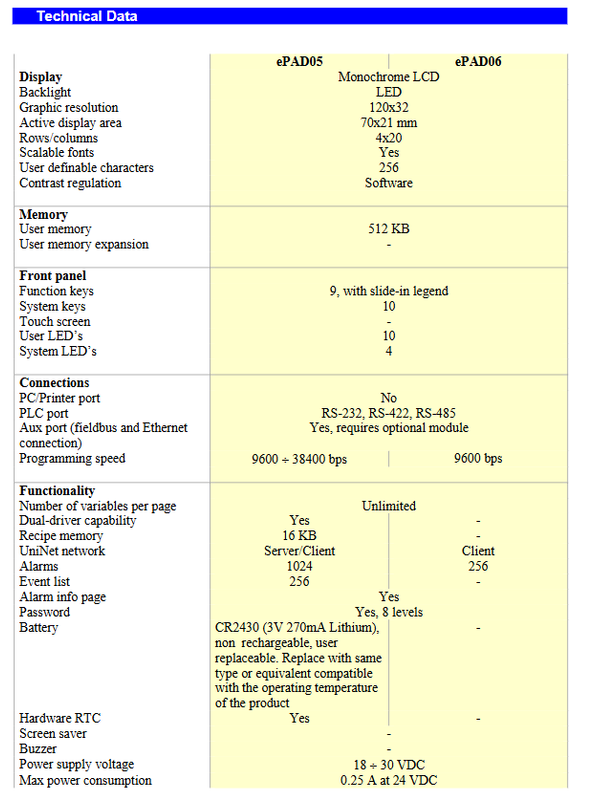

Hardware parameters

Display unit

Screen: monochrome LCD, LED backlight; Resolution of 120 × 32 pixels, effective display area of 70mm × 21mm, text format of 4 rows × 20 columns.

Supports scalable fonts and 256 user-defined characters; Contrast software adjustment.

Buttons and indicator lights

9 user-defined function buttons, supporting insertable and replaceable label paper (optional printing label paper accessory R-PRIMT3148)

10 system function buttons; 10 user programmable LED indicator lights; 4 system status LEDs.

The whole machine has no touch screen, buzzer, or screen protection function.

Comparison of Storage and Core Functions

Project ePAD05 ePAD06

User Memory 512KB Flash 512KB Flash

Formula storage of 16KB is not supported

Hardware RTC real-time clock ✅ (CR2430 3V lithium battery, user replaceable, non rechargeable) ❌

Dual drive simultaneous communication ✅   ❌

UniNet network mode server/client only client

Alarm record capacity 1024 alarms, 256 event lists 256 alarms

Password Permission Level 8 Password Protection Level 8 Password Protection

Programming download baud rate 9600-38400bps, only 9600bps

communication interface

PLC main ports: RS-232/RS-422/RS-485.

Aux auxiliary port: can be equipped with external optional modules, expanding Profibus DP, DeviceNet, CANopen, Interbus, Ethernet.

No native PC/print port.

Driver library: Supports over 130 types of industrial PLC/controller communication drivers.

Electrical Specifications

Power supply: 18-30 VDC, typical 24VDC; Maximum Power Consumption 0.25A@24V .

Built in overcurrent fuse protection.

Whole machine weight: 1   kg.

Environment, Protection, and Machinery

The front panel has a protection level of IP65 and is suitable for installation with control cabinet panel openings.

EMC standard: emission EN 61000-6-4; Immunity to EN 61000-6-2 industrial environments.

Temperature:

ePAD05‑0046 / ePAD06‑0046：0 ~ +50℃

EPAD05-00B7 (wide temperature version): -20~+60 ℃

Storage temperature: -20~+70 ℃; Humidity 5-85% RH, no condensation.

Panel size: 149 × 109 mm; opening size 136 × 96 mm; installation depth 53 mm; maximum thickness of cabinet panel 5 mm.

Software Features (UniOP Designer)

UniOP Designer configuration software, supporting dual driver communication;

Data display: numbers, text, bar charts, dynamic graphic objects;

Formula storage (ePAD05 only); Keyboard macro editor;

Alarm and historical event list; Level 8 user password permission;

UniNet network communication; External optional modules can be used to expand various types of fieldbus.

Order Model List

Model Description

EPAD05-0046 standard type, with RTC real-time clock, 0~+50 ℃

EPAD05-00B7 ePAD05 Wide Temperature Expansion Edition, -20~+60 ℃, with RTC

EPAD06-0046 basic version, no RTC, 0~+50 ℃, function deleted

R-PRIMT3148 accessories: button label printing paper, 5 A4 sheets, each containing 10 sets of labels
