Milacron ELEKTRON 400/500/600 series fully electric injection molding machine

Product positioning and core advantages

ELEKTRON is Milacron’s fully electric injection molding machine series, covering three tonnages of 400/500/600, consolidating the brand’s all electric technology accumulation since 1985, and focusing on four core values:

Economy: 60% energy-saving and 90% water-saving compared to hydraulic presses, with no waste oil treatment costs

Dynamics: Standard full axis parallel motion, optimized elbow mechanism, better cycle time

Precision: Servo closed-loop control, with repeat positioning accuracy far exceeding that of hydraulic presses, and extremely low defect rate

Cleanliness: No hydraulic oil, no leakage, no slipping risk, supports clean room production

Typical application areas

medical

car

Electronic consumer goods

Building accessories

Control System: ENDURA TOUCH

Hardware: 15 inch color touch screen, B&R high-performance control

Operation: The interface is intuitive, and any page can be accessed with up to 2 clicks

Function:

Store 80 sets of mold data

Record 3000 alarms/parameter modifications

Graphic monitoring of 33 process parameters

3 x 3 configurable I/O, USB/RS232/Ethernet interfaces

4-level permission management, supporting 100 operator accounts

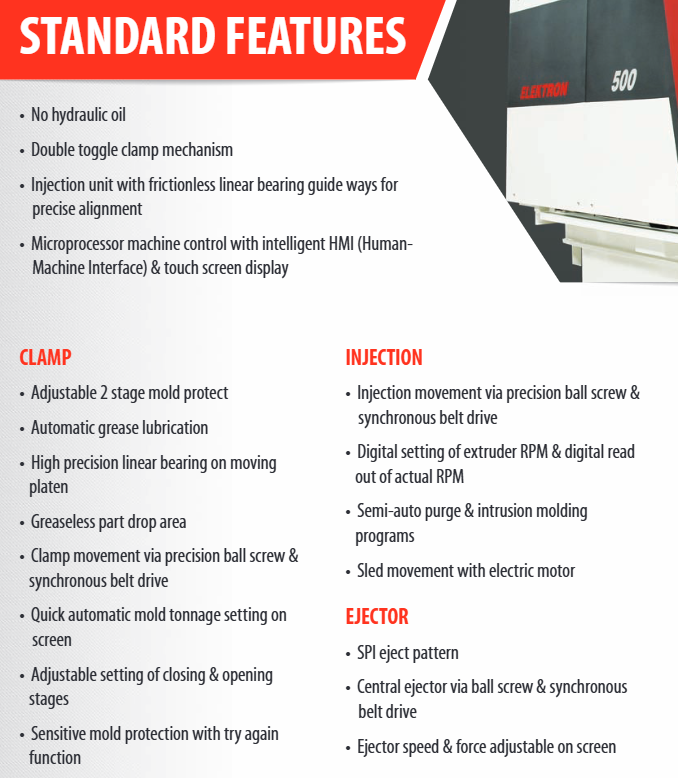

Standard functional configuration

Mode-locking unit

Hyperbolic elbow locking mechanism

Dynamic template high-precision linear guide rail

Ball screw+synchronous belt drive

One click automatic screen adjustment

Intelligent mold protection (retry function)

Automatic lubrication system

injection unit

Ball screw+synchronous belt driven injection

Frictionless linear guide rail support shooting table

Numerical setting and real-time display of screw speed

Semi automatic cleaning program

Load cell real-time monitoring of melt adhesive pressure

Top out and temperature control

Electric ball screw with adjustable speed/force online

Heater disconnection and thermocouple disconnection detection

Cold start preheating protection

Standby energy-saving standby mode

Drive and Control

Full axis high-precision servo motor

EtherPowerlink high-speed bus

Locking/ejecting can be operated in parallel

Screen energy monitoring

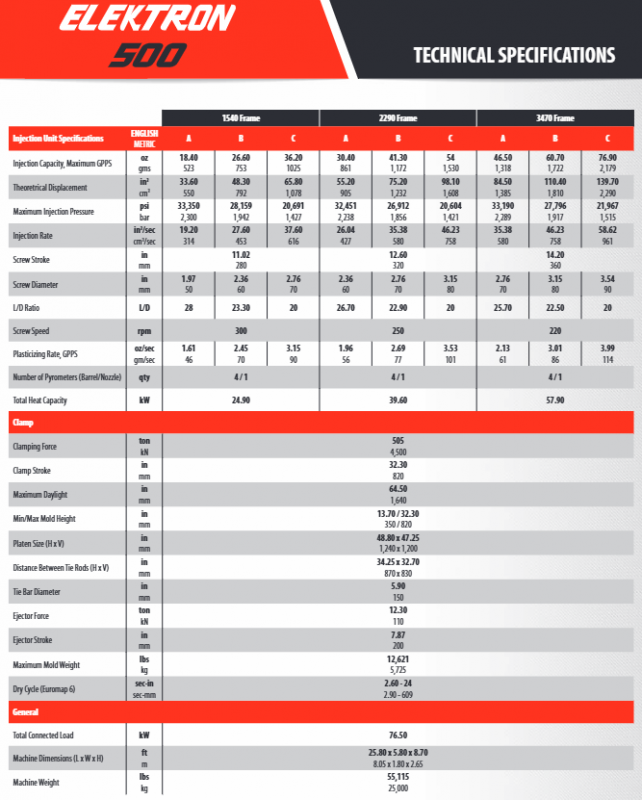

Core technical specifications (brief table)

Model locking force, maximum injection pressure, screw diameter, overall power, weight

ELEKTRON 400 400 tons 33350psi 45-70mm 55.8kW 17300kg

ELEKTRON 500 505 tons 33350psi 50-90mm 76.5kW 25000kg

ELEKTRON 600 618 tons 33350psi 60-100mm 119kW 32750kg

Key questions and answers

Question 1: What are the core advantages of ELEKTRON fully electric injection molding machines compared to traditional hydraulic presses?

answer:

Save 60% energy and 90% water, significantly reducing operating costs

No hydraulic oil, no leaks, no oil stains, no safety hazards, can be directly used in clean rooms

Standard full axis parallel motion, faster movement and shorter cycle

The precision of servo control is much higher than that of hydraulic control, with high repeatability and low defect rate

Question 2: What are the key functions of the ENDURA TOUCH control system and what value can it bring to production?

Answer: The core functions include a 15 inch touch screen, 80 sets of mold storage, 3000 alarm/parameter records, 33 parameter graphical monitoring, and 4-level permission management. Value: Fast mold change, simple operation, strong traceability, easy process stability and maintenance management, reducing operational difficulty and human errors.

Question 3: What are the differences between ELEKTRON 400/500/600 in terms of locking force, maximum injection pressure, and applicable mold weight?

answer:

Locking force: 400 tons → 505 tons → 618 tons (gradually increasing)

Maximum injection pressure: All three models can reach 33350psi (2300bar), with consistent high-pressure performance

Maximum mold weight: about 3950kg for 400 type, 5725kg for 500 type, 8300kg for 600 type, suitable for larger and heavier molds.
