Microchip dsPIC30F series 16 bit high-performance digital signal controller

Product positioning and core architecture

DsPIC30F is a 16 bit high-performance digital signal controller (DSC) launched by Microchip, which integrates MCU control capabilities and DSP computing capabilities, and adopts an improved Harvard architecture:

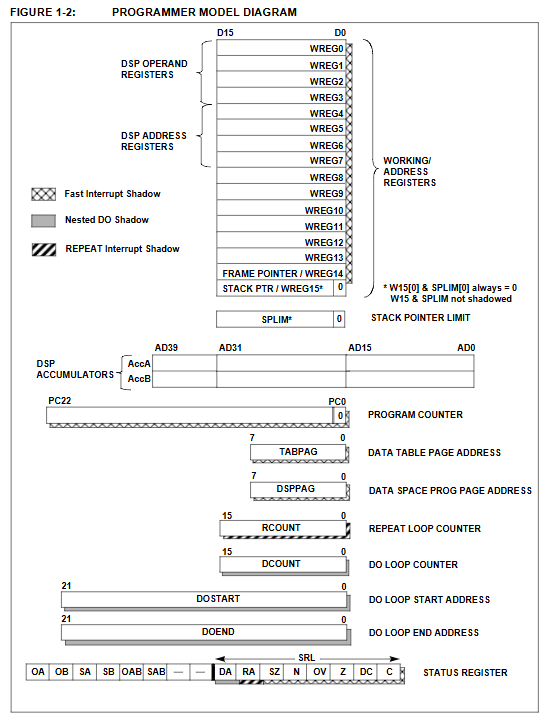

Instruction bit width: 24 bits

Data bit width: 16 bits

Working register: 16 x 16 bits

Program counter: 23 bits, maximum addressing 4M x 24 bits

Performance: Up to 30 MIPS, clock input DC~120MHz

CPU core characteristics

Computational unit

16 × 16 bit single cycle hardware multiplier

Dual 40 bit accumulator (with saturation logic)

40 level barrel shifter (can move 15 positions to the right/16 positions to the left in a single cycle)

Single cycle MAC (multiply accumulate) operation

Interrupt system

Interrupt source: up to 32

Abnormal vectors: 15 (8-level interrupt+7-level trap)

Priority: Level 8 programmable

Delay: Normal 3 cycles, fast interrupt 1 cycle

Storage configuration (maximum value)

Storage Type Capacity

Program Flash 144KB

Data RAM 8KB

EEPROM 4KB

64KB linear addressing data space

Key parameters of DSP engine

Module indicators

Multiplier 16 × 16 bits, single cycle

Accumulator 2 x 40 bits, saturated/rounded

Shifter 40 levels, single cycle shifting

Dual data read support (dual AGU)

Loop buffer hardware module addressing

Bit reversal addressing supports FFT optimization

Peripheral functions

Simulate peripherals

10 bit ADC: 16 channels, 500ksps, sleep convertible

12 bit ADC: 16 channels, 100ksps, sleep convertible

LVD low voltage detection, BOR power-off reset

timer

5 16 bit timers, of which 4 can be combined into 2 32-bit timers

Timer1 supports 32kHz RTC

Motion Control

Motor control PWM: up to 8 outputs, 16 bit precision

Orthogonal encoding interface QEI: x2/x4 counting, input filtering

communication interface

SPI: 3-wire, supports 4 modes

I2C: master/slave, 7/10 bit address

UART: Address wake-up, Start bit wake-up

CAN: 2.0B protocol, up to 1Mbps

DCI: Supports I ² S and AC’97 audio protocols

I/O port

Up to 54 programmable I/O channels

25mA sink/source driving capability per channel

Partial support for change interruption

Power and Power Management

Working voltage: 2.5V~5.5V

Power consumption mode:

SLEEP (sleep mode)

IDLE (idle)

Slowdown

Built in power on reset (POR), power on timer (PWRT), oscillator stabilization timer (OST)

Exception handling and reset

Exception Type

reset

Traps (7 types: oscillator failure, stack error, address error, arithmetic warning, software trap, etc.)

Interrupt (Level 8 priority)

Reset source

Power on reset POR

External MCLR reset

Watchdog WDT reset

Power off reset BOR

Command reset

Development toolchain

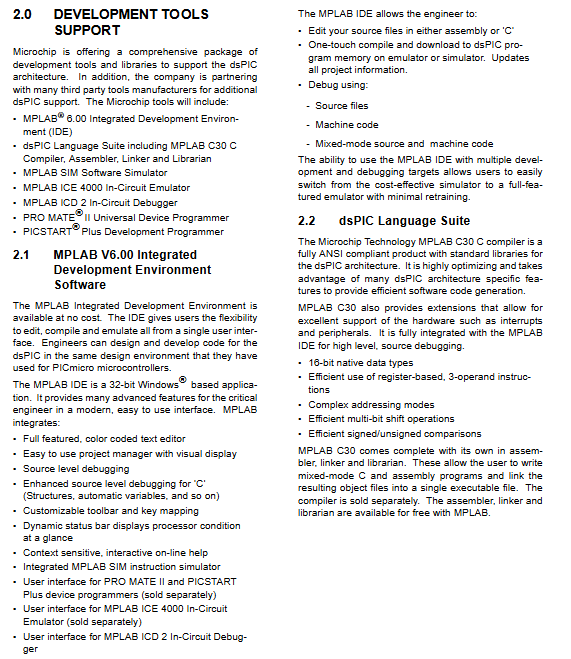

MPLAB IDE v6.0: Integrated Editing/Compilation/Debugging

MPLAB C30: ANSI C Optimized Compiler

MPLAB SIM: Instruction Level Software Simulator

MPLAB ICE 4000: Online Real time Simulation

MPLAB ICD 2: Online Debugging+Programming

PRO MATE II: Universal Mass Production Programmer

Key questions and answers

Question 1: What are the core advantages of dsPIC30F compared to traditional 16 bit MCUs? What are the key hardware supports?

Answer: The core advantage is that it has both the control capability of MCU and the high-speed computing capability of DSP, which can realize complex algorithms and real-time control on a single chip. Key hardware: single cycle 16 × 16 multiplier, dual 40 bit accumulator, dual address generation unit (AGU), 40 level barrel shifter, supporting single cycle MAC operation and parallel data reading.

Question 2: What are the key parameters of the interrupt system for dsPIC30F? What is the significance of rapid interruption?

Answer: Key parameters: up to 32 interrupt sources, 15 exception vectors, and 8 levels of programmable priority; Normal interrupt has a delay of 3 cycles, while fast interrupt has a delay of 1 cycle. Fast interrupts are used in extremely real-time scenarios such as motor overcurrent protection and high-speed sampling, which can compress response time to the minimum and avoid control failure.

Question 3: What specialized peripherals does dsPIC30F provide for motor control? What functions do they respectively undertake?

answer:

Motor control PWM module: generates synchronous multi-channel PWM, supports three-phase motor drive, dead zone control, and fault protection.

Orthogonal Encoding Interface QEI: Read the encoder position and velocity to achieve closed-loop servo control.

High speed ADC: synchronously samples current/voltage to achieve vector control and overload protection.

The combination of the three can achieve high-performance servo drive for BLDC, permanent magnet synchronous, and induction motors on a single chip.
