CapXon UJ series aluminum electrolytic capacitors

​Product positioning and core features

Product type: Snap in aluminum electrolytic capacitor

Temperature rating: 105 ℃, vehicle grade standard

Life indicators

Durability: 105 ℃/2000 hours

Effective lifespan: 105 ℃/5000 hours

Reliability: The loss factor and leakage current are extremely stable, suitable for harsh environments

Certification support: AEC-Q200 version available

Environmental and Electrical Specifications

1. Environmental parameters

Parameter values

Working temperature -40~+105 ℃ (200~450V); -25 ~ +105℃（500~550V）

Storage temperature follows device standards

Vibration resistance 10g, 10~55Hz, amplitude 0.75mm, 2h on each axis (IEC 60068-2-6)

2. Electrical parameters

Parameter specifications

Rated voltage VR 200~550VDC

Capacity CR 47~3300 μ F

Capacity tolerance ± 20% (120Hz/20 ℃)

Surge voltage VS VR ≤ 315V: 1.15 × VR; VR>315V: 1.10 × VR

Leakage current ILEAK ≤ * * 3 ·√ (CR/VR) * * μ A (20 ℃, after adding VR for 5 minutes)

Loss factor tan δ 200~400V: ≤ 15%; 450~550V：≤20%（120Hz/20℃）

3. Life test indicators

Test project conditions: capacitance change tan δ leakage current

Effective lifespan 105 ℃/5000h ≤± 20% ≤ 200% Initial value ≤ Initial value

Durability 105 ℃/2000h ≤± 15% ≤ 175% Initial value ≤ Initial value

Storage life 105 ℃/1000h (no pressure) ≤± 15% ≤ 175% Initial value ≤ Initial value

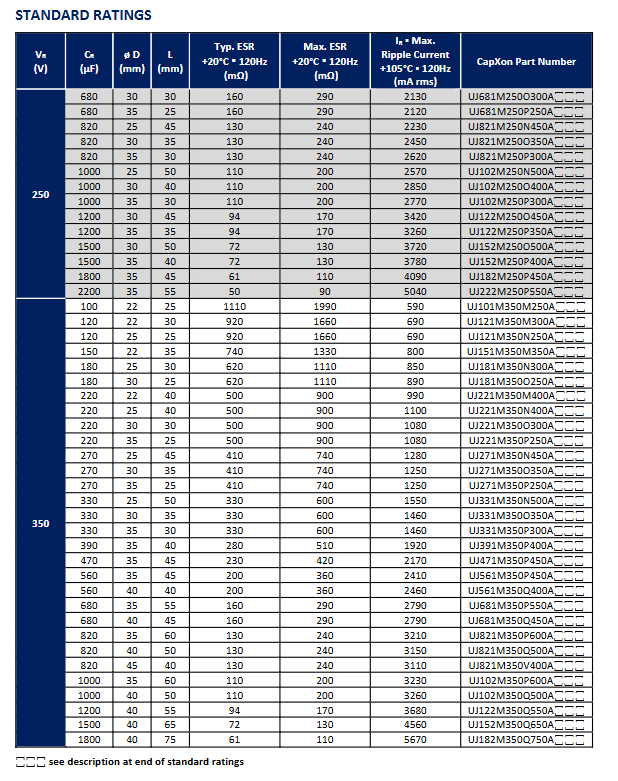

Size and Specification Table (Core)

Voltage coverage: 200/250/350/400/450/500/550VDC

Capacity: 47~3300 μ F

Body diameter: φ 22~φ 65mm

Body length: 25~80mm

ESR（20℃/120Hz）：33~3230mΩ

Ripple current IR (105 ℃/120Hz): 470~5850mA rms

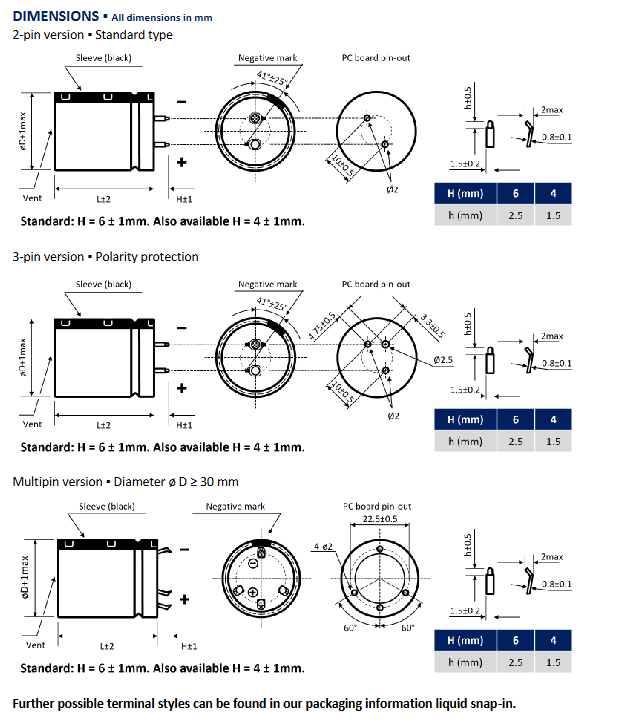

Mechanical structure and pins

Pin type: 2-pin standard, 3-pin polarity protection, multiple pins with a diameter of ≥ 30mm

Pin length: Standard 6mm, optional 4mm

Pin code

P6: Standard 2-pin 6mm

P4: Standard 2-pin 4mm

Z6/Z4: 3 needles 6mm/4mm

Y6/Y4: Multiple needles 6mm/4mm

Suffix X: AEC-Q200 version

Ripple current frequency coefficient

Voltage level 50/60Hz 100/120Hz 300Hz 1kHz 10kHz 50k~100kHz

200~250V 0.81 1 1.17 1.32 1.45 1.5

350~550V 0.77 1 1.16 1.3 1.41 1.43

Key questions and answers

What are the effective lifespan and durability of the UJ series at 105 ℃, and what is the difference between the two?

Answer: The effective lifespan is 5000 hours, which refers to the reliable usage time under long-term rated working conditions; The durability is 2000 hours, which refers to the duration of high-temperature pressure accelerated aging testing, all under 105 ℃ conditions.

What is the upper limit of the loss factor tan δ for different voltage ranges of the UJ series, and how is the leakage current calculated?

Answer: Tan δ ≤ 15% for 200~400V range, Tan δ ≤ 20% for 450~550V range; The leakage current formula is ILEAK ≤ 3 ·√ (CR · VR) μ A, measured at 20 ℃ and after applying the rated voltage for 5 minutes.

How does the UJ series distinguish between the regular version and the AEC-Q200 car specification version, and what are the pin configurations?

Answer: The model suffix with X refers to AEC-Q200 version (such as P6X, Z6X); The pins support 2-pin/3-pin/multi pin, with optional lengths of 4mm/6mm. 3-pin is used for polarity protection, and multi pin is used for large sizes with a diameter ≥ 30mm.
