TIANMA NL8060BC21-11KG 8.4-inch TFT LCD module

Product Overview

Product type: a-Si TFT active matrix color LCD display module

Size specification: 8.4 inches (21cm), resolution SVGA 800 × 600

Core configuration: Integrated second-generation projected capacitive touch screen (PCAP), LED backlight, signal processing board

Quality level: Standard (for non safety control scenarios such as general industrial and in car entertainment)

Compliance certification: Compliant with EU RoHS 2011/65/EU and 2015/863/EU

Key General Parameters

Typical parameter values

Display area 170.4 (H) × 127.8 (V) mm

Module size 200.0 × 152.0 × 10.1 mm

Weight 370g (typical), 410g (maximum)

Pixel arrangement RGB vertical stripes

Pixel spacing 0.213 × 0.213 mm

Response time Ton=3ms, Toff=15ms (total 18ms)

Color 16777216 colors (8-bit)/262144 colors (6-bit)

Optical performance

Brightness: 750cd/m ² (50mA/backlight)

Contrast ratio: 800:1

Brightness uniformity: ≤ 1.4

Viewing angle: 80 ° in all directions (contrast ratio ≥ 10:1)

Color gamut: 40% NTSC (typical)

Backlight lifespan: 70000 hours (25 ℃); 60000 hours (80 ℃)

Electrical characteristics

1. Mainboard power supply

Voltage: 3.3V (range 3.0~3.6V)

Current: Typical 230mA, maximum 340mA

Allowable ripple: ≤ 100mVp-p

Fuse: 2.0A/36V, melting current 4.0A

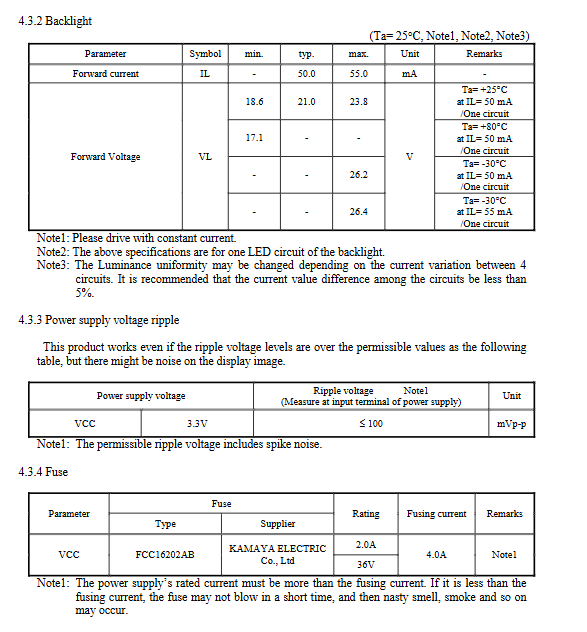

2. LED backlight

Drive mode: constant current, 4-channel independent

Single current: 50mA (typical), maximum 55mA

Forward voltage: 21.0V (25 ℃/50mA)

Brightness adjustment: controlled by current

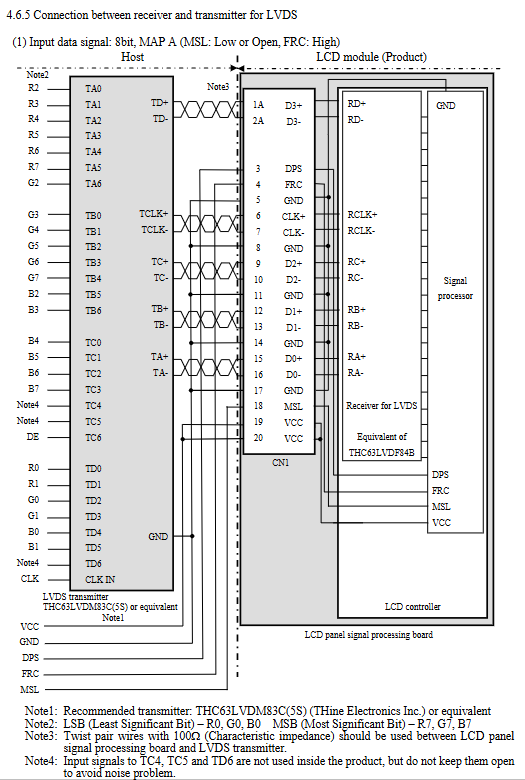

3. Signal interface

Type: LVDS Single Port

Support: 8-bit/6-bit RGB switchable

Control signal:

DPS: Scanning direction (normal/reverse)

FRC: Color Bit Count (16.77 million colors/260000 colors)

MSL: LVDS Data Mapping Selection

Touch screen specifications

Type: Projection capacitor (PCAP Gen2)

Cover plate: 0.7mm tempered glass, surface anti glare

Hardness: ≥ 2H

Touch points: 1-16 points

Accuracy: Center ≤ 1.5mm, edge ≤ 2.5mm

Scanning frequency: activate 100Hz, sleep 30Hz

Resolution: 4096 × 4096

Environment and reliability

Working temperature: -30~+80 ℃

Storage temperature: -30~+80 ℃

Working humidity: maximum 95% RH (≤ 40 ℃), high temperature derating

ESD: ± 10kV (air discharge)

Vibration: 5-100Hz, 19.6m/s ², 120 times on each of the three axes

Mechanical impact: 539m/s ², 11ms, 5 times on each of the six sides

Interface definition

CN1 (20Pin): LVDS signal+3.3V power supply

CN2 (8Pin): LED backlight with 4 channels of anode/cathode

CN3/CN4: Touch screen FPC interface (40Pin/60Pin)

Precautions for use

Installation screw torque * * ≤ 0.230N · m * *, length ≤ 2.0mm

Prohibit prolonged fixation of the screen to avoid afterimages

Maintain a distance of * * ≥ 1mm * * between the touch area and the conductive frame

Anti static operation, FPC must not be pulled forcefully

Key questions and answers

How to switch the color bit count and scanning direction of this module?

Answer: Color switching through FRC pin: High level is 8-bit 16.77 million colors, low/floating is 6-bit 260000 colors; Switching scanning through DPS pins: low/floating is normal scanning, high level is reverse scanning.

What are the core parameters and lifespan of backlight drivers?

Answer: The backlight consists of 4 LED channels, with a typical current of 50mA and voltage of 21V per channel. The lifespan of the LED is 70000 hours at 25 ℃ and 60000 hours at 80 ℃, and constant current driving must be used.

What does the quality level Standard of this product mean and in which scenarios cannot it be used?

Answer: Standard level is applicable to equipment without life safety risks (industrial, car entertainment, home appliances, etc.); Not suitable for safety critical scenarios such as vehicle control, medical surgery, aerospace, nuclear control, etc. Such scenarios require prior application for Special/Specific level.
