Allen Bradley MicroLogix 1500 Programmable Controller

Overall positioning of the product

Product Series: MicroLogix 1500 (1764 Controller)+1769 Extended I/O

Type: Small modular PLC, supporting local I/O and Compact I/O expansion

Applicable scenarios: small automation equipment, machine tools, fans and pumps, packaging machines, simple production lines

Processor model:

1764 LSP: Basic Edition

1764-LRP: Enhanced version, dual communication ports

Core hardware composition

1. Host base (3 types)

Model Power Supply Input/Output High Speed I/O

1764-24AWA 85-265V AC 12 × 120V AC 12 × Relay None

1764-24WBA 85-265V AC 12 × 24V DC 12 × Relay 4-channel high-speed input

1764-28BXB 20.4-30V DC 16 × 24V DC 6 Relay+6FET 8 In 2 Out High Speed

2. Expansion capability

Support 1769 Compact I/O expansion module

Maximum expansion: 16 modules (divided into two groups, with a maximum of 8 modules per group)

Must be equipped with end caps: 1769-ECR/ECL

Expansion requires independent power supply: 1769-PA2/PA4, PB2/PB4

3. Optional accessories

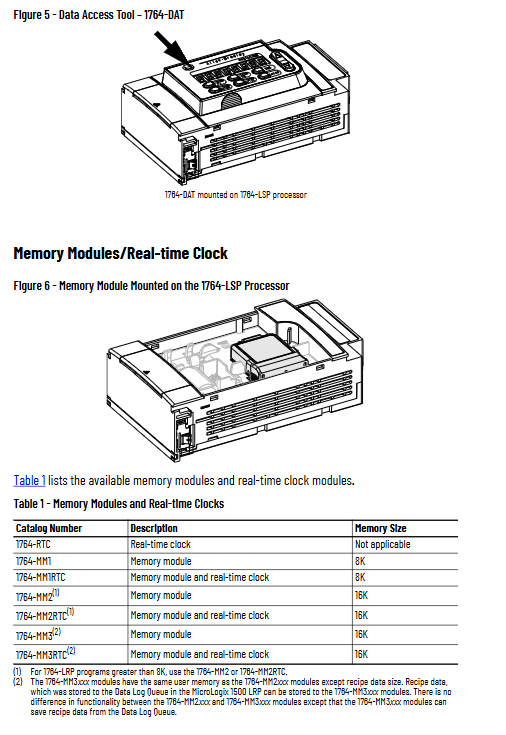

Data Access Panel 1764-DAT: Local Monitoring/Parameter Modification

Real time clock 1764 RTC

Memory module: 8K/16K (with/without RTC)

Lithium Battery: 1747-BA (Program Power Down Save)

Safety and Installation Standards

1. Security level

Suitable for Class I Division 2 explosion-proof environment

Must be installed inside the cabinet and wired in accordance with NEC 501-4 (b)

2. Installation requirements

Recommend horizontal installation, not vertical installation

Reserve a heat dissipation space of ≥ 50mm around the perimeter

Supports 35mm DIN rail or panel installation

Must be reliably grounded to prevent static damage

3. Precautions for power supply

AC model: 85-265V AC wide voltage

DC model: 20.4-30V DC

Equipped with power on surge current protection and power-off hold (10ms-3s)

Wiring specifications (emphasis)

1. Wiring standards

Wire diameter: 0.5-2.5mm ² (14-20AWG)

Torque: 1.13N · m (maximum 1.3N · m)

Input support: leakage type/source type universal

Output: Relay (passive), FET (active)

2. Key protection

Inductive loads must be equipped with surge suppression

DC load: 1N4004 diode

AC load: varistor or RC absorber

Grounding with 2.5mm ² copper wire

3. Special wiring

ZCT leakage protection: grounding prohibited

4-20mA analog: must shield the wire

It is recommended to install a filter on the output side of the frequency converter

Communication function (most complete part)

1. Standard ports

RS-232 (DB9): All models

Channel 1 (LRP exclusive): Second serial port

2. Support protocols

DF1 full duplex: point-to-point (default 19200bps)

DF1 half duplex: master-slave multi station

DH-485: Rockwell Industrial Network (up to 32 nodes)

Modbus RTU Slave: B series and above support

ASCII: Connect barcode scanner, instrument, printer

3. Network Expansion

AIC+Converter: RS232 ↔  RS485（DH‑485）

ENI Ethernet module: Implementing EtherNet/IP

Supports modems and wireless radio stations

Operation and Tools

1. Data Access Panel DAT

View/modify 48 bits, 48 integers

Display fault codes and operational status

Support F1/F2 custom function keys

Can be plugged and unplugged with power

2. Potentiometer Trimpot

2 adjustable potentiometers (0-250)

Directly used as a set value in the program

3. Mode switch

RUN/PROG/REM three gears

Operation, programming, remote control

Clock and storage function

1. Real time clock RTC

Year Month Day Hour Minute Second, Week

Accuracy: ± 70 seconds/month

Built in battery, low battery warning 14 days in advance

2. Memory module

Backup program, no loss in case of power failure

Support program comparison and write protection

Can be plugged and unplugged with power (not for transmission)

System load and heat dissipation calculation

Provide a complete 5V/24V current calculation table

Base, expansion module, DAT, AIC+power consumption are all listed

Must satisfy

Base 5V: ≤ 2250mA

24V：≤400mA

Provide a formula for heat dissipation power for cabinet heat dissipation design

Fault diagnosis and troubleshooting

1. Meaning of LED status lights

POWER: Power Supply

RUN: Run

Fault: (flashing=program error; constantly on=hardware error)

BAT: Low battery

COMM: Communication Activity

2. Common fault handling

Unable to power on: Check wiring, voltage, polarity

Fault flashing: check for S: 6 fault code

Input no response: Check wiring, filtering, common terminal

Output not functioning: check load, power supply, suppressor

Communication failure: check baud rate, verify, address, mask

3. Fault clearing method

Automatic power on clearing

Fault subroutine clearing

Programming software clearing

Firmware upgrade

Using ControlFLASH software

Switch to default communication mode before upgrading (DCOMM light on)

Upgrading will clear user programs and must be backed up first

Upgrade failure will display a specific LED mode

Specifications and Certification

Working temperature: 0~+55 ° C

Vibration: 5g, Impact: 30g

Certification: UL, CE, UKCA, RCM, Class I Div 2

Relay lifespan: inductive load 2 million times, resistive load 20 million times

FET high-speed output: fastest response of 6 μ s

Replace parts

Lithium battery: 1747-BA

Terminal block: 1764-RPL-TB1/TB2

Dust cover, ESD baffle, communication port cover

All have official Rockwell part numbers
