Honeywell UMS Security System Troubleshooting Guide

Basic Information

Product Positioning

UMS universal signal conditioning complete solution, replacing traditional discrete isolation barriers, relays, and fuse terminal blocks, with standardized modular design, compatible with centralized/distributed SIS safety cabinet wiring, and compatible with Honeywell Series-C, universal IO, and safety IO IOM/IOTA modules.

Definition of Core Terms

-USCA: Universal Signal Conditioning Backboard (accommodates 16 single channel adaptation modules)

-IOTA: DCS/SIS side IO terminal base

-IOM: IO Electronic Acquisition Output Module

-SIC: System Interconnection Multi core Cable (37 pin DB, connecting backplane to IOTA)

-Adaptor: Single channel plug-in signal conditioning module (single channel isolation/relay/intrinsic safety barrier)

Overall architecture advantages

1. Modular hot swappable single channel adaptation module, without the need for separate installation of isolation barriers, relays, and fuse terminals;

2. Three level on-site terminals with breakable knife switches and integrated channel fuses, no need to disconnect wires for maintenance;

3. The backplane is uniformly powered by 24VDC, and the active conditioning module does not require additional power supply;

4. The whole machine is installed on DIN rails and vertically wired to adapt to standard control cabinets;

5. Each channel status LED provides a visual representation of faults;

6. Support SIL1/SIL2/SIL3 functional safety level, ATEX/IEC Ex/North American Class I Div2 explosion-proof certification;

7. Unified SIC multi-core cable routing, significantly reducing scattered wires inside the cabinet and lowering construction and maintenance costs.

Overall classification of system hardware

The entire UMS is divided into three categories of hardware: * * 16 channel backplane base, single channel signal adaptation module, and SIC interconnect cable**

（1） Three 16 channel DIN rail backplates (base)

All sizes are unified: 199 (H) × 140 (W) × 135 (D) mm, supporting 16 single channel module slots, with three-level wiring terminals, knife switch disconnection, channel fuse, power indicator light, 37 pin SIC DB interface, working temperature range -40 ℃~+70 ℃

1. CC-USCA01 standard universal backboard

Specialized for conventional analog/digital signals, with a maximum total power supply of 1.3A, SIL3 machine level, suitable for ordinary non explosion proof field modules.

2. CC-UGIA01 intrinsically safe explosion-proof isolation backplate

Specially designed to provide UGAI/UGAO/UGDA intrinsically safe isolation barrier modules for hazardous areas, carrying explosion-proof signal circuits.

3. FC-USCA01 high current and high load backplane

Maximum 16A total output current, compatible with FC-UDOF01 high-power relay output module, driving high load solenoid valves and actuators.

（2） Full range of single channel plug-in adapter modules (14 models in total, divided into two categories: ordinary type and intrinsic safety isolation type)

All modules have a thickness of only 10mm and are installed without screws or buckles. They come with mechanical anti misoperation and anti misoperation interfaces, and operate at a uniform temperature of -40~+70 ℃. They are IP20 protected and UL V0 flame-retardant, and are divided into six categories: analog input, analog output, digital input, digital output, NAMUR proximity switch, and intrinsic safety isolation barrier.

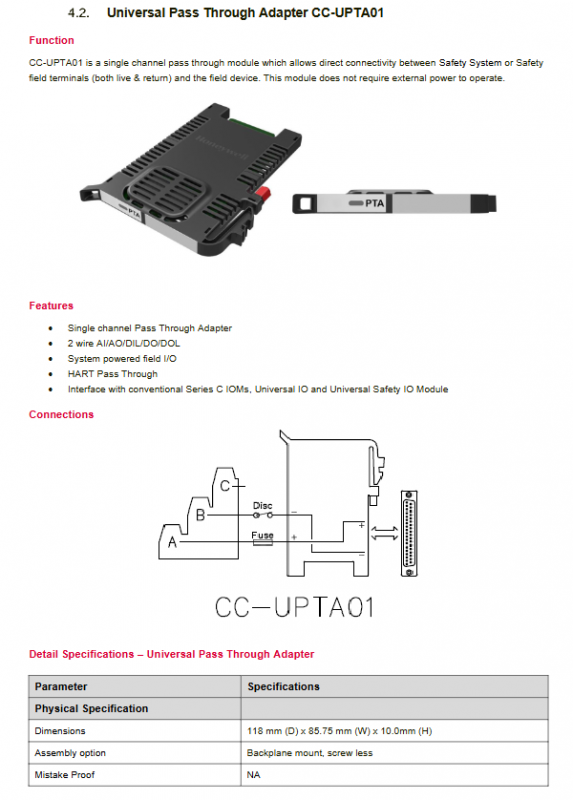

1. Direct adaptation CC-UPTA01

– SIL3， Passive without power supply;

-2-wire AI/AO/DI/DO direct connection, compatible with HART signals;

-Only for disconnection and safety transfer, without isolation or signal conditioning.

2. Digital input module

FC-UDI501 (SIL3): Built in 5K terminal resistor, compatible with 24V digital input without EOL diagnosis, passive without power supply;

2. FC-UIR501 (SIL1): Relay isolation DI+5K resistor, on-site circuit power supply, with status LED;

3. FC-UDR01 (SIL3): Fully isolated relay digital input, 1500V isolation, active power supply, green status indicator light;

3. Digital output relay module

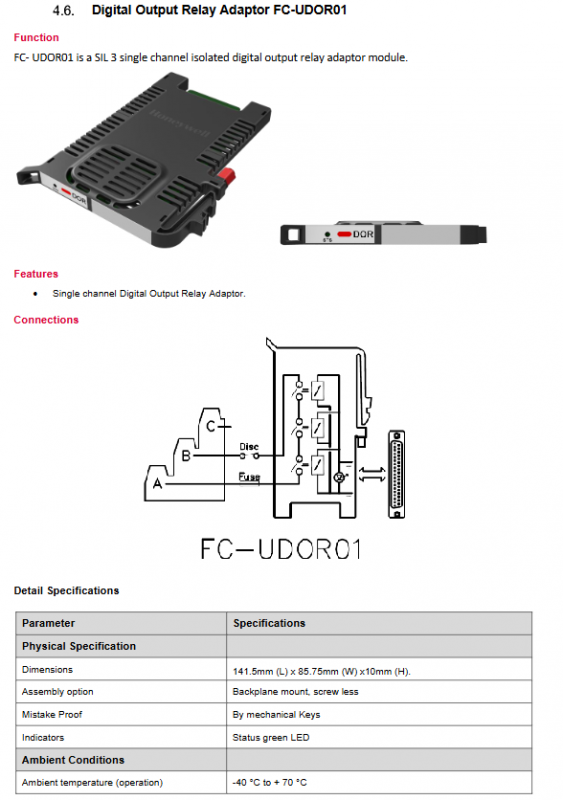

FC-UDOR01 (SIL3) standard relay DO, single channel maximum 1A resistive load, isolated 1500V, status LED;

2. FC-UDOF01 (SIL2) high-power F&G output: compatible with FC-USCA01 high current backplane, single channel maximum 2A, with cable break/short circuit diagnosis, dual power supply+status LED;

4. Analog input (4-20mA HART)

1. FC-UAIA01 (SIL3) three wire source transmitter power supply, supports HART, with loop PTC protection, status LED;

2. FC-UAIS01 (SIL2) two-wire input, transparent wire breakage detection, compatible with HART.

5. NAMUR proximity switch dedicated DI

FC-UDN01 (SIL2) standard NAMUR sensor input, powered by 8V circuit;

2. FC-UDNS01 (SIL2) safety type NAMUR, 715 Ω standard NAMUR circuit resistance.

6. Intrinsic safety explosion-proof isolation barrier module (equipped with CC-UGIA01 backplane, SIL2, Zone2/Class1 Div2 explosion-proof)

All three electrical isolation circuits (system/power/hazardous side), polarity reverse protection, transparent reporting of wire breakage faults, supporting HART:

FC-UGAI01 intrinsic safety analog input 4-20mA: 20mA circuit, maximum 16V driving voltage;

FC-UGAO01 intrinsic safety analog output 4-20mA, maximum 650 Ω load;

3. FC-UGDA01 Universal Intrinsic Safety Digital IO: automatically adapts to NAMUR/dry contact DI, solenoid valve DO, high and low current dial switching, dual color LED status;

（3） SIC system interconnection cable FC-SCI5xxx

37 pin DB double ended shielded cable, used to connect UMS backplane (CC-USCA/CC-UGIA) and DCS/SIS side IOTA base; The number at the end of the model represents the length (in decimeters), with specifications ranging from 0.5m to 30m, to meet different cabinet wiring distances.

General Hardware Electrical and Environmental Specification

1. Power supply standard: The entire system is unified at 24VDC (18~30V wide input)

2. Environmental parameters

-Working temperature: -40 ℃~+70 ℃; Storage -40 ℃~+85 ℃

-Humidity of 5%~95% without condensation;

-Vibration 1G, impact 15G three-axis industrial grade;

3. Safety and compliance

-Functional safety: SIL1/SIL2/SIL3 (IEC61508) classification;

-Explosion proof: ATEX Ex ic/ec IIC T4, IEC Ex, North American Class I Div2 Zone2;

-EMC: 2014/30/EU Industrial Immunity; RoHS environmental protection; UL94 V0 flame retardant; IP20 protection.

4. Isolation specifications: Relay/isolation barrier modules are generally 1500VAC channel isolated and resistant to on-site interference.

5. Wiring specifications: The backplane terminals are compatible with 12-24AWG cables, and the power terminals support 10-26AWG thick wires.

Quick overview of the core function differentiation of each module

|Module model | Purpose | SIL level | Key characteristics|

|CC-UPTA01 | Signal Direct Transfer | SIL3 | No regulation, only fuse/disconnect, compatible with HART|

|FC-UDI501 | 24V digital input 5K resistor | SIL3 | Passive, no isolation|

|FC-UIR501 | Relay Isolation DI | SIL1 | On site Power Supply with LED|

|FC-UDR01 | Highly Reliable Isolation DI | SIL3 | 1500V Insulation|

|FC-UDOR01 | Standard Relay DO | SIL3 | 1A Load|

|FC-UDOF01 | High power relay DO | SIL2 | Maximum 2A, wire breakage diagnosis|

|FC-UAIA01 | Three wire 4-20mA AI | SIL3 | Transmitter power supply HART |

|FC-UAIS01 | Two line irrigation AI | SIL2 | Wire breakage detection|

|FC-UDIN01 | Standard NAMUR DI | SIL2 | 8V Circuit|

|FC-UDNS01 | Safety NAMUR DI | SIL2 | Standard 715 Ω Circuit|

|FC-UGAI01 | Intrinsic safety explosion-proof analog input | SIL2 | Hazardous area isolation barrier HART |

|FC-UGAO01 | Intrinsic safety explosion-proof analog output | SIL2 | 4-20mA isolated output|

|FC-UGDA01 | Intrinsic Safety Universal Digital IO | SIL2 | NAMUR/Electromagnetic Valve Adaptive|
