ADLINK MXC-6000 series embedded industrial control computer

Product positioning and core advantages

1. Product positioning

High end fanless box expansion industrial computer, inheriting Linghua Matrix all metal passive heat dissipation and no internal cable structure; Compared to MXC-2300 (Atom low-power version), the CPU performance has been significantly improved, making it suitable for image vision, high-speed acquisition, and complex algorithm computation scenarios; Support pluggable cooling fan modules to solve the heat dissipation problem of high-power PCIe acquisition/vision cards.

2. Core Highlights

1. Intel Core i7-620LE 2.0GHz high-performance mobile processor+QM57 chip, with computing power that meets visual measurement and complex automation calculations;

2. Two hardware versions of expansion slots are available, compatible with market standard PCI/PCIe industrial boards;

3. Native 16 way isolated DI+16 way isolated DO industrial digital quantity, meeting device IO control requirements;

4. Innovative * * hot swappable fan module * *, quickly adds heat dissipation when installing high-power expansion cards, and the whole machine still maintains a modular and non disassembly complex structure;

5. Built in private USB port, capable of encrypting dongles/authorizing hardware access, enhancing device information security;

6. Supports SATA RAID0/1 and external eSATA hot swappable storage expansion;

7. Wide voltage DC power supply, reinforced wide temperature industrial design, suitable for high and low temperature, and harsh vibration environments.

3. Application scenarios

Machine/factory automation, image vision inspection and measurement, industrial testing instruments, security monitoring.

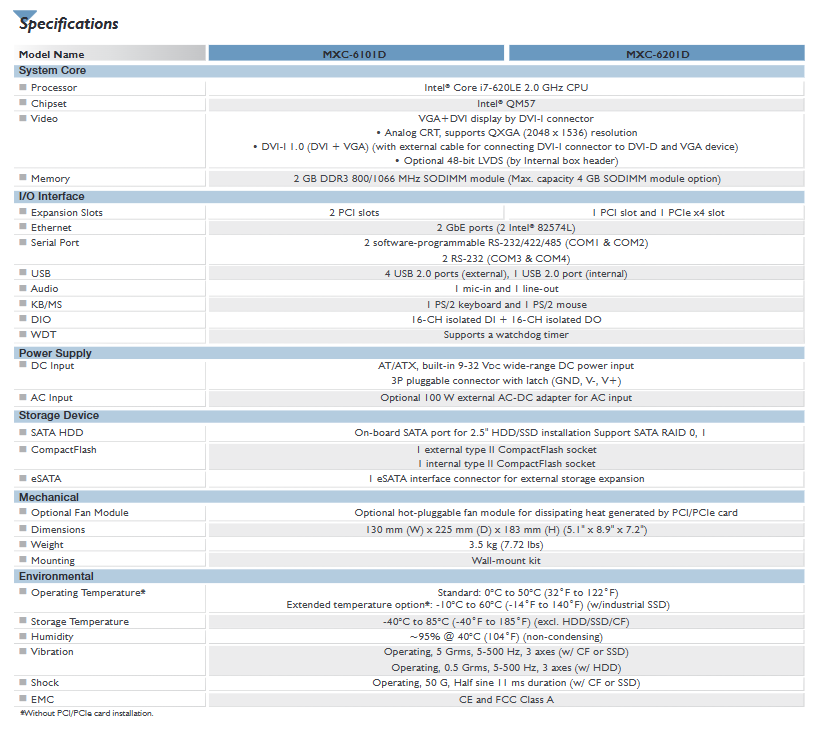

Core hardware specification parameters

2.1 Computing and Display Platform

1. Processor: Intel Core i7-620LE 2.0GHz, paired with Intel QM57 chipset, high-performance mobile architecture;

2. Memory: Comes standard with 2GB DDR3 800/1066MHz SODIMM and can be upgraded up to 4GB;

3. Display output: Single DVI-I-Composite interface, simultaneously outputting two independent VGA+DVI screens;

-VGA simulation up to QXGA (2048 × 1536);

-Optional built-in LVDS 48 bit interface, directly connected to industrial LCD screen.

2.2 Differentiation between two major models of expansion slots

|Model | PCI Slot | PCIe x4 Slot|

|MXC-6101D | 2 standard PCIs | None|

|MXC-6201D | 1 standard PCI | 1 PCIe x4|

###2.3 Complete I/O interface

External interface on the front panel

-Network: 2-channel Intel 82574L Gigabit Ethernet;

-Serial port: 4-channel DB9 COM (COM1/2 software switchable RS232/422/485 automatic flow control, COM3/4 fixed RS232);

-USB: 4-channel external USB 2.0;

-Digital IO: 16CH isolated DI+16CH isolated DO (1.5kV isolated);

-Storage: External Type II CF card slot, eSATA external hard drive port;

-Video: DVI-I-Composite video output;

-Audio: microphone input, line output;

-Keyboard and mouse: PS/2 keyboard and mouse composite interface;

-Power supply: 9-32V wide voltage 3-pin locking DC terminal.

Built in dedicated interface

1. 1-channel * * internal hidden USB 2.0 * *: used for encryption dongles and authorization keys, not exposed to enhance device security;

2. Built in SATA hard drive slot and Type II CF card slot;

3. Fan module dedicated expansion connector, supporting hot swappable fans without disassembling the entire machine.

2.4 Storage Capacity

1. Built in one 2.5-inch SATA hard drive slot, supporting two built-in disks to form RA0/1;

2. External eSATA interface, supporting hot swappable external storage expansion;

3. Dual CF card slots inside and outside, suitable for industrial high-capacity solid-state storage;

4. Supports multiple storage media such as mechanical hard drives and industrial SSDs.

2.5 Power Supply and Mechanical Structure

1. Power supply: 9-32VDC wide DC input, AT/ATX power supply architecture; Optional 100W industrial grade/90W commercial AC-DC adapter;

2. Heat dissipation foundation: passive heat dissipation without fan for the whole machine aluminum extrusion; Optional * * hot swappable fan module * * for quick assembly and heat dissipation when installing high-power PCI/PCIe cards;

3. Size and weight: 130 (W) × 225 (D) × 183 (H) mm, the whole machine weighs 3.5kg;

4. Installation: Standard wall mounting bracket.

2.6 Industrial environment tolerance indicators

1. Working temperature

-Standard fanless: 0 ℃~50 ℃;

-Wide temperature options (only compatible with industrial SSD, no high-power expansion card): -10 ℃~60 ℃;

*Note: Inserting high-power PCI/PCIe cards will lower the upper limit of overall heat dissipation;

2. Storage temperature: -40 ℃~85 ℃ (excluding hard drives and CF storage media);

3. Humidity: up to 95% without condensation at 40 ℃ environment;

4. Vibration anti-interference: SSD/CF configuration with 5Grms 5-500Hz three-axis; Mechanical hard drive only 0.5Grms;

5. Impact tolerance: 50G half sine pulse, lasting for 11ms;

6. Safety regulations EMC: CE, FCC Class A industrial certification; Built in hardware watchdog WDT.

Software operating system support

Compatible with multiple types of industrial systems, supporting real-time industrial kernels:

1. Windows：XP / XP Embedded / Win7；

2. Linux distribution (customizable and adaptable to manufacturers);

3. INtime real-time operating system (requires customized BIOS support).

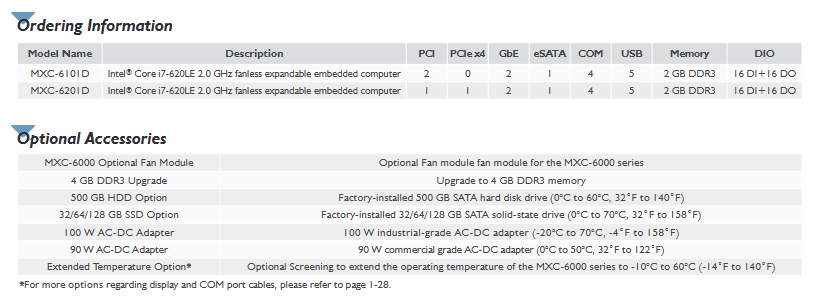

Optional accessory list

1. Hot swappable cooling fan module (dedicated for high-power expansion cards);

2. Memory upgrade kit: 4GB DDR3 memory module;

3. Pre installed storage components: 500GB mechanical hard drive, 32/64/128GB industrial SSD;

4. Power supply: 100W industrial wide temperature adapter, 90W commercial adapter;

5. Whole machine wide temperature screening service, achieving a working range of -10~60 ℃;

6. Equipped with serial port and video dedicated cables.
