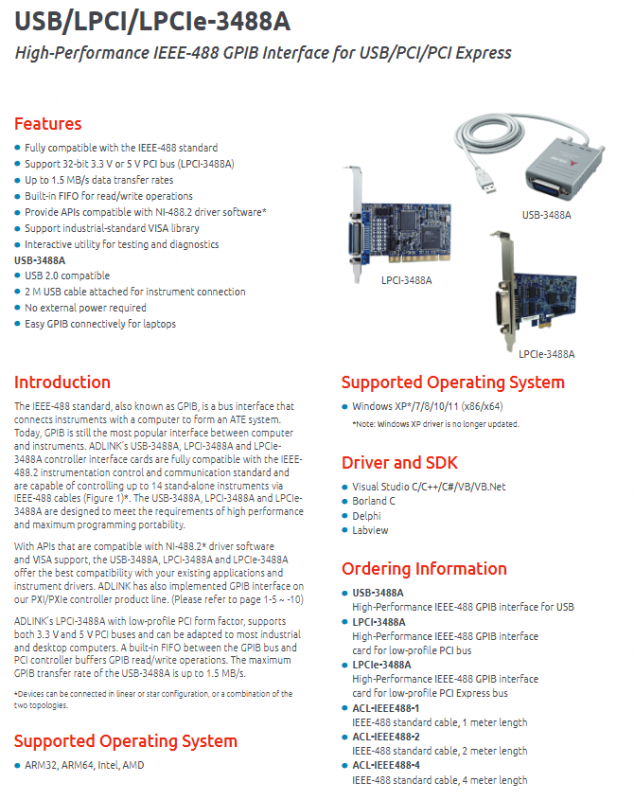

ADLINK USB/LPCI/LPCIe-3488A GPIB interface card

Overall positioning and introduction of the product

GPIB (IEEE-488) is the mainstream parallel communication bus for industrial testing instruments, and the 3488A series is a fully compatible GPIB controller launched by Linghua. It is divided into three hardware models, suitable for laptops, desktop industrial computers, and short half height chassis:

1. USB-3488A: USB 2.0 external, portable for laptop scenarios, comes with a 2m matching cable, no external power supply required;

2. LPCI-3488A: Low profile half height PCI bus card, compatible with 3.3V/5V PCI slots;

3. LPCIe-3488A: Low profile half height PCIe bus card, compatible with modern PCIe industrial control hosts.

The entire series follows the IEEE488.2 standard, with a maximum of 14 GPIB instruments controlled in series by a single controller, and supports wired, star, or hybrid topologies; Built in read/write FIFO cache improves transmission stability, providing API compatibility with NI-488.2 and industrial VISA standard library, perfectly compatible with existing testing programs and instrument drivers. At the same time, Linghua’s PXI/PXIe controller product line is also equipped with GPIB solutions of the same specifications.

General core functional characteristics

1. Standard compatibility: fully compliant with IEEE-488 and IEEE488.2 instrument communication specifications;

2. Transmission performance

-USB-3488A maximum transmission rate: 1.5 MB/s;

-LPCI/LPCIe-3488A maximum transmission rate: 1.2 MB/s;

-8-bit parallel data bus, three wire handshake protocol, byte by byte response, reliable transmission;

3. Hardware cache: Built in FIFO buffer to alleviate the speed difference between the host and the instrument;

4. Software ecosystem

-The driver API is compatible with NI-488.2 and supports the standard VISA library;

-Supporting interactive diagnostic tools for equipment debugging and troubleshooting;

5. Compliance certification: CE, FCC Class A electromagnetic compatibility certification.

Differentiated hardware parameters for three models

1. Bus and power supply

|Model | Bus Specification | Power Supply Parameters|

|LPCI-3488A | Low profile PCI, 3.3V/5V dual compatibility | 3.3V typical 250mA, maximum 300mA; 12V typical 80mA, maximum 90mA|

|LPCIe-3488A | Low version PCIe | 12V typical 100mA, maximum 150mA|

|USB-3488A | USB2.0, Type-A interface | USB bus power supply, no external power supply required; Typical 190mA, maximum 500mA|

2. Physical dimensions (excluding connectors)

– LPCI-3488A：120 mm × 64 mm

– LPCIe-3488A：119.77 mm × 68.9 mm

-USB-3488A: 81.7mm (length) x 66.1mm (width) x 27.8mm (height)

3. USB exclusive indicator light

-Ready green light: The device is ready for normal power on;

-Active amber flashing light: The device is sending and receiving GPIB data.

4. Wiring specifications

-The recommended maximum length for single section cables between instruments is 2m; the total length limit for the entire system cable is 20m;

-The interface is unified as a standard 24 pin IEEE-488 GPIB interface.

System and software development support

1. Operating system compatibility

Windows XP/7/8/10/11 (32/64 bit); Note: XP drivers will no longer be updated; Simultaneously supporting ARM32/ARM64, Intel/AMD full platform architecture.

2. Development environment adaptation

Visual Studio（C/C++/C#/VB/[VB.Net]( https://link.wtturl.cn/?target=https%3A%2F%2FVB.Net&scene=im&aid=497858&lang=zh ））The Borland C、Delphi、LabVIEW， Provide complete SDK and sample source code.

Environmental working parameters

-Working temperature: 0 ℃~55 ℃

-Storage temperature: -20 ℃~+80 ℃

-Relative humidity: 5%~95%, no condensation

Complete order list

Hardware controller

1. USB-3488A: USB external GPIB controller

2. LPCI-3488A: Half height PCI GPIB acquisition card

3. LPCIe-3488A: Half height PCIe GPIB acquisition card

GPIB matching cable

-ACL-IEEE488-1:1 meter standard GPIB cable

-ACL-IEEE488-2:2-meter standard GPIB cable

-ACL-IEEE488-4:4 standard GPIB cable
