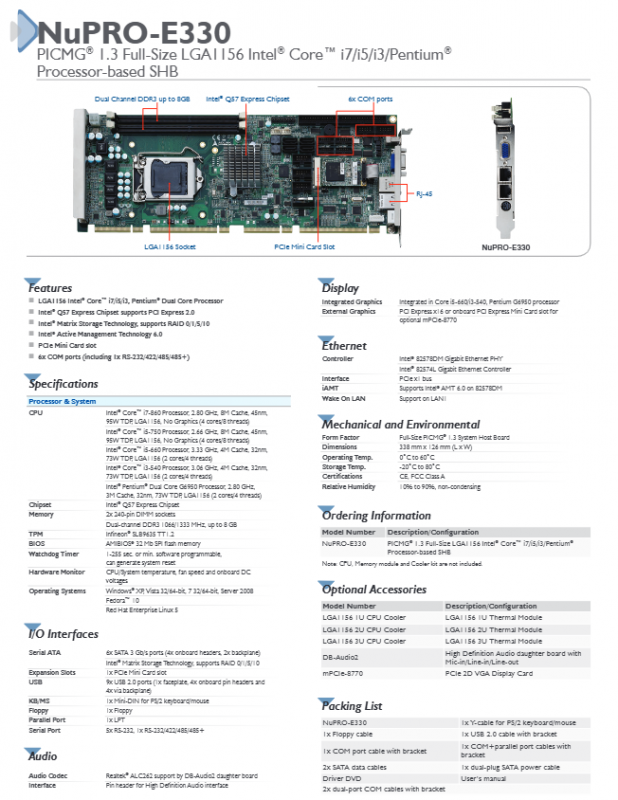

ADLINK NuPRO-E330 PICMG 1.3 full-length industrial motherboard (SHB)

Product basic positioning

NuPRO-E330 is a PICMG 1.3 standard full-length industrial system motherboard (SHB), equipped with LGA1156 slots, Intel Q57 chipset, and compatible with Core i7/i5/i3 and Pentium dual core desktop industrial CPUs. It focuses on industrial control chassis solutions, integrating rich industrial serial ports, dual gigabit networks, multi SATA storage, and expanding mini PCIe. It supports remote AMT management, RAID disk arrays, and is suitable for scenarios such as equipment automation, testing instruments, and industrial monitoring.

Core hardware platform (processor/chip/memory/firmware)

1. Support CPU List (LGA1156)

Model Process/Power Consumption Core Thread/Cache Core Display Description

I7-860 45nm/95W 4-core 8-thread, 8MB cache, no built-in graphics card

I5-750 45nm/95W 4-core 8-thread, 8MB cache, no built-in graphics card

I5-660 32nm/73W 2-core 4-thread, 4MB cache integrated HD core display

I3-540 32nm/73W 2-core 4-thread, 4MB cache integrated HD core display

Pentium G6950 32nm/73W 2-core, 3MB cache integrated HD core display

2. Chipset and Platform Characteristics

South Bridge: Intel Q57 Express, supporting PCIe 2.0 bus;

Storage technology: Intel Matrix Storage, supporting RAID 0/1/5/10;

Remote management: Intel AMT 6.0 active management technology (supported by 82578PHY on LAN1 network port);

TPM security: Infineon SLB9635 hardware security chip;

BIOS: 32MB SPI AMI firmware;

Watchdog timer: The software can be programmed to time out from 1 second to 255 minutes, triggering a complete machine reset;

Hardware monitoring: Real time collection of CPU temperature, board temperature, fan speed, and various DC voltages.

3. Memory specifications

Dual channel DDR3 architecture, 2 x 240pin DIMM slots, supports 1066/1333MHz, with a maximum total capacity of 8GB.

4. Support for operating systems

Windows XP/Vista/7 32/64bit、Server 2008； Fedora 10、Red Hat Enterprise Linux 5。

Full board I/O and expansion interfaces

1 Storage Interface (SATA)

There are a total of 6 SATA 3Gb/s high-speed interfaces: 4 onboard pins and 2 backplane outlets, all supporting Intel RAID array functionality.

2 serial port COM (industrial core configuration)

Total of 6 serial ports:

5-way standard RS-232;

1 multi-functional serial port, software options include RS232/422/485/485+differential industrial bus.

3 USB 2.0 interfaces

A total of 9 channels: 1 standard port on the rear panel, 4 sets of onboard pins, and 4 backplane expansion channels, all of which are high-speed USB2.0.

4 Traditional Peripheral Interface

PS/2: Mini DIN composite keyboard and mouse interface (with Y-shaped adapter cable);

1-channel floppy drive pin;

1 parallel LPT, compatible with old-fashioned printing/acquisition peripherals.

5 expansion slots

1 PCIe Mini Card slot, expandable network card, wireless, and mPCIe graphics card module (mPCIe -8770).

6 Display System

Built in display: Only 32nm Clarkdale architecture i5/i3/G6950 CPU comes with integrated VGA output;

Independent display scheme:

PICMG backplane PCIe x16 expansion slot external dedicated display;

The Mini PCIe slot is equipped with an mPCIe e-8770 VGA display daughter card.

7 Dual Gigabit Ethernet

LAN1：Intel 82578DM PHY，PCIe x1， Support AMT6.0 and network wake-up WOL;

LAN2: Intel 82574L controller, PCIe x1；

Dual RJ45 rear network ports, industrial dual network isolation/redundant networking.

8 Audio

Onboard HD audio pin, optional DB-Audio2 daughter card for microphone input and line input/output.

Mechanical, Environmental, and Certification

Specification and dimensions: Standard PICMG1.3, total length SHB, 338mm × 126mm;

Working temperature range: 0 ℃~+60 ℃; Storage temperature range: -20 ℃~+80 ℃;

Humidity: 10%~90% without condensation;

Electromagnetic certification: CE, FCC Class A industrial grade.

Product model, optional accessories, packing list

1 Basic model

NuPRO-E330 (bare board, excluding CPU, memory, CPU heatsink)

Optional accessories

LGA1156 series radiator: 1U/2U/3U three heights, suitable for different PICMG chassis air ducts;

DBAudio2: High definition audio expansion board;

MPCIe 877: Mini PCIe VGA graphics card.

Factory standard packing items

Y-shaped PS/2 adapter cable, floppy drive ribbon cable, USB dock cable, multiple sets of COM serial port dock cables, parallel port cable, 2 SATA data cables, dual SATA power supply cables, DVD drive disc, paper user manual.
