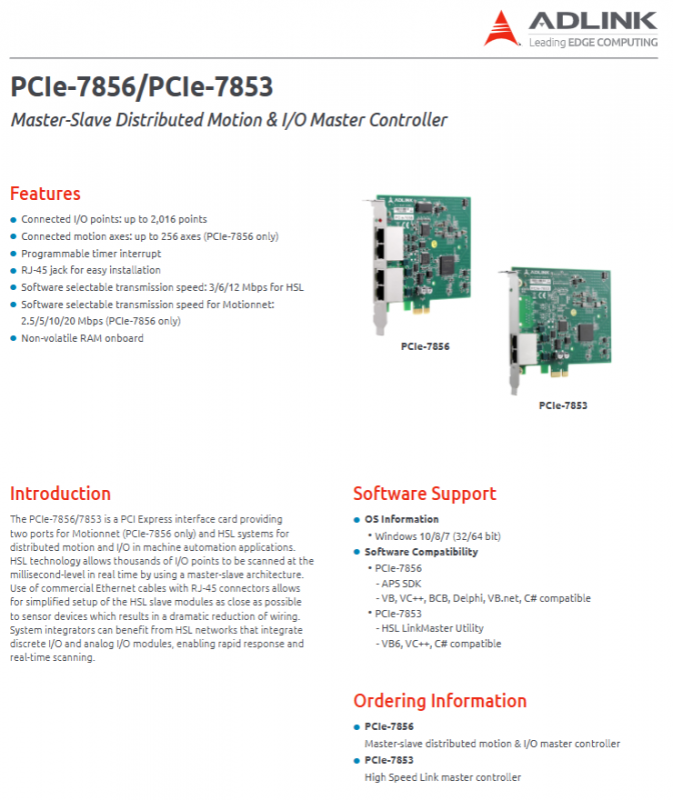

ADLINK PCIe-7856/PCIe-7853 Distributed Motion and IO Main Controller PCIe Acquisition Card

Product basic positioning and overview

1. Product Definition

PCIe-7856 and PCIe-7853 are PCIe x1 plug and play main controller boards designed for mechanical equipment automation scenarios. They are equipped with dual industrial bus interfaces to achieve remote distributed IO and motion axis control

PCIe-7856: Supports both Motionnet motion bus and HSL high-speed IO bus, with both motion control and large-scale IO acquisition capabilities;

PCIe-7853: Only supports HSL high-speed IO bus, pure remote distributed IO master controller, without motion control function.

2. Advantages of core technology architecture (HSL bus)

Adopting a master-slave architecture, it can scan thousands of IO points in milliseconds in real time; using standard RJ45 Ethernet cable wiring, the slave module can be installed nearby sensors and actuators, greatly reducing the length of on-site cables; Simultaneously compatible with both digital and analog hybrid slave modules, with excellent real-time response speed.

Core Features

Upper limit of expansion capability

Maximum number of connected IO points: Both cards can support up to 2016 remote IO points;

Motion axis control: only supported by PCIe-7856, can control up to 256 motion axes; PCIe-7853 has no motion control channel.

Bus speed software adjustable

HSL bus: 3/6/12 Mbps optional, factory default 6 Mbps;

Motionnet bus (7856 only): 2.5/5/10/20 Mbps optional, factory default 20 Mbps.

Hardware supporting functions

Onboard non-volatile memory (NV RAM), power off to save configuration;

Programmable timer interrupt, supports state read back interrupt;

RJ45 standardized interface, convenient on-site installation and wiring.

Comparison of hardware specifications between two models

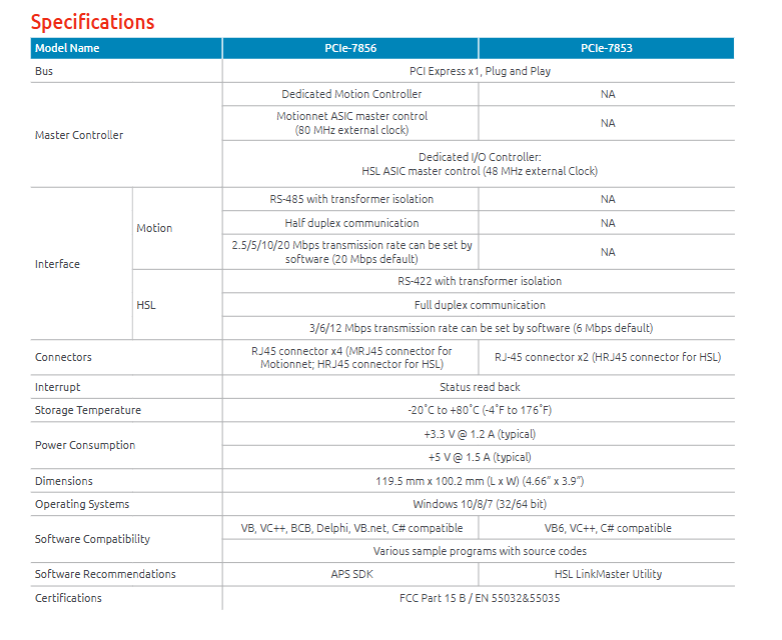

Parameter item PCIe-7856 PCIe-7853

Bus interface PCIe x1 PnP PCIe x1 PnP

Motionnet motion ASIC for motion controller (80MHz external clock) None (NA)

IO controller dedicated HSL ASIC (48MHz external clock) dedicated HSL ASIC (48MHz external clock)

Motionnet physical layer isolation transformer RS-485, half duplex not supported

HSL physical layer isolation transformer RS-422, full duplex isolation transformer RS-422, full duplex

4 RJ45 interfaces (MRJ45 sports port+HRJ45 HSL port) 2 (HRJ45 HSL dedicated port)

Power consumption (typical value)+ 3.3V@1.2A ；+ 5V@1.5A Same left

Board size 119.5 mm × 100.2 mm, same as left

Storage temperature -20 ℃~+80 ℃ Same as left

Interrupt mechanism status read back interrupt, programmable timed interrupt are the same as left

Certification standards FCC Part 15 B and EN 55032 are the same as the left

Software System and Development Support

1. Operating system compatibility

Unified support for Windows 7/8/10 32-bit and 64 bit systems.

2. Supporting software and development environment

PCIe-7856

Specialized development package: APS SDK;

Compatible development languages: VB, VC++, BCB, Delphi, VB.net, C #;

Provide complete source code sample programs.

PCIe-7853

Supporting tool: HSL LinkMaster Utility (HSL Bus Debugging and Configuration Tool);

Compatible development languages: VB6, VC++, C #;

Provide complete source code samples.

Order Model Description

PCIe-7856: Master slave distributed motion+IO integrated main controller;

PCIe-7853: Pure HSL high-speed link IO main controller (without motion control).
