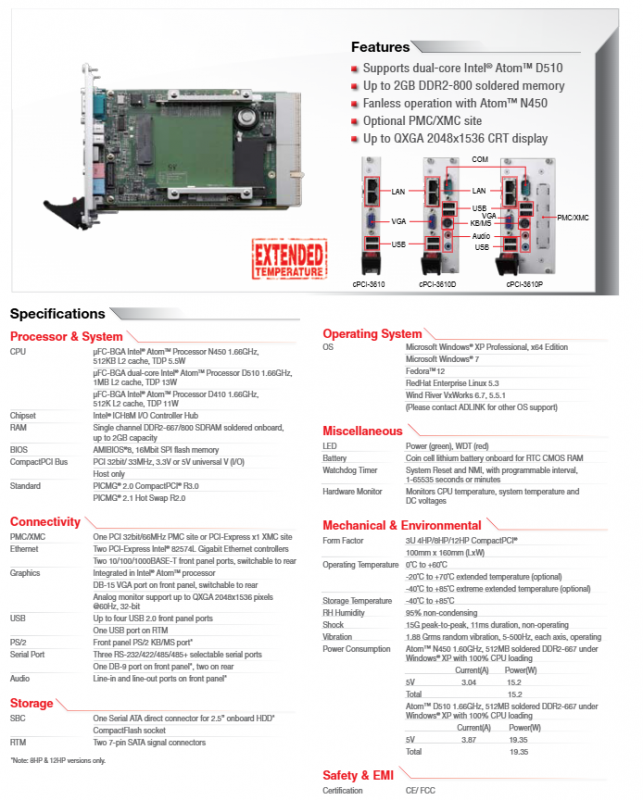

ADLINK cPCI-3610 Series 3U CompactPCI Single Board Computer

Product basic positioning

CPCI-3610 is an entry-level low-power 3U CompactPCI controller blade board launched by Linghua. It uses Intel Atom low-power processors and is available in three width models (cPCI-3610, cPCI-3610D, cPCI-3610P): 4HP/8HP and 12HP. It is compatible with industrial CompactPCI chassis, supports hot swapping, and is designed for fanless, high shock resistant, and wide temperature industrial scenarios. It comes with a dedicated rear adapter module cPCI-R3610/cPCI-R3610T.

Core hardware configuration

2.1 Processor and Chipset

Three Intel Atom 45nm processors are available for selection, all of which integrate graphics cards and memory controllers:

N450 (single core): 1.66GHz, 512KB L2 cache, TDP 5.5W， Support fanless operation

D410 (single core): 1.66GHz, 512KB L2 cache, TDP 11W

D510 (dual core): 1.66GHz, 1MB L2 cache, TDP 13W， Stronger multitasking performance

Supporting chipset: Intel ICH8M; The BIOS is 16Mbit SPI flash AMIBIOS8.

2.2 Memory Design

Onboard soldered single channel DDR2-667/800 SDRAM, with a maximum capacity of 2GB; soldered memory has strong seismic performance and is suitable for high vibration conditions such as in vehicles and rail transit.

2.3 CompactPCI Bus Specification

Bus standards: PICMG 2.0 R3.0, PICMG 2.1 R2.0 (supports hot swapping)

Bus specification: 32bit/33MHz PCI, compatible with 3.3V/5V IO voltage, only used as a host board (Host)

Expansion slot: cPCI-3610P equipped with 1 expansion slot, optional 32bit/66MHz PMC or PCIe x1 XMC daughter card

Full interface resources (divided into front panel and rear RTM module)

3.1 Distinguish three models of front panel I/O

Interface type cPCI-3610 (4HP single slot) cPCI-3610D (8HP dual slot) cPCI-3610P (12HP triple slot)

Gigabit Ethernet ports 2 x Intel 82574L PCIe Gigabit 2 x 2

USB 2.0 2-channel 4-channel 4-channel

VGA display DB15, maximum QXGA (2048 × 2048) 1536@60Hz ）Yes, there is

Serial COM without 1 channel DB9 (RS232/422/485 optional) 1 channel

PS/2 keyboard mouse without 1 group, 1 group

Audio (Line in/Out) None None None

Local storage CF card slot CF+2.5-inch SATA hard drive holder CF+2.5-inch SATA hard drive holder

PMC/XMC expansion bit None None

3.2 Rear adapter module cPCI-R3610/cPCI-R3610T

Both RTMs are compatible with 8HP chassis, with only different depths (50mm/80mm), and have a unified output at the rear:

2 Gigabit Ethernet, 2 RS232/422/485 serial ports, 1 USB 2.0

2-channel 7-pin SATA storage interface, VGA video output

Network port/VGA/serial port support software switching between front and rear panel outputs

3.3 Storage Solution

Onboard: CompactFlash slot; 8/12HP model comes with a 2.5-inch SATA hard drive direct connection socket

RTM rear: dual SATA interfaces, capable of connecting a second hard drive externally

Core functional characteristics

Display output

CPU integrated core display, supporting DirectX9 and Intel clear video technology; DB15 VGA analog interface, with a maximum resolution of 2048 × 1536, and the screen can be switched between the front and rear panels.

Watchdog WDT

Programmable reset timer, timing range 1 second to 65535 minutes, timeout can trigger system reset or NMI interrupt; The onboard button lithium battery stores RTC clock and CMOS parameters.

Hardware monitoring

Real time collection of CPU temperature, overall machine temperature, and various DC voltages, and any abnormalities can be handled in conjunction with a watchdog.

Indicator light

Green power LED and red watchdog alarm LED on the front panel.

Operating system support

Compatible with mainstream industrial desktops and real-time systems:

Windows: XP Professional Edition, Win7 (32/64 bit)

Linux：Fedora 12、RedHat Enterprise Linux 5.3

Real time OS: Wind River VxWorks 5.5.1/6.7

Other systems can contact Linghua for driver support.

Mechanical and Environmental Specifications

6.1 Dimensional specifications

Standard 3U CompactPCI, board size 100mm × 160mm; width divided into:

4HP (single slot) cPCI-3610

8HP (dual slot) cPCI-3610D

12HP (three slot) cPCI-3610P

6.2 Temperature and humidity

Standard working temperature: 0 ℃~+60 ℃

Wide temperature options: -20 ℃~+70 ℃; Ultra wide temperature range -40 ℃~+85 ℃

Storage: -40 ℃~+85 ℃

Humidity: up to 95% RH, no condensation

6.3 Resistance to vibration and impact

Non work impact: 15G, 11ms peak to peak

Random vibration at work: 1.88Grms, 5-500Hz full axis

6.4 Power consumption (100% CPU at full load)

N450 single core: about 15W, can be fanless

D510 dual core: approximately 19W

6.5 Certification

CE and FCC electromagnetic compatibility certification; Self cooling design, no need for forced cooling fan (N450 version)

Model Naming and Ordering Rules

Standard Model Format: cPCI – Model/CPU/Memory

Example:

CPCI-3610D/N45/M1G: 8HP, Atom N450, 1GB onboard DDR2 memory

cPCI-3610P/D51/M1G：12HP， Dual core D510, 1GB of RAM

CPCI-3610/N45/M1G: 4HP Narrow Edition, N450 Single Core

Supporting RTM rear module

CPCI-R3610:50mm Depth 8HP Rear IO Board

CPCI-R3610T: 80mm depth 8HP rear IO board

CPU、 The memory capacity can be customized and matched with Linghua agents.
