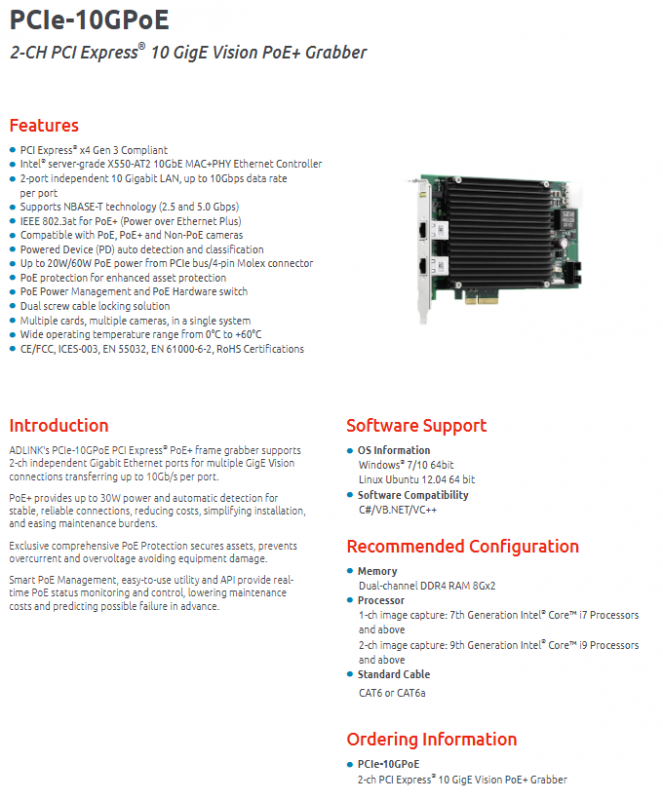

ADLINK PCIe -10GPoE Dual Channel PCIe Gen3 PoE+10GigE Vision Image Acquisition Card

Product Introduction

This acquisition card provides 2 independent 10 Gigabit Ethernet ports, with a maximum bandwidth of 10Gbps per port; Supports IEEE802.3at PoE+Power over Ethernet, which can directly power PoE/PoE+industrial cameras without the need for an additional power adapter. Built in overcurrent and overvoltage protection; Supporting tools and APIs for power status monitoring and switch control, simplifying machine vision system wiring, reducing operation and maintenance costs, and supporting multi card expansion to connect a large number of cameras.

Main hardware features

Bus specification: PCI Express x4 Gen3, occupying 1 PCIe slot.

Ethernet controller: using server grade Intel X550-AT2 MAC+PHY 10 Gigabit Ethernet chip.

Network interface capability

Two independent RJ45 network ports with double screw locking structure to prevent cable loosening on site;

Speed: 10G, 5G, 2.5G (NBASE-T), 1G, 100M; Not supporting 10M speed.

PoE+power supply (IEEE 802.3at)

Automatic detection and classification of power receiving devices PD; compatible with PoE, PoE+, and non PoE cameras;

Power Supply: Powered solely by PCIe slots, the maximum output is 20W; when powered by an external 4-pin Molex, the total PoE power can reach up to 60W;

Equipped with PoE hardware switch, programmable power management, overcurrent/overvoltage hardware protection, to protect the camera and board.

Advanced network features: Jumbo frame, link aggregation, hardware IEEE1588 PTP precise time synchronization.

System Expansion: One host can install multiple boards and connect multiple industrial cameras.

Environment and Certification

Working temperature: 0 ℃~+60 ℃, humidity 5% -90%, no condensation;

Certification: CE/FCC, ICES-003, EN55032, EN61000-6-2, RoHS.

Key technical specifications

Item Parameter

Bus PCI Express x4 Gen3

Ethernet Controller Intel X550-AT2

8-pin RJ45 connector with double screw locking mechanism

Network speed 10G/5G/2.5G/100M (not supported for 10M)

PoE standard IEEE802.3at PoE+, supporting PD automatic recognition; Overcurrent and overvoltage protection; Hardware switch

Advanced Network Jumbo Frame, Link Aggregation, Hardware PTP IEEE1588

Physical dimensions 167.65mm × 111.15 mm

Power supply PCIe slot:+3.3V   2A,+12V   2.1A, PoE maximum 20W;

PCIe+4-pin Molex:+3.3V 2A,+12V up to 6A, PoE up to 60W

Operating system Windows 7/10 64 bit, Linux Ubuntu 12.04 64 bit

Development languages VC++, C #, VB.net; Compatible with Linghua AVS Visual Software SDK

Software support

Operating System: Windows ® 7/10 64bit、Linux Ubuntu12.04 64bit。

Development Interface: Supports C++, C #, VB.net; Compatible with Linghua AVS (ADLINK Vision Software) visual SDK.

PoE management capability: API can control the on/off of PoE power supply and read real-time power status; Equipped with hardware PoE switch, supporting initial power on configuration, and predicting faults in advance.

Recommended hardware configuration

Usage configuration suggestions

Dual channel DDR4 memory, 8GB x 2

Single channel image acquisition with 7th generation Intel i7 processor or above

Dual channel image acquisition with 9th generation Intel i9 processor or above

Ethernet cable CAT6/CAT6a

Ordering Information

PCIe -10GPoE: 2-channel PCI – Express 10GigE Vision PoE+image acquisition card.

Supplementary points

Power supply note: If the total power consumption of the camera is greater than 20W, an external 4-pin Molex power interface must be connected, otherwise the PoE power will be insufficient.

PTP is a hardware timestamp that is suitable for multi camera synchronous triggering scenarios.
