ADLINK PXIe-9908 8-channel four quadrant high-density source measurement unit

Product Overview and Core Features

Channel and output mode

Normal mode: 8 independent SMU channels; Output voltage range -10V~+20V; The maximum power for a single channel is 2W, and the total power for the entire machine’s 8 channels is 16W.

Cascade cascade mode: channels are merged into 4 high-performance channels in pairs; The output voltage is expanded to ± 30V; the maximum for a single channel is 3W, and the maximum for a total of 4 channels is 12W.

Current range: 9-level range: 100 mA, 10 mA, 2 mA, 200 μ A, 40 μ A, 5 μ A, 1 μ A, 100 nA; 10 μ A range only supports measurement and cannot source.

High voltage measurement capability: With a range of 10 μ A, it can measure ± 100V voltage (only for measurement, not for source), enabled by hardware pin En_100V.

performance metrics

Resolution: 18 bit;

Single channel maximum measurement sampling rate: 1 MS/s;

Maximum source output update rate: 100kHz;

Source event delay: 5 μ s.

Hardware function: 4-wire remote detection for each channel (Sense HI/LO); Guard shields the driver output, reduces leakage current, and improves the accuracy of weak current measurement; Support sequence engine, with input trigger and output trigger.

Front panel interface: CN1, 62 pin D-Sub female socket, integrated with all 8-channel Output HI/LO, Sense HI/LO, Guard, 100V enable, external calibration pins.

Cable reminder: Standard cables TB-6221 and ACL-10262 may cause unstable output and measurement at low current levels below 2   mA; Specialized cables and adapter plates must be customized for weak current applications.

Typical Applications

ATE automatic testing system, Mini/Micro LED wafer probe testing, IC testing, laboratory automation, industrial process monitoring.

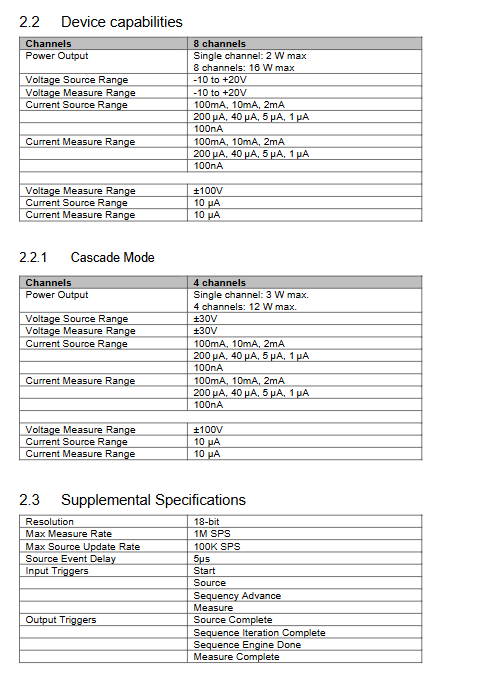

Key electrical specifications

Specification conditions: Environment 25 ± 5 ℃; Preheat for 30 minutes; Calibration cycle of 1 year; The maximum speed of the chassis fan.

Comparison of working modes

Project Normal Mode Cascade Mode

Effective channels 8 channels 4 channels (channels merged pairwise)

Source voltage range -10V~+20V ± 30V

Single channel maximum power 2   W 3   W

The total power of the whole machine is 16   W and 12   W

± 100V measurement only has a range of 10 μ A, only for measurement, cannot source from a range of only 10 μ A, only for measurement, cannot source from a range of only 10 μ A

Range and accuracy (source/absorption accuracy)

Voltage accuracy

Voltage range source output/absorption accuracy

‑10V ~ +20V 0.02% ± 2 mV

± 30V (cascaded) 0.02% ± 2 mV

± 100V (measurement only) 0.02% ± 15 mV

Current accuracy

Current range source/absorption accuracy

100 mA 0.05% ±20 μA

10 mA 0.05% ±2 μA

2 mA 0.05% ±500 nA

200 μA 0.05% ±50 nA

40 μA 0.05% ±10 nA

5 μA 0.05% ±3 nA

1 μA 0.05% ±300 pA

100 nA 0.1% ±100 pA

Trigger the system

Input triggers: Start, Source, Sequence Advance, Measure;

Output trigger: Source Complete、Sequence Iteration Complete、Sequence Engine Done、Measure Complete。

Mechanical, power consumption, environment

Two types of PCB layouts are available: dual slot (40.3mm wide) and single slot (20mm wide); Length 209.9mm, height 130.6mm.

Front panel connector: 62 pin D Sub (CN1).

Power consumption: Typical: 3.3V/2.804   A, 12V/1280.22   mA; Maximum: 3.3V/2.814   A, 12V/4225.45   mA.

Environment: Working temperature 0-50 ℃; Storage -20-70 ℃; Working humidity of 10-90% without condensation; Storage humidity of 5-95% without condensation.

Certification: CE EN55032/55035, FCC Part 15B.

CN1 62 pin D-Sub pin definition

Complete signal for each channel: Output HI (source output positive), Output LO (source output negative), Sense HI remote detection positive, Sense LO remote detection negative, Guard shield driver. Special control pins:

En_100V: ± 100V measurement enable input;

En_100V Source: 100V enable output, short circuit En_100V to enable 100V measurement;

Cal-HI/Cal_LO/Cal_SNSE-HI/Cal_SNSE_LO: only used for external calibration, suspended for normal use;

AGND: Simulated Ground; NC: Empty feet.

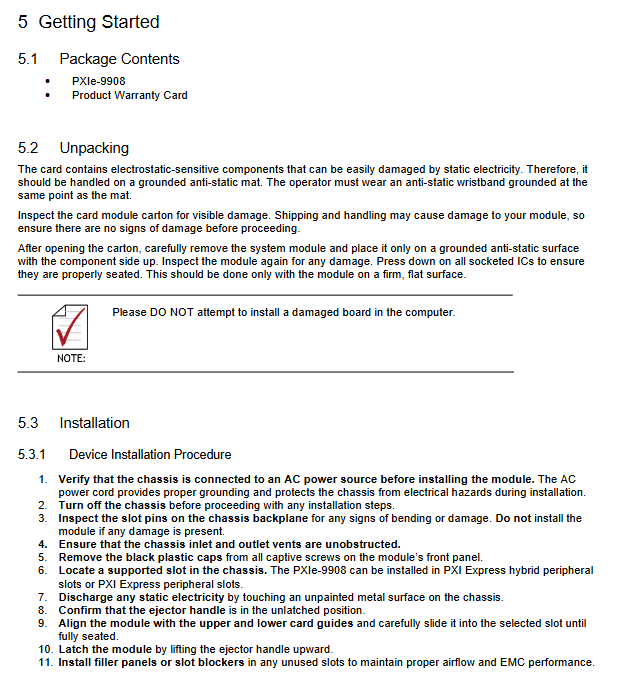

Hardware Installation (Getting Started)

Static sensitive device, full anti-static wristband+anti-static pad.

Open the box and inspect the appearance, do not install damaged modules;

Turn off the power supply of the PXIe chassis and keep the power cord connected for grounding;

Check that the pins of the chassis backplane slot are not bent; Insert the module into the PXIe/PXIe hybrid peripheral slot;

Tighten the pop-up handle and tighten the panel screws; No slot is used to install the blocking plate, ensuring heat dissipation and EMC performance.

Packing list: PXIe-9908 module, product warranty card.

Software Drivers and Development Support

Operating system: Windows 10/11 64 bit, based on Linghua MAPS software platform.

MAPS Core (mandatory)

ACE (ADLINK Connection Explorer) device manager, which identifies hardware and allocates resources;

SFP software front panel, graphical interface for directly configuring channels, setting ranges, output sources, and performing measurements; The interface is divided into hardware information area, channel configuration area, parameter operation area, and message log area.

MAPS/C: C/C++development library, header files API、 Example code.

MAPS/LV: LabVIEW Drivers and Examples.

Download channel: Download the complete SMU_SDK installation package from the PXIe-9908 product page on the official website of Linghua.

Safety instructions

Disassembly and maintenance must be powered off; Stay away from liquids and ensure ventilation and heat dissipation; Touch the high-temperature shell after cooling.

Incorrect models of lithium batteries pose a risk of explosion, and waste batteries should be disposed of in compliance with regulations.

Equipment maintenance is limited to authorized professionals only; The equipment is suitable for controlled environments in computer rooms and not suitable for ordinary public places.

Include California Proposition 65 warning: The product contains multiple carcinogenic and reproductive toxic chemicals.

Compliant with RoHS and WEEE environmental requirements.
