ADLINK SP2- EHL series fanless open panel PC

Core product features

Processor platform: Intel Atom x6000E (Elkhart Lake) series with multiple models of CPUs to choose from; The whole machine has no fan for heat dissipation.

Modular I/O: Unique functional module design (SP-FM, Titan-FM, USB-FM-STD-Full), flexible expansion of peripheral interfaces.

Power supply scheme: default DC12V input; Optional wide voltage 9-36V DC input; Supports 60W PoE PD Ethernet power supply (optional module); Optional power-off backup battery UPS kit to deal with sudden power outages.

Display output: Supports up to 3 channels Display output: Built in panel+DisplayPort+optional USB-C video output, up to 4K@60Hz .

Touch screen: standard capacitive multi touch; Optional resistive touch control; The front panel is IP65 protected.

Operating systems: Win10 IoT Enterprise, Win11 IoT Enterprise, Ubuntu Linux 22.04.2 LTS.

Hardware protection: high ESD tolerance, pre compatible with EMC testing; Support watchdog timer.

Processor selection

CPU model, core thread, main frequency/turbo frequency, TDP GPU unit

Atom x6425E 4-core 2.0GHz/3.0GHz 12W 32EU

Atom x6413E 4-core 1.5GHz/3.0GHz 9W 16EU

Atom x6211E 2-core 1.2GHz/3.0GHz 6W 16EU

J6412 4-core 2.0GHz/2.6GHz 10W 16EU

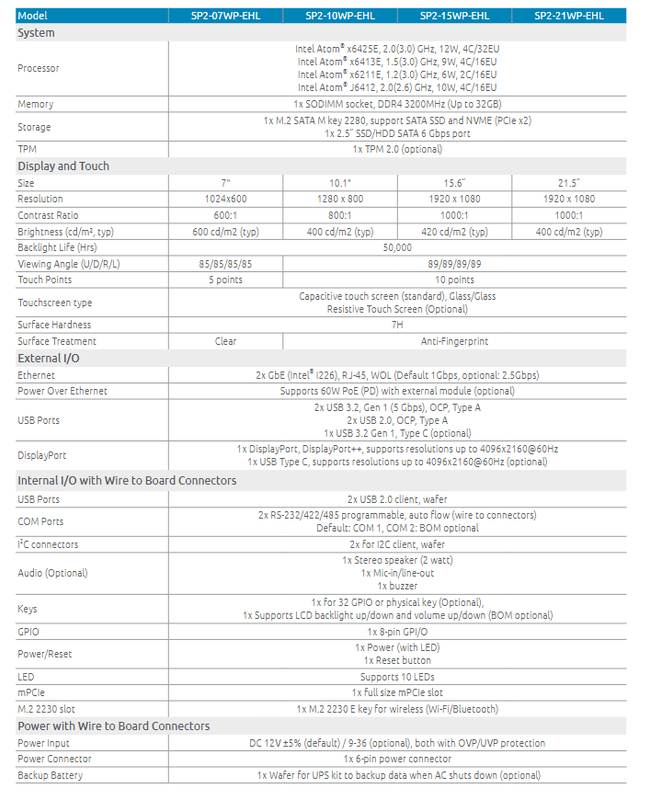

System hardware configuration

Memory: Single SODIMM DDR4-3200 slot, maximum 32GB.

storage

M. 2 M-Key 2280: Supports both SATA SSD and NVMe PCIe x2 SSD simultaneously;

One 2.5-inch SATA 6Gbps, compatible with SSD/HDD.

Safety: TPM2.0 (optional).

Wireless: M.2 E-Key 2230 slot for Wi Fi/BT; There are also full-size mPCIe slots available.

Screen and touch parameters

Model SP2-07WP EHL SP2 10WP EHL SP2 15WP EHL SP2 21WP EHL

Screen size 7 “10.1” 15.6 “21.5”

Resolution 1024 × 600 1280 × 800 1920 × 1080 1920 × 1080

Contrast ratio 600:1 800:1 1000:1 1000:1

Typical brightness cd/m ² 600 400 420 400

Backlight lifespan 50000 hours 50000 hours 50000 hours 50000 hours 50000 hours

Perspective 85/85/85 89/89/89/89 89/89 89/89 89/89 89/89 89/89

Touch point count: 5 points, 10 points, 10 points, 10 points

Touch control type comes with standard capacitor G/G, optional resistive screen standard distribution capacitor G/G, optional resistive screen standard distribution capacitor G/G, optional resistive screen standard distribution capacitor G/G, optional resistive screen

Surface hardness 7H 7H 7H 7H 7H

Surface treatment: Ordinary anti fingerprint and anti fingerprint

Front panel protection level: IP65.

I/O interface

External output I/O

Dual port Intel I226 Gigabit Ethernet RJ45; Default 1Gbps, optional 2.5Gbps; Support WOL network wake-up.

USB：2×USB3.2 Gen1 Type‑A； 2×USB2.0 Type‑A； Optional USB 3.2 Gen1 Type-C (supports video output).

DisplayPort++: up to 4096 x 2160@60Hz .

PoE: Optional external module for 60W PoE PD power supply.

Onboard internal pin interface (wire to board connector)

2-channel programmable serial port COM: RS-232/422/485, supporting automatic flow control;

2-channel I ² C;

Audio: 2W stereo speaker, microphone input/line output, buzzer;

GPIO: 8-channel GPIO; External physical buttons, backlight brightness adjustment, and volume adjustment are available;

Power button, reset button, multi-channel LED indicator light interface;

2 USB 2.0 device ports;

UPS backup battery interface (optional power-off backup kit).

power supply

Default DC 12V ± 5%; Optional wide voltage 9-36V DC; Equipped with OVP/UVP overvoltage and undervoltage protection;

6-pin line to board power socket.

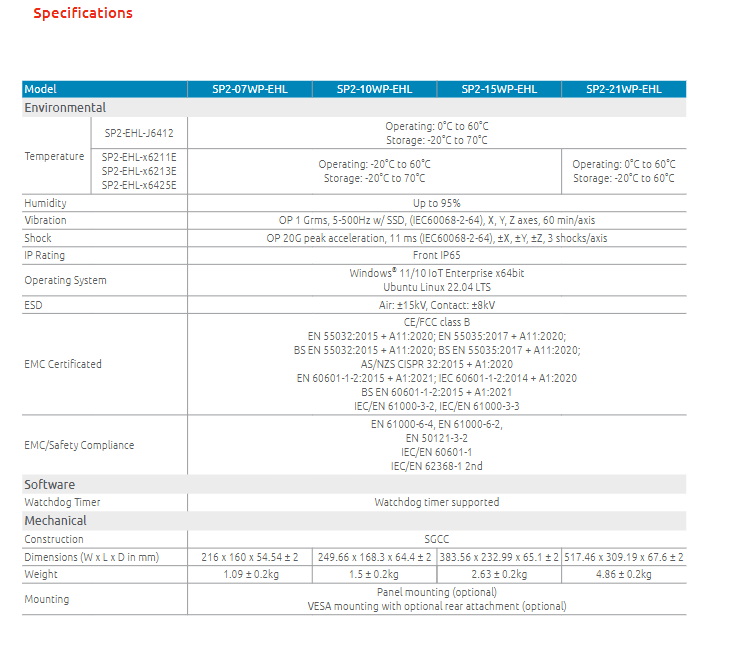

Environment, Machinery, and Compliance

environmental conditions

Item Parameter

Working temperature J6412/x6413E: 0-60 ℃; x6211E：‑20~60℃； x6425E：0‑60℃

Storage temperature -20~70 ℃

Humidity 5-95% without condensation

Vibration 1Grms 5-500Hz, three-axis, equipped with SSD, 60min per axis (IEC60068-2-64)

Impact 20G peak, 11ms pulse, 3 times in each positive and negative direction of the three-axis (IEC60068-2-64)

ESD air ± 15kV, contact ± 8kV

Mechanical dimensions and weight

Model Size (W × D × H mm) Weight Installation Method

SP2-07WP-EHL 216 × 160 × 54.54 1.09 ± 0.2 kg panel embedded installation; Optional VESA wall mounted (with back cover accessories)

SP2-10WP-EHL 249.66 × 168.3 × 64.4 1.50 ± 0.2 kg panel embedded installation; Optional VESA wall mounted (with back cover accessories)

SP2-15WP-EHL 383.56 × 232.99 × 65.1 2.63 ± 0.2 kg panel embedded installation; Optional VESA wall mounted (with back cover accessories)

SP2-21WP-EHL 517.46 × 309.19 × 67.6 4.86 ± 0.2 kg panel embedded installation; Optional VESA wall mounted (with back cover accessories)

The shell material is SGCC galvanized steel plate.

Certification compliance

EMC：EN55032/55035、 Medical EN60601-1-2, Railway EN50121-3-2; Safety: IEC/EN 62368-1, IEC/EN 60601-1.

Ordering and selecting accessories

Machine model: available in 10.1/15.6/21.5 inches, J6412/x6413E CPU, 4GB memory, with IO, 12V version; The 7-inch model SP2-07WP-EHL is the base model.

Major categories of accessories

Power adapter, power harness;

Panel installation buckle kit (divided into 7/10.1/15.6/21.5 inches);

Back cover shell;

Wi Fi/BT kit (Intel AC9260);

Speaker and buzzer;

Various types of wiring harnesses: COM port GPIO、I²C、USB、 Power/reset button wiring harness;

Function expansion modules: SP-FM, Titan-FM, USB-FM-STD-Full, enabling flexible I/O expansion.

​Software Capability

Support watchdog timer;

Supports Windows 10/11 IoT Enterprise x64, Ubuntu 22.04 LTS;

Can be paired with a backup UPS battery kit to save data in case of power failure.

Note: This series is an open frame panel machine, suitable for embedding in equipment cabinets for HMI human-machine interface; Supports panel buckle installation, and supports standard VESA wall mounting with optional back cover.
