KUKA Robots KR CYBERTECH-3 HW Assembly Instructions

HW=Hollow Wrist hollow wrist, model: KR   25   R1840-3   HW, KR   35   R1840-3   HW; compatible controller KR   C5   S6/S7; Support installation at any angle (± 180 °) for ground, wall, and ceiling; The hollow wrist is internally connected, suitable for arc welding and pipeline routing. The manual fully covers product instructions, safety, technical parameters, project planning, transportation, installation and operation, maintenance, repair, decommissioning, storage and disposal, options, and appendices.

Product Description

Robot system composition: robotic arm body, KR C5 controller, power/data cables, smartPAD-2 teaching pendant, software, tools and options.

Mechanical arm body structure: 6-axis series articulated robot; The assembly includes a hollow wrist Hollow Wrist, a connecting rod arm, a rotating column, a base frame, and a complete set of electrical wiring harnesses.

A1-A3 is equipped with mechanical terminal hard blocks, which only provide equipment protection and cannot protect personnel; Personnel protection relies on the SafeRobot safety function of the controller, or by selecting the A1-A3 adjustable mechanical shaft limit.

Hollow wrist core features: A4/A6 have through holes, allowing welding guns and process pipelines to pass through the inside of the wrist, reducing external pipeline entanglement interference; The A4-A6 motor is arranged inside the arm body, and the transmission shaft transmits torque.

The rear A1 interface of the base integrates RDC unit; All motors and signal cables use Han Yellock quick plug connectors.

Permitted use and prohibited misuse

✅ Allow: handling, assembling, arc welding and other workpiece processing, strictly adhering to environmental conditions and maintenance cycles.

❌ Prohibited: climbing, carrying people and animals, outdoor activities, explosion-proof areas, radioactive activities, and underground operations; Unauthorized use will result in the loss of warranty.

Robots belong to partially completed machinery and cannot be put into operation independently; The system integrator completes the entire system, issues an EC conformity declaration, and affixes the CE mark.

Available options: Release device for brake release, transport fork slot, lifting ring, A1-A3 mechanical shaft limit, S310 centering base, S260/S310 reinforcement frame.

Technical Data (KR   25   R1840-3   HW/KR   35   R1840-3   HW)

Basic Overview of Two Models

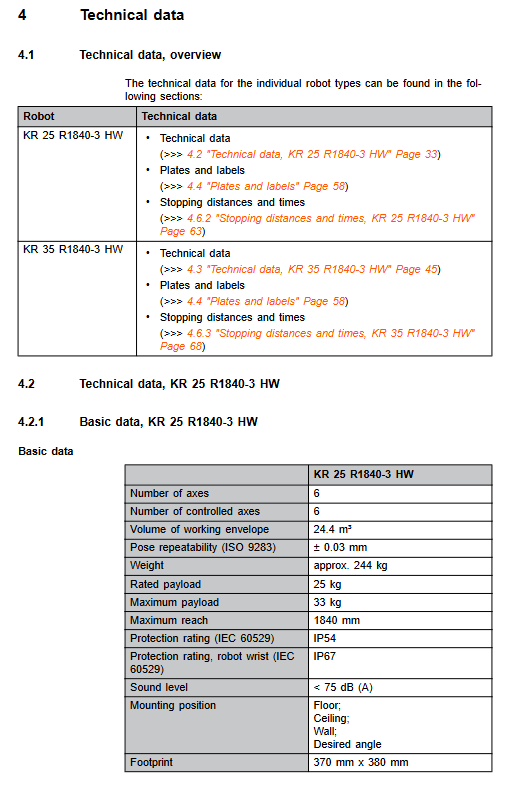

Parameters KR   25   R1840-3   HW KR   35   R1840-3   HW

Number of axes: 6 axes, fully controlled. 6 axes, fully controlled

Rated load 25   kg 35   kg

Maximum load 33 kg 47 kg

Maximum reach distance 1840   mm 1840   mm

Repetitive positioning accuracy ISO 9283 ± 0.03 mm ± 0.03 mm

The self weight of the body is about 244 kg

Protection level body IP54, wrist IP67 Body IP54, wrist IP67

Noise<75 dB (A)<75 dB (A)

Installation method: Ground, wall mounted, suspended ceiling, with any inclination angle of ± 180 °. Ground, wall mounted, suspended ceiling, with any inclination angle of ± 180 °

Wrist flange ZH25-HW hollow flange ZH35-HW hollow flange

Compatible controllers KR   C5   S6/S7 KR   C5   S6/S7

Operating temperature range: 0-45 ℃; Storage -25~60 ℃, operation: 0~45 ℃; Storage -25~60 ℃

Axis parameters: Range of motion for each axis of each model, maximum axis speed, Mastering zero position; Tilt installation will limit the range of motion of A1 axis, and the actual installation tilt angle must be filled in by WorkVisual, otherwise the robot will be damaged by overload or accidental movement; Attached are a two-dimensional work envelope and an A1 axis tilt stroke limit curve graph.

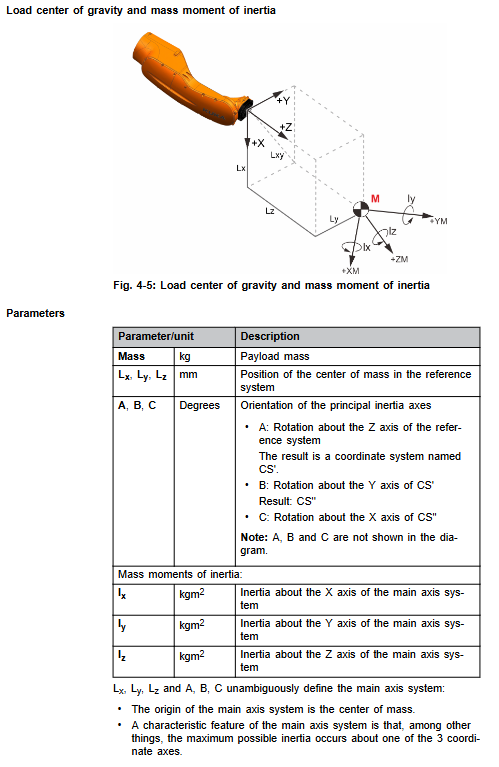

Load section: Hollow wrist ZH-HW flange drawing; Load center of gravity, moment of inertia, load curve diagram; Distinguish between normal operation and emergency stop conditions, flange bearing axial force, radial force, overturning moment, and torsional moment; Provide installation holes and allowable loads for the large arm, connecting rod arm, and rotating column that allow for additional loads.

Base load: Output vertical force, horizontal force, overturning moment, and A1 torque for ground, ceiling, and wall mounted working conditions respectively; The structural verification must take the maximum value of the emergency stop condition to prevent overturning and falling.

Cable parameters: motor cable XD30, data cable XF31; The cable can be selected in lengths of 2.7-50 meters, with a maximum total length of 50 meters, and can be extended up to once; Specify the minimum bending radius; Double protection grounding; Complete A1 base interface pin diagram.

Stop distance and stop time: distinguish between STOP0 cutting off the brake (with high impact, use as little as possible) and STOP1 safe stop; Two robots output different arm extension ratios (33%/66%/100%), program magnification POV, A1-A3 stopping angles and stopping time curves under different loads; The brake has wear and tear, it is recommended to conduct an annual on-site review of the actual stopping distance.

Refer to KUKA Xpert for information on the body nameplate and REACH regulations.

Planning and Design

Reminder for accelerated wear conditions: long-term temperature limit operation, corrosive dust environment, continuous performance limit, single axis high duty cycle, monotonic reciprocating short stroke, wrist long-term static, external process force; Consult KUKA for the above working conditions to shorten the maintenance cycle; The body comes with overheating and overload monitoring, and automatically shuts down when exceeding the limit.

Two base schemes

Centering option base S310: concrete floor; Concrete grade C20/25; Bottom plate, chemical anchor bolt, positioning pin; It is prohibited to add a soundproof leveling layer between the base and concrete, and a foundation section drawing should be attached.

Rack mounted installation: customer steel structure, KUKA linear slide table; 4 M20 bolts+2 locating pins; Strictly follow the drawing requirements for the flatness, roughness, and structural stiffness of the installation surface.

Cable planning: The minimum static bending radius for motor cables is 150   mm, and for signal cables it is 60   mm. Power cables and signal cables are laid separately in metal cable trays to ensure EMC electromagnetic compatibility; Double protection grounding; Cable layout eliminates tripping risks; Cables are prohibited from withstanding tensile forces.

A1 Base Interface Definition: Motor X30, Data X31, Mastering Calibration X32, External Shaft XP7.1/XP8.1, I/O Interface X76 Drawing.

Transportation

Forced transportation posture (must be maintained throughout the entire process, and the posture must not be changed before being fixed to the base to prevent tipping)

A1=0°，A2=‑125°，A3=177°，A4=90°，A5=90°，A6=0°

Shipping Method

Forklift: Optional fork slots must be installed;

Crane: using M12 lifting rings, with lifting points distributed around rotating columns and base frames;

Prohibit lifting from non-standard lifting points; Avoid impact and vibration; Dismantle the lifting ring/fork groove in place; Provide the overall dimensions and center of gravity position drawings for the transportation of the entire machine.

Startup Debugging and Restarting

Distinguish between two installation forms: floor mounted with fixed base and rack mounted (floor/wall/ceiling) installation.

Prerequisite: The robot is in a transport position, the base steel structure is completed, and the lifting equipment is in place.

General installation steps

Lift into place and install the positioning pin;

M20 bolts are tightened diagonally in multiple stages to the specified torque;

Connect double protection grounding (torque 15   Nm);

Connect motor cable XD30 and data cable XF31; The clicking sound of the connector indicates locking, and the lock buckle can rotate 90 degrees to prevent accidental unlocking;

Fill in the actual installation posture and inclination angle of the robot using WorkVisual software;

Install tools, power on, jog in T1 mode, perform axis Mastering zero calibration, and perform overall functional testing.

After 100 hours of operation, all anchor bolt torques must be rechecked.

Provide a complete schematic diagram of the wiring of KR-C5-S motor cables, data cables, and grounding cable pins.

Maintenance

Only allow maintenance projects recorded in the manual to be executed; The remaining repairs will be entrusted to KUKA authorized personnel; Emergency stop, lock and power off before maintenance; The maintenance cycle is shortened when the operating oil temperature exceeds 60 ℃; This series does not have a hydraulic nitrogen balance cylinder.

Maintenance cycle summary table

Periodic homework content consumables

10   000   h A1 cable package coated with Optitemp RB2 grease 0.08 kg

10   000   h A4 cable package coated with Optitemp RB2 grease 0.06   kg

20   000   h or at the latest 5 years, replace all gearboxes with Optigear Synt. ALR   150 gear oil; Sealant

Suggest KUKA to conduct a comprehensive on-site inspection of the entire machine after 7 years or changes in operating conditions.

Key maintenance process

A1/A4 cable package lubrication: Remove the corresponding cover plate, visually inspect the corrugated tube for damage, and apply lubricating grease with a brush; Restore the cover plate; Tap the corresponding axis to evenly distribute the grease.

General rules for gearbox oil change: When the gearbox is at operating temperature, drain the oil; Measure the actual amount of oil released; The gearbox must be flushed if the oil release rate is less than 70% of the rated value; Rinse twice with less than 50%, and move the entire stroke during rinsing; Magnetic plug inspection for metal debris; Tighten the plug according to the specified torque; Oil change completed T1 mode jog operation, check for leaks.

Initial oil filling amount for each gearbox: A1=1.70   L; A2=1.10   L; A3=0.40   L; A4=0.50   L; A5/A6=1.10   L.

Robot cleaning: Prohibit high-pressure water guns and direct blowing of compressed air on bearing seals; Use water-soluble neutral cleaning agents; Power off operation to prevent liquid from entering the electrical chamber.

Maintenance

The manual only describes the prerequisites and safety regulations for maintenance operations; Complex disassembly and assembly operations such as motors and wrist assemblies must be completed by KUKA authorized personnel.

General safety maintenance: Power off, lock the main switch, wait for 5 minutes for high-voltage discharge; Before disassembling the motor, the corresponding shaft must be mechanically locked to prevent the arm from accidentally falling;

Repairs must use KUKA original spare parts; Complete verification of all safety functions after maintenance is completed.

Provide an overview of the electrical wiring of the entire machine and an explanation of the disassembly of wiring harnesses (A1-A4, A5-A6).

Suspension, Storage, and Disposal

Shutdown disassembly: The robot moves to the designated transport posture; Install lifting rings and slings; Disconnect all cables; Lift the crane off the main body.

Storage: Maintain transportation posture, clean the robot, and do a good job of rust prevention and protection; The storage environment should be dry, dust-proof, avoid condensation, and meet the storage conditions of temperature and humidity; Electrical interface sealing protection.

Scrap disposal: Classified by material (cast steel, cast aluminum, copper cable, electronic components, various plastics, lubricants, sealants), and disposed of according to local environmental regulations.

Options

Release device: manual movement of the robotic arm in power-off state; Provide a complete explanation of the installation process and safety constraints for a non actuated mobile robotic arm.

S310 centering base, S260/S310 reinforced frame, fork slot transport component, lifting ring, A1-A3 mechanical shaft limit.
