ADLINK MXE-5400 series fanless embedded industrial computer

Product Overview and Core Positioning

The MXE-5400 is the fourth generation Intel Haswell Core quad core fanless compact industrial control host launched by Linghua. It features high-performance, low-power consumption, wide temperature reinforcement, video image processing, remote security management, and multi interface expansion. It is designed for harsh environments such as industrial, automotive, security, and transportation, and continues the Matrix E series cable free, high anti vibration mechanical architecture. The entire machine has undergone rigorous industrial reliability testing.

Core highlights and characteristics

Computational and video processing capabilities

Equipped with 4th generation Core i7/i5/i3 embedded processors, paired with Intel QM87 chipset;

Support Intel Quick Sync video hard coding and decoding, combined with Linghua MSDK+tool, greatly improving the efficiency of image and video business processing;

Up to three independent outputs (DVI-I+2 channels of DisplayPort), meeting the needs of multi screen monitoring and in car multi screen.

Enterprise level security and remote management

Native support for Intel vPro suite: iAMT 9.0, TPM 1.2 trusted encryption, TXT trusted execution, Intel VT virtualization;

Built in Linghua’s self-developed SEMA 2.2 intelligent embedded management agent, capable of real-time remote monitoring of system status, hardware health, encrypted channel remote control, and full scheduling of system resources.

Rich IO and wireless expansion

Standard configuration includes multiple network ports, serial ports, high-speed USB, isolated digital IO, and audio;

Dual mPCIe expansion slots (one of which can be switched to mSATA solid-state via jumper), paired with a USIM card slot, can expand WiFi/Bluetooth/3G/GPS wireless communication;

Rich storage interfaces, supporting multiple disk positions and RAID 0/1/5 data redundancy.

Industrial reinforcement wide temperature fanless design

Pure passive cooling fanless structure, standard wide temperature version supports stable operation at sub zero temperatures;

No cable internal structure, high resistance to vibration/impact, wide voltage DC input, suitable for harsh working conditions in vehicles, outdoors, and production lines.

Segmented models and processor configurations (ordered models)

There are three hardware specifications in the series that are of the same origin, with only the CPU being distinguished:

MXE-5401: Intel i7-4700EQ 2.4GHz quad core

MXE-5402：Intel i5-4400E 2.7GHz

MXE-5403：Intel i3-4100E 2.4GHz

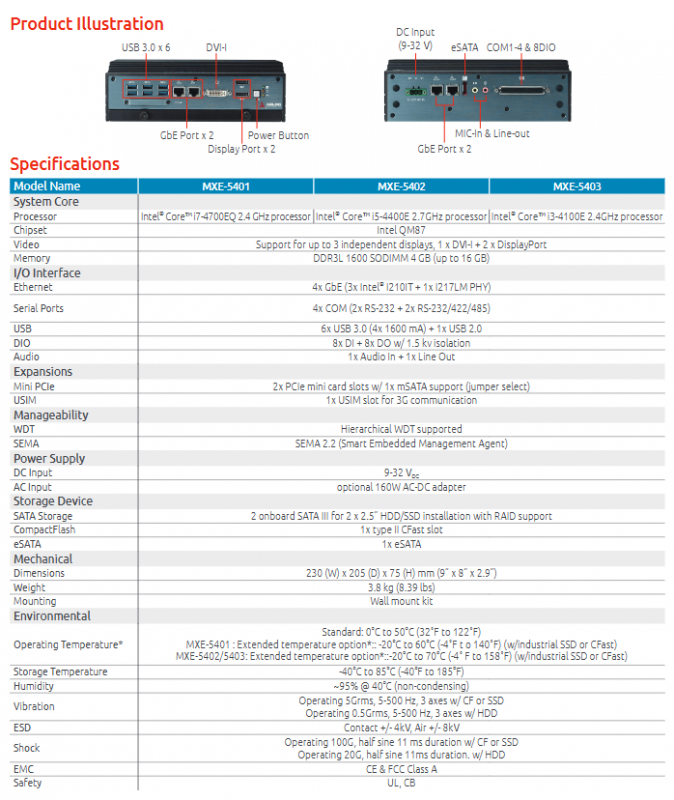

Complete hardware specifications and parameters

1. Core system platform

Chipset: Intel QM87

Memory: DDR3L 1600 SODIMM, standard 4GB, maximum upgradable 16GB

Display output: 3 independent displays (1 x DVI-I+2 x DP)

Watchdog: Supports layered hardware WDT

2. Input/output interface I/O

Network port: 4-channel Gigabit Ethernet (3 x Intel I210IT+1 x I217LM)

Serial port: 4-channel COM, 2-channel standard RS232, 2-channel switchable RS232/422/485

USB: 6 x USB 3.0 (4 channels support 1600mA high current power supply)+1 built-in USB 2.0

Digital IO: 8-way isolated DI+8-way isolated DO, 1.5kV electrical isolation

Audio: MIC input+Line out line output

External storage: 1 eSATA; 1 Type II CFast slot

3. Expansion slot

2 mini PCIe slots, 1 jumper switchable mSATA solid-state drive;

1-way USIM card slot, used for 3G cellular communication module.

4. Storage system

2-channel onboard SATA III 6Gbps interface, capable of installing 2 2.5-inch HDDs/SSDs, supporting RAID0/1/5;

Supports multiple types of storage expansion including mSATA, CFast, and eSATA.

5. Power specifications

DC input: wide voltage 9-32V DC (suitable for vehicle 24V and industrial 24V power supply);

Optional accessories: 160W industrial grade AC-DC power adapter.

6. Mechanical dimensions

Dimensions: Width 230mm x Depth 205mm x Height 75mm

Whole machine weight: 3.8kg

Installation method: Standard wall mounted installation kit

Environmental reliability index (industrial grade protection)

1. Working temperature (standard version/wide temperature optional version)

Standard model: 0 ℃~50 ℃;

Wide temperature options:

MXE-5401 (i7 model): -20 ℃~60 ℃ (requires industrial SSD/CFast)

MXE-5402/5403 (i5/i3 models): -20 ℃~70 ℃ (requires industrial SSD/CFast)

Storage temperature: -40 ℃~85 ℃

2. Temperature, humidity, and resistance to mechanical stress

Humidity: Maximum 95% RH at 40 ℃, no condensation;

Vibration: 5Grms (5-500Hz three-axis) when working with SSD/CFast; Equipped with mechanical hard drive, only 0.5Grms;

Impact: Solid state storage operating condition 100G (half sine 11ms); Mechanical hard drive only 20GB;

ESD electrostatic protection: contact discharge ± 4kV, air discharge ± 8kV;

Certification: CE, FCC Class A electromagnetic compatibility; UL and CB safety certifications.

Optional accessory list

Memory upgrade: 8GB/16GB DDR3L low-voltage memory;

Storage options: 500GB SATA mechanical hard drive (0-50 ℃), 32/64GB MLC industrial SSD (-20~70 ℃);

Power supply: 160W wide temperature industrial AC-DC adapter;

Wireless kit: 3G/WiFi/Bluetooth/GPS module kit;

Wide temperature machine selection: wide temperature screening of the whole machine to expand the low-temperature working range.

Supporting operating systems

Windows：Windows 7 / Windows 7 Embedded；

Linux: Customized distributions can be provided as needed.

Target application industry

Intelligent Transportation System (ITS);

Digital security video surveillance;

Key infrastructure building management and control;

Building automation;

Car multimedia entertainment host;

Factory/mechanical equipment automation production line controller.
