ENOTEC OXITEC ® 500E Extraction Oxygen Analyzer

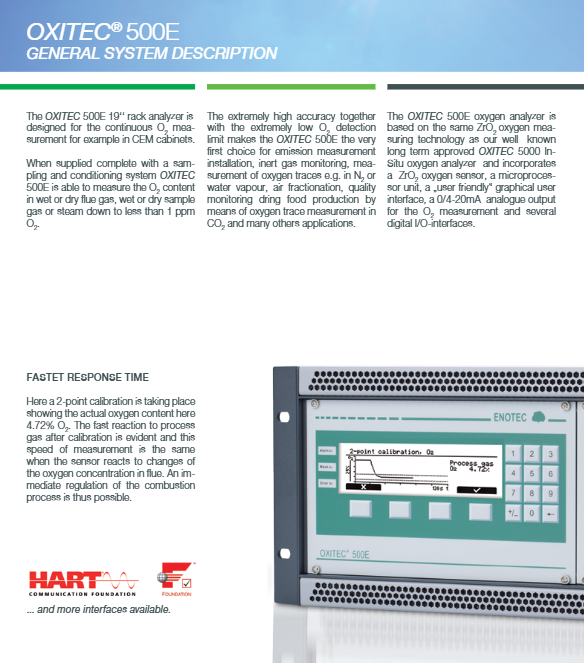

Product Overview

Equipment form: 19 inch 4U rack mounted analyzer, compatible with CEM continuous emission monitoring cabinet.

Measurement principle: zirconia ZrO ₂ sensor uses the same sensing technology as the mature OXITEC 5000 in-situ oxygen analyzer; Configure microprocessor and graphical human-machine interface.

Measurement capability: Equipped with a sampling preprocessing system, it can measure wet/dry flue gas, sample gas, and steam, with a minimum detection limit of oxygen content less than 1 ppm.

Typical application scenarios

Smoke emission monitoring CEM;

Inert gas monitoring (detection of trace oxygen in nitrogen and water vapor);

Air separation process;

Food production, monitoring of trace oxygen quality under carbon dioxide atmosphere;

Closed loop control of combustion process.

Core advantages: high measurement accuracy, extremely low detection limit; Fast response speed (<1s); Support two-point calibration; Can quickly respond to changes in process gases and achieve real-time combustion regulation; Equipped with calibration history, sensor remaining life display, and self-monitoring function; The airtight sensor structure has a long service life.

Hardware interface and output

Analog output: Oxygen measurement value, 0/4-20 mA active output, electrically isolated DC.

Digital relay output (relay contacts): fault status, maintenance reminder, range switching, measurement limit 1, measurement limit 2; Maximum 24V AC/DC, maximum 1A resistive load.

Digital input: Optocoupler isolated DC input, used for external range selection; 0-24 VDC.

Communication: Standard basic communication; Optional HART and Fieldbus Foundation fieldbus; RS232/RS485 interface.

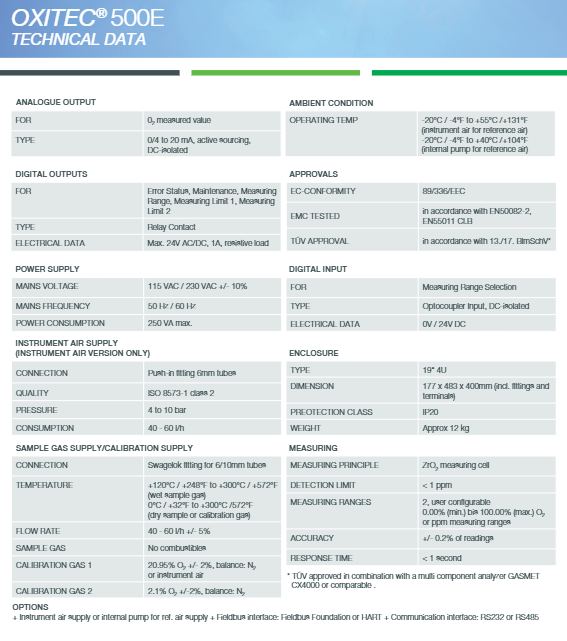

Technical parameters

Electricity

Power supply: 115VAC/230VAC ± 10%, 50/60Hz; maximum power consumption of 250VA.

Gas path conditions

Instrument Air Version (External Instrument Air)

Quick connector 6mm trachea; Air source ISO 8573-1 Class 2; Pressure 4-10 bar; Gas consumption is 40-60 L/h.

Built in pump reference air version: The internal pump obtains reference air.

Sample gas/calibration gas interface: Swagelok connector compatible with 6/10mm pipeline

Sample gas temperature: Wet sample gas+120~+300 ℃; Dry sample gas/calibration gas 0~+300 ℃;

Sample gas flow rate 40-60 L/h ± 5%; The sample gas is prohibited from containing flammable components;

Calibration gas 1:20.95% O ₂ ± 2%, balance gas N ₂/instrument air;

Calibration gas 2:2.1% O ₂ ± 2%, equilibrium gas N ₂.

environmental conditions

Working temperature: External instrument air version -20…+55 ℃; Built in pump version -20…+40 ℃;

Protection level IP20; Appearance 19 “4U: 177  × 483  × 400   mm; Weight approximately 12   kg.

Measurement performance

Principle: ZrO ₂ zirconia battery;

Detection limit:<1 ppm;

Two groups of users can configure the range: 0.00%~100.00% O ₂ or ppm range;

Accuracy: ± 0.2% of the reading;

Response time:<1 second.

Compliance Certification

EC compatible with 89/336/EEC; EMC complies with EN50082-2 and EN55011 Class B;

T Ü V certification, meeting Germany’s 13.17.BlmShV (requires GASMET CX40000 or equivalent multi-component analyzer).

Optional configuration

Two options for air supply: external instrument air; Built in pump extracts reference air;

Fieldbus: HART/Fieldbus Foundation;

Serial interface RS232/RS485.

System features

Extremely high measurement accuracy

Save complete calibration history records

The display screen shows the expected remaining life of the sensor

Structure of airtightness sensor

Whole machine self-monitoring and diagnosis

Long service life
